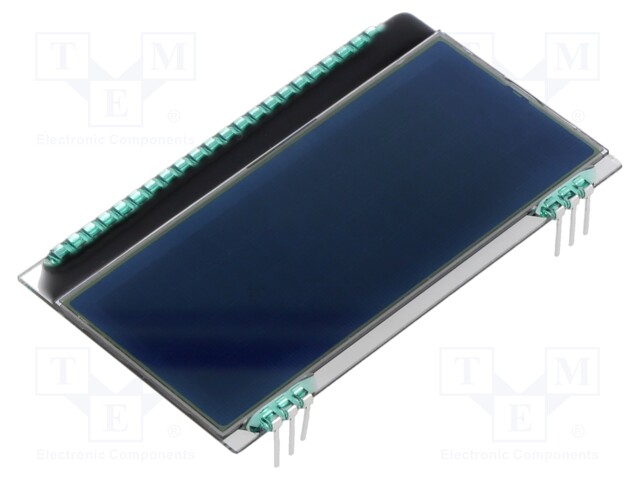

Display: LCD; alphanumeric; STN Negative; 20x4; black; 66x38.1mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EA DOGM204S-A
    Manufacturer: ELECTRONIC ASSEMBLY
    Manufacturer code: EA DOGM204S-A
    • Supply voltage
    • Contacts pitch
    • Interface
    • Interface
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Number of characters (columns x lines)
    • Kind of display
    • Display technology
    • Backgr. colour
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Supported character set
    • Supported character set
    • Supported character set

    24.50 € 24.50 € (wo VAT) 24.5 EUR

    24.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: LCD; alphanumeric; STN Negative; 20x4; black; 66x38.1mm

    Supply voltage 3.3...5V DC
    Contacts pitch 2.54mm
    Interface 8bit BUS, I2C, SPI
    Number of pins 22
    Dimensions 66x38.1mm
    Type of pin configuration 1x22
    Number of characters (columns x lines) 20x4
    Kind of display alphanumeric
    Display technology STN Negative
    Backgr. colour black
    Window dimensions (H x W) 63x26mm
    Kind of controller SSD1803A
    Type of display LCD
    Supported character set Cyrillic, Europe, Japanese
