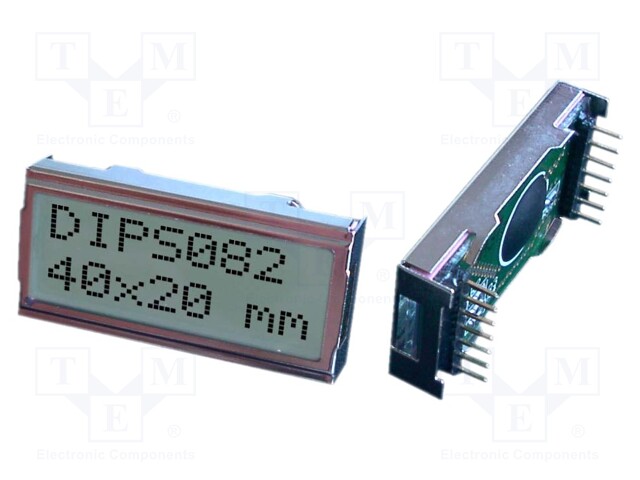

Display: LCD; alphanumeric; STN Positive; 8x2; 40x20mm; PIN: 14

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EA DIPS082-HN
    Manufacturer: ELECTRONIC ASSEMBLY
    Manufacturer code: EA DIPS082-HN
    • Supply voltage
    • Contacts pitch
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Number of characters (columns x lines)
    • Kind of display
    • Display technology
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Digit height
    • Character width
    • Supported character set
    • Supported character set

    17.09 € 17.09 € (wo VAT) 17.09 EUR

    17.09 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: LCD; alphanumeric; STN Positive; 8x2; 40x20mm; PIN: 14

    Supply voltage 2.7...5V DC
    Contacts pitch 2.54mm
    Interface 8bit BUS
    Number of pins 14
    Dimensions 40x20mm
    Type of pin configuration 2x7
    Number of characters (columns x lines) 8x2
    Kind of display alphanumeric
    Display technology STN Positive
    Window dimensions (H x W) 36.3x13.9mm
    Kind of controller HD44780
    Type of display LCD
    Digit height 5.01mm
    Character width 3.12mm
    Supported character set English, Japanese
