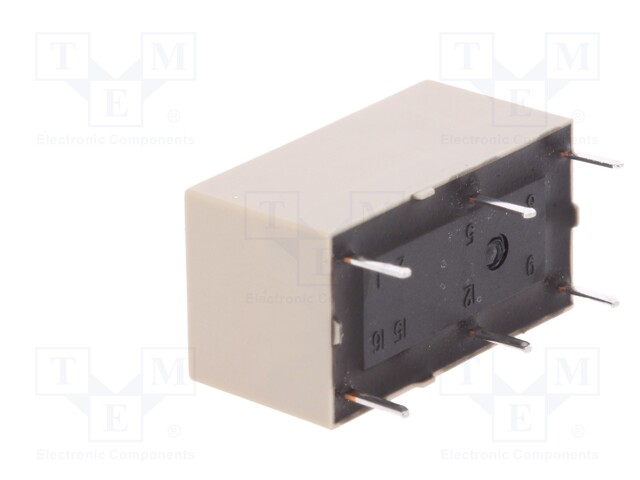

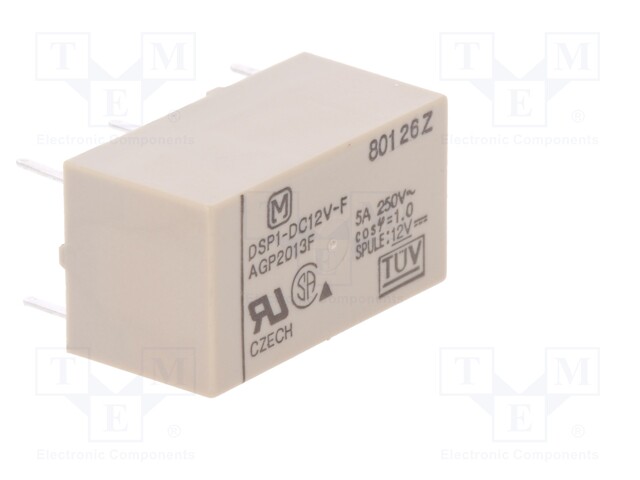

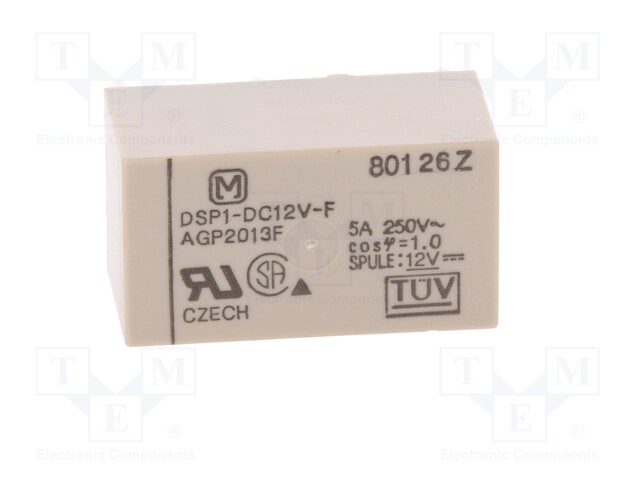

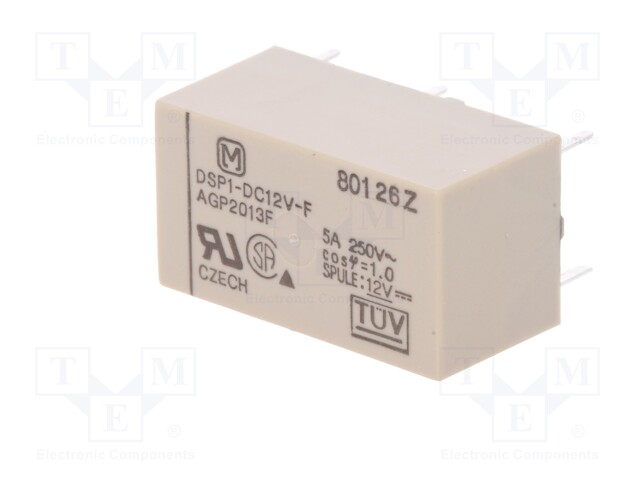

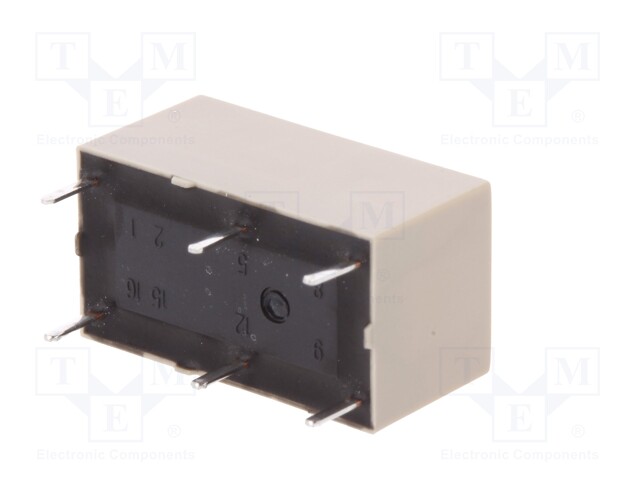

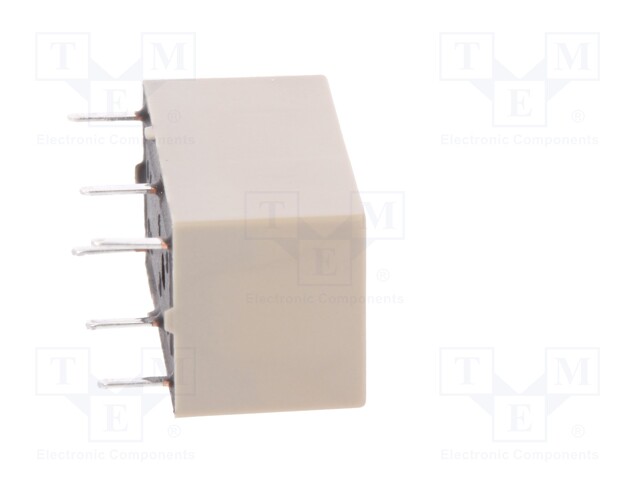

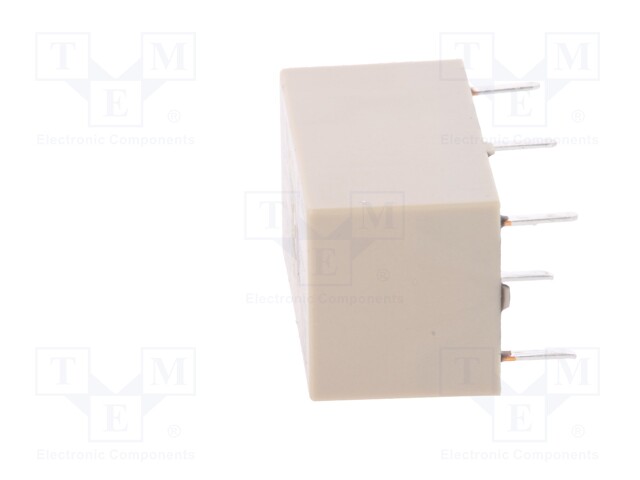

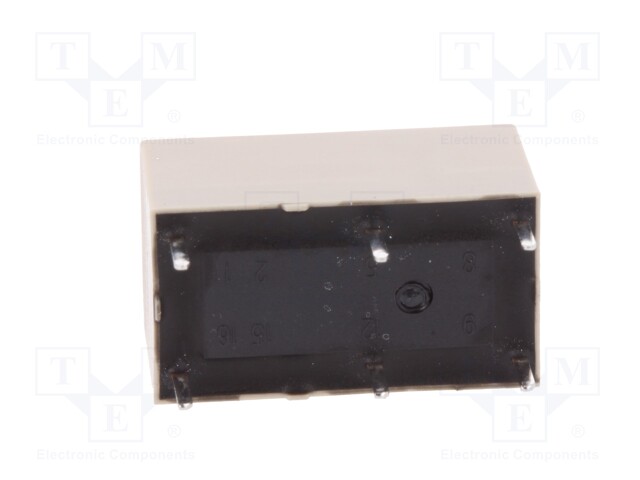

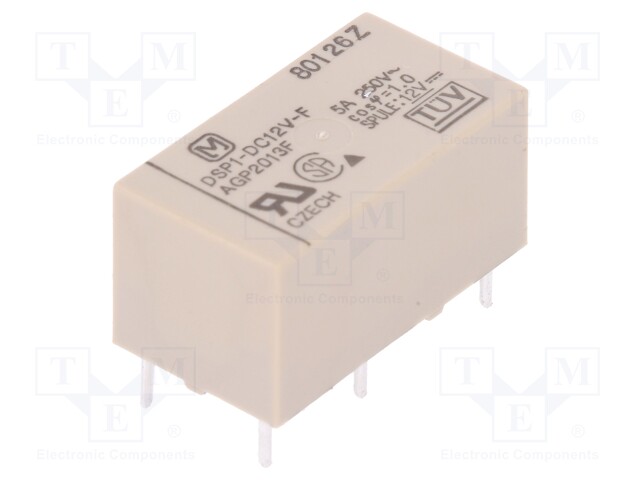

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 480Ω
Multiples:
1.0
Minimum quantity:
1.0
Product code:
DSP1-DC12V-F
Manufacturer: PANASONIC
Manufacturer code: DSP1-DC12V-F
Product downloads
Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 480Ω
Mounting | PCB, socket |
Operating temperature | -40...65°C |
Contact material | AgSnO<sub>2</sub> |
Body dimensions | 20.2x11x10.5mm |
Mechanical durability | 50000000cycles |
Switched voltage | max. 125V DC, max. 250V AC |
Coil resistance | 480Ω |
Rated coil voltage | 12V DC |
Contacts configuration | SPST-NO + SPST-NC |
AC contacts rating @R | 5A / 250V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil voltage min. | 9.6V DC |
Coil power consumption | 300mW |
Relay series | DS-P |
Coil current | 25mA |
