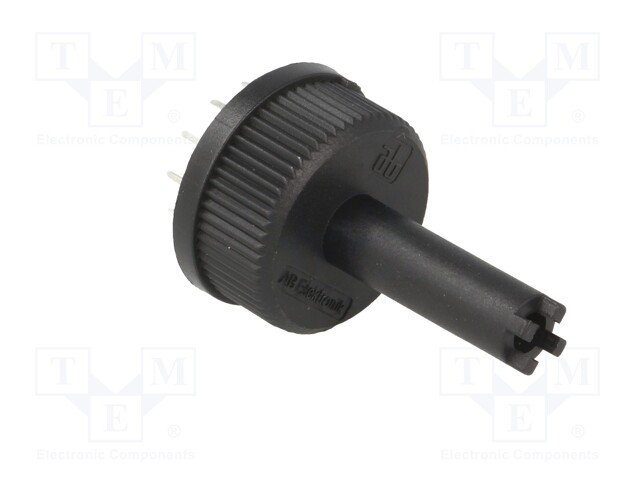

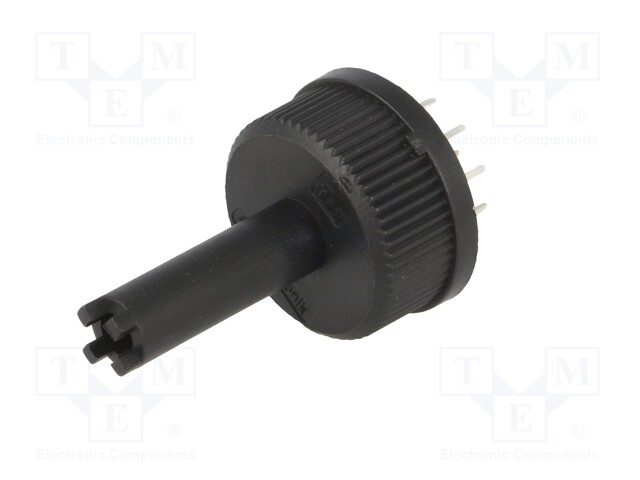

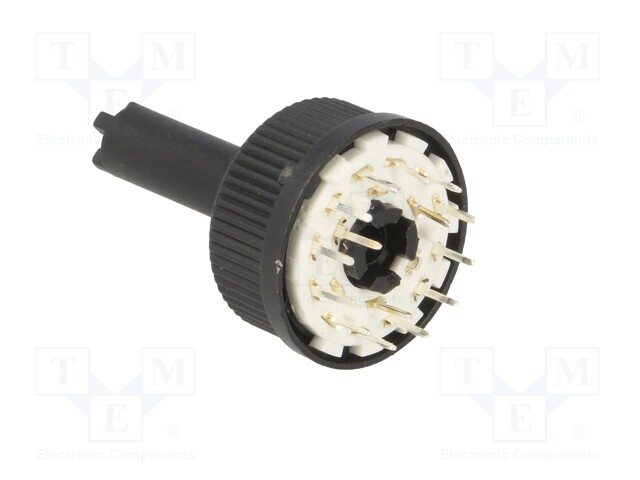

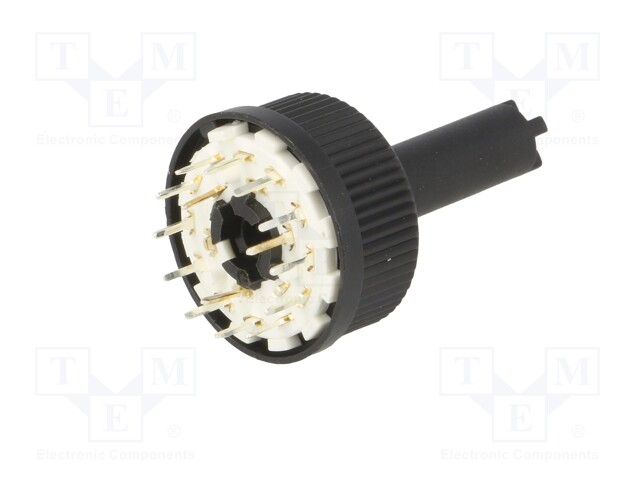

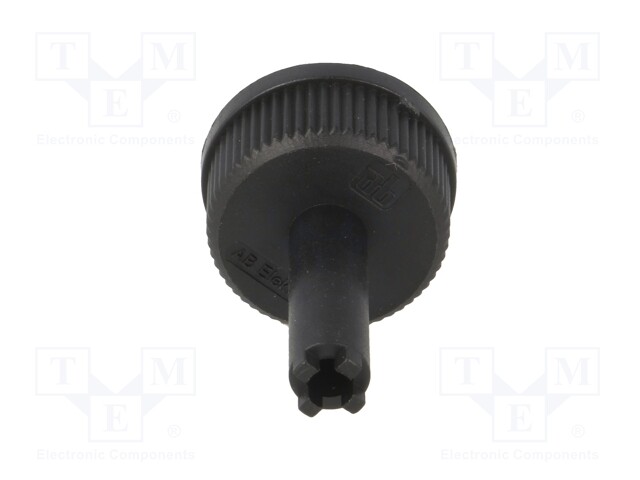

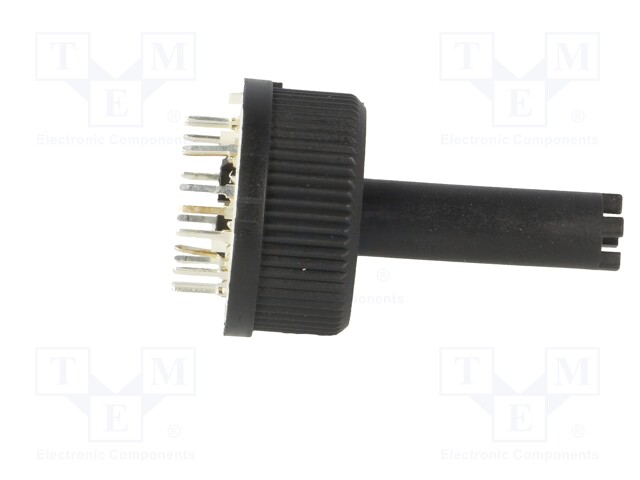

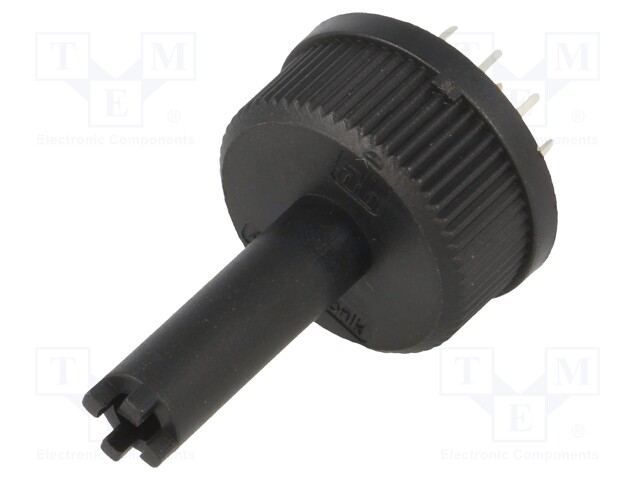

Switch: rotary; Pos: 4; 0.13A/150VAC; 0.13A/150VDC; Poles number: 3

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DRM3X4
    Manufacturer: AB Elektronik
    Manufacturer code:
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body dimensions
    • Diameter
    • Mechanical durability
    • Min. insulation resistance
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Switching torque
    • Indexed positions

    16.88 € 16.88 € (wo VAT) 16.88 EUR

    16.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: rotary; Pos: 4; 0.13A/150VAC; 0.13A/150VDC; Poles number: 3

    Operating temperature -30...85°C
    Type of switch rotary
    Contact plating silver plated
    Number of positions 4
    Leads for PCB
    Contact material brass
    Max. contact resistance: 25mΩ
    Body dimensions Ø19.4x9.2mm
    Diameter 19.4mm
    Mechanical durability 15000cycles
    Min. insulation resistance 1TΩ
    Shaft length 20mm
    Shaft diameter 6mm
    Shaft surface smooth
    Poles number 3
    DC contacts rating @R 0.13A / 150V DC
    AC contacts rating @R 0.13A / 150V AC
    Switching method BBM (non-shorting)
    Stable positions number 4
    Switching torque 5Ncm
    Indexed positions 30°
