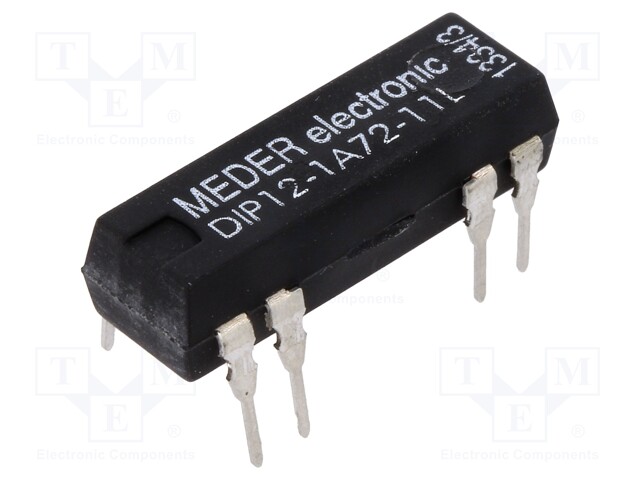

Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; max.200VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DIP12-1A72-11L
    Manufacturer: MEDER
    Manufacturer code: DIP12-1A72-11L
    • Operating temperature
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; max.200VAC

    Operating temperature -20...70°C
    Switched voltage max. 200V AC, max. 200V DC
    Coil resistance 1kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Type of relay reed
    Coil power consumption 144mW
    Relay series DIP
    Coil current 12mA
