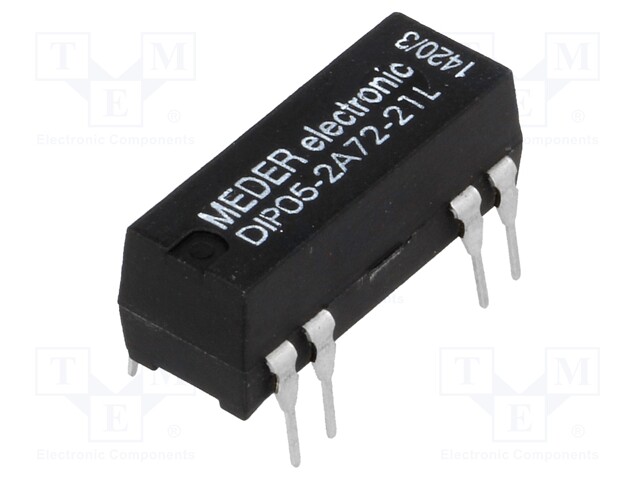

Relay: reed; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 125mW

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DIP05-2A72-21L
    Manufacturer: MEDER
    Manufacturer code: DIP05-2A72-21L
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    6.98 € 6.98 € (wo VAT) 6.98 EUR

    6.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 125mW

    Mounting PCB
    Case DIP14
    Operating temperature -20...70°C
    Terminal pitch 2.54mm
    Soldering temperature 260°C
    Body dimensions 19.3x7.5x7mm
    Switched voltage max. 200V AC, max. 200V DC
    Coil resistance 200Ω
    Rated coil voltage 5V DC
    Contacts configuration DPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 7.5V DC
    Type of relay reed
    Coil voltage min. 3.5V DC
    Coil power consumption 125mW
    Relay series DIP
