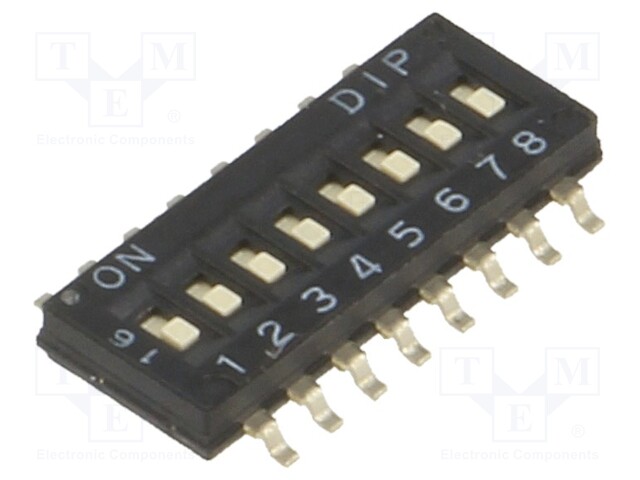

Switch: DIP-SWITCH; Poles number: 8; ON-OFF; 0.1A/50VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DHN-08F-T-V
    Manufacturer: CANAL ELECTRONIC
    Manufacturer code: DHN-08F-T-V
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Row pitch
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body material
    • Flammability rating
    • Body dimensions
    • Mechanical durability
    • Overall length
    • Poles number
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator material

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 8; ON-OFF; 0.1A/50VDC; Pos: 2

    Mounting SMT
    Operating temperature -20...85°C
    Type of switch DIP-SWITCH
    Switches features flat actuator
    Contact plating gold-plated
    Number of positions 2
    Row pitch 6.15mm
    Contact material copper
    Max. contact resistance: 50mΩ
    Terminal pitch 1.27mm
    Body material thermoplastic
    Flammability rating UL94V-0
    Body dimensions 11.39x4.5x1.4mm
    Mechanical durability 1000cycles
    Overall length 11.39mm
    Poles number 8
    DC contacts rating @R 0.1A / 50V DC
    Switching method ON-OFF
    Stable positions number 2
    Actuator material thermoplastic material PPA
