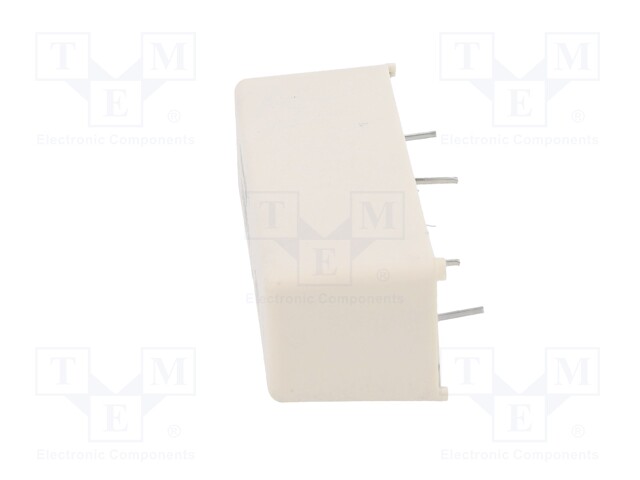

Relay: reed; SPST-NC; Ucoil: 5VDC; 3A; max.7kVDC; max.7kVAC; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DBT70510
    Manufacturer: SENSATA/CYNERGY3
    Manufacturer code: DBT70510
    • Mounting
    • Operating temperature
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NC; Ucoil: 5VDC; 3A; max.7kVDC; max.7kVAC; PCB

    Mounting PCB
    Operating temperature -20...70°C
    Switched voltage max. 7kV AC, max. 7kV DC
    Coil resistance 38Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NC
    Contact current max. 3A
    Type of relay reed
    Coil voltage min. 3.7V DC
    Operate time 2ms
    Release time 3ms
