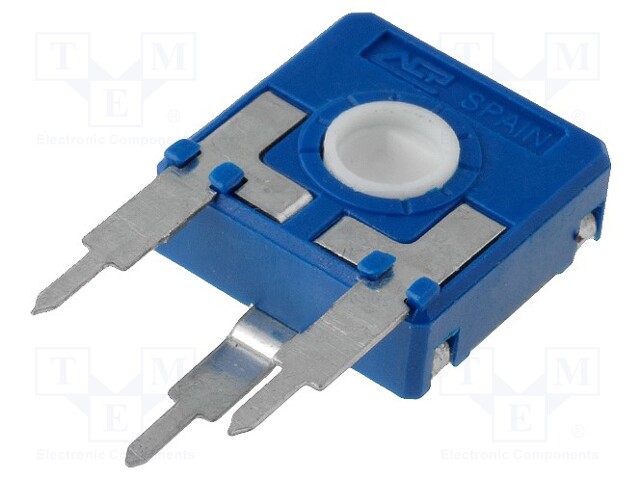

Potentiometer: mounting; single turn,vertical; 100kΩ; 250mW; ±20%

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: CA14NH5-100KA2020
    Manufacturer: ACP
    Manufacturer code: CA14NH5-100KA2020
    • Mounting
    • Power
    • Resistance
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Mechanical durability
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer standard
    • Torque
    • Electrical rotation angle

    0.50 € 0.50 € (wo VAT) 0.5 EUR

    0.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: mounting; single turn,vertical; 100kΩ; 250mW; ±20%

    Mounting THT
    Power 250mW
    Resistance 100kΩ
    Operating temperature -25...70°C
    Tolerance ±20%
    Terminal pitch 10x5mm
    Body dimensions 14x14x6mm
    Max. operating voltage 250V DC
    Mechanical durability 1000cycles
    Kind of potentiometer single turn, vertical
    Type of potentiometer mounting
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 265 ±5°
    Potentiometer standard 14mm
    Torque <2,5Ncm
    Electrical rotation angle 245 ±20°
