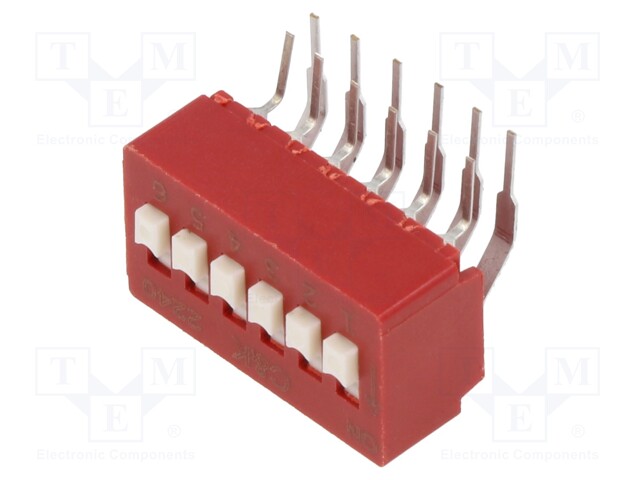

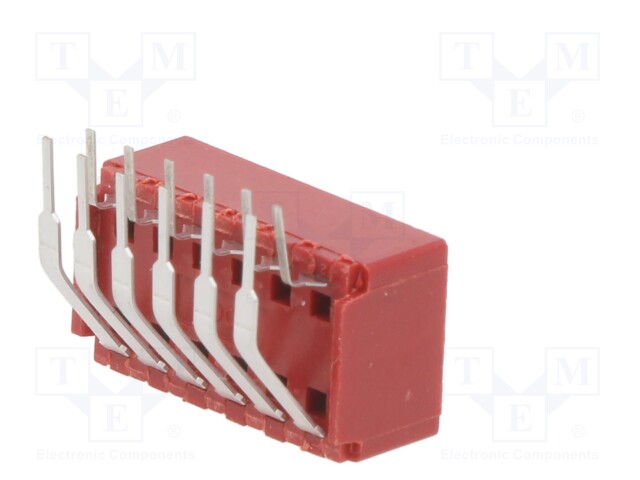

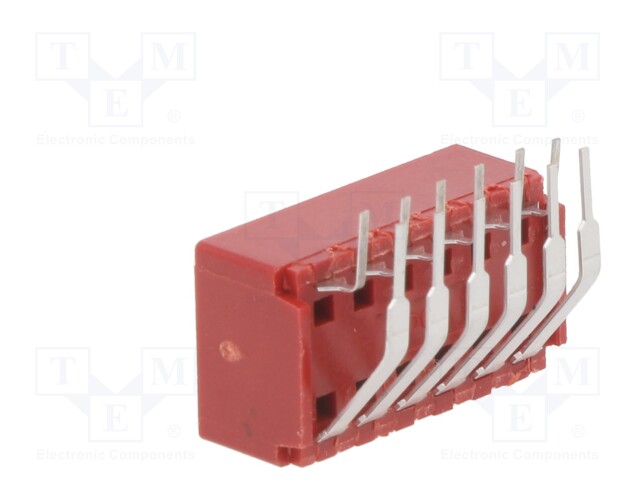

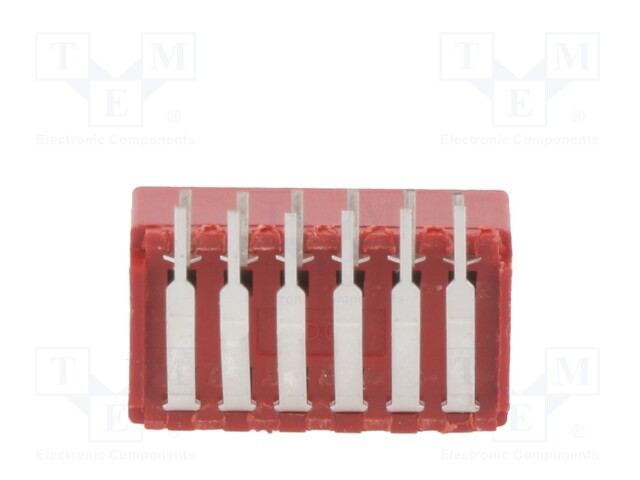

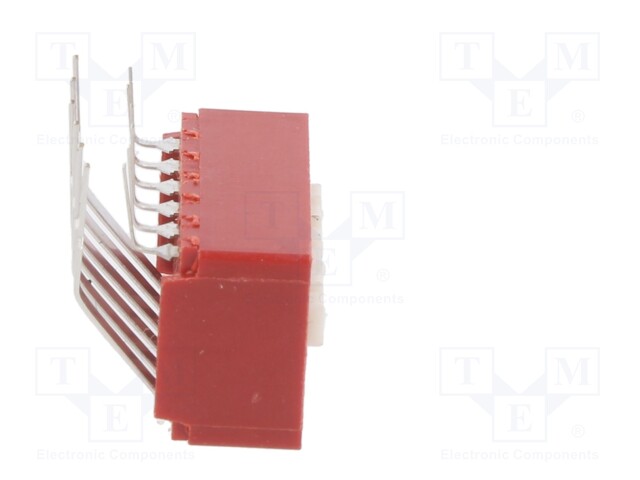

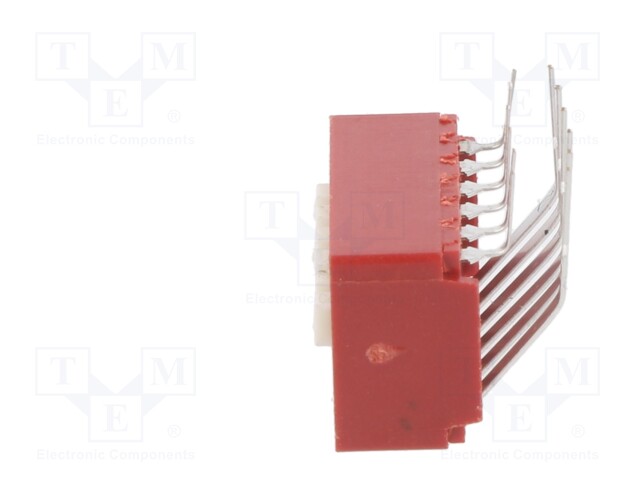

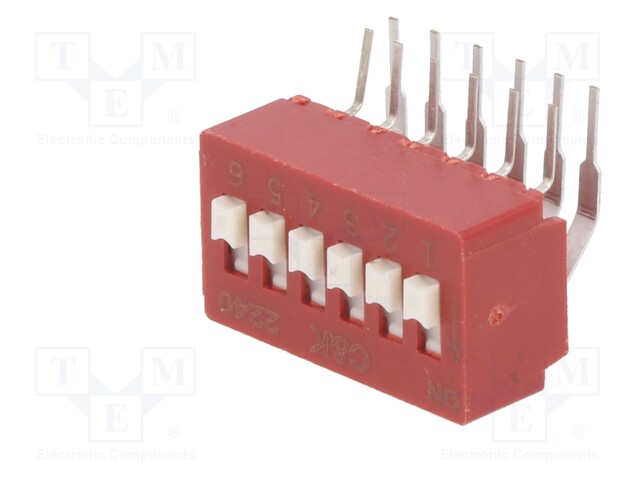

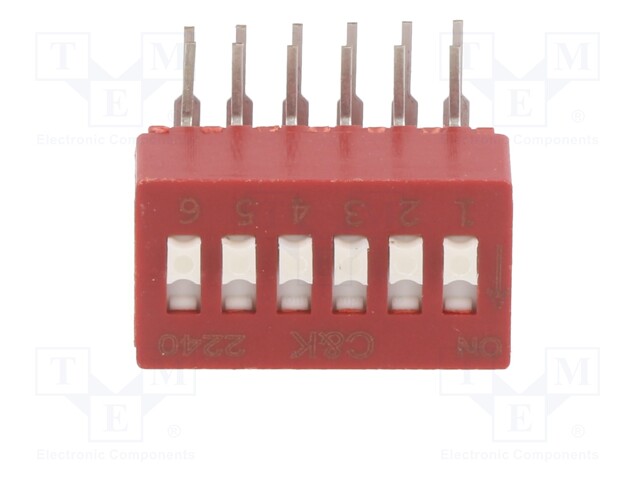

Switch: DIP-SWITCH

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: BD06AV
    Manufacturer: C&K
    Manufacturer code: BD06AV
    • Mounting
    • Operating temperature
    • Type of switch
    • Kind of package
    • Contact plating
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Quantity in package
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    4.38 € 4.38 € (wo VAT) 4.38 EUR

    4.38 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH

    Mounting THT
    Operating temperature -40...85°C
    Type of switch DIP-SWITCH
    Kind of package tube
    Contact plating nickel plated, tinned
    Number of positions 2
    Leads angled, for PCB
    Contact material phosphor bronze
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Body dimensions 17.27x9.65x6.73mm
    Mechanical durability 10000cycles
    Quantity in package 29pcs.
    Min. insulation resistance 1GΩ
    Electrical life 10000cycles
    Poles number 6
    Contacts configuration SPST
    DC contacts rating @R 0.025A / 25V DC
    Switching method OFF-ON
    Stable positions number 2
