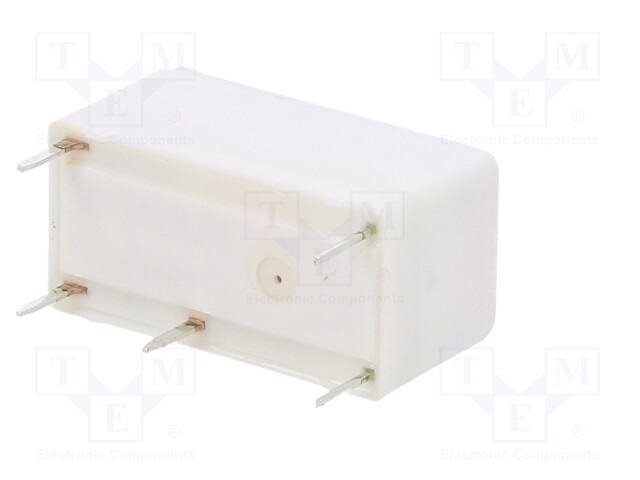

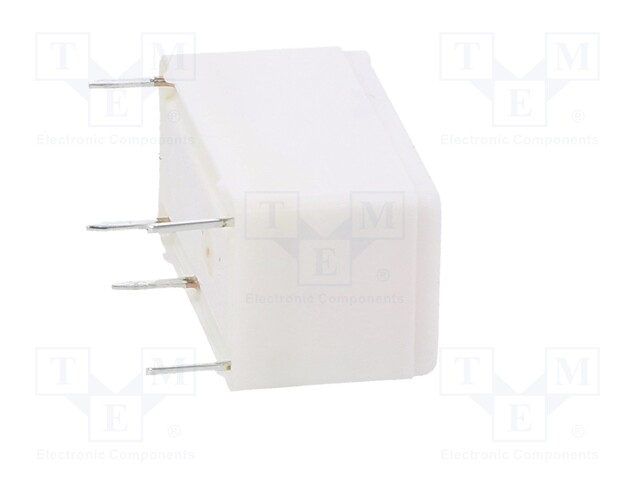

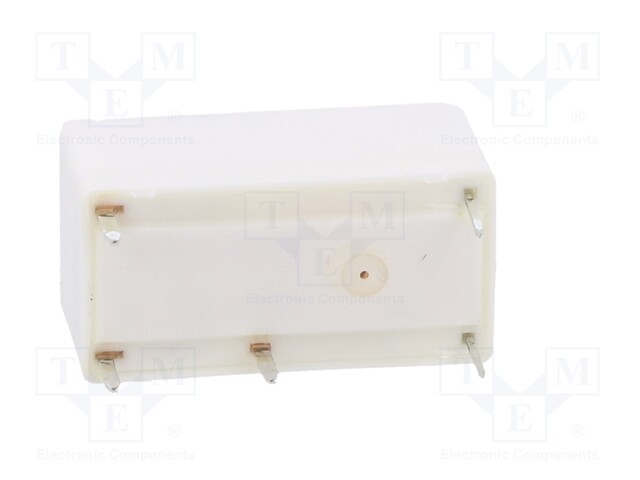

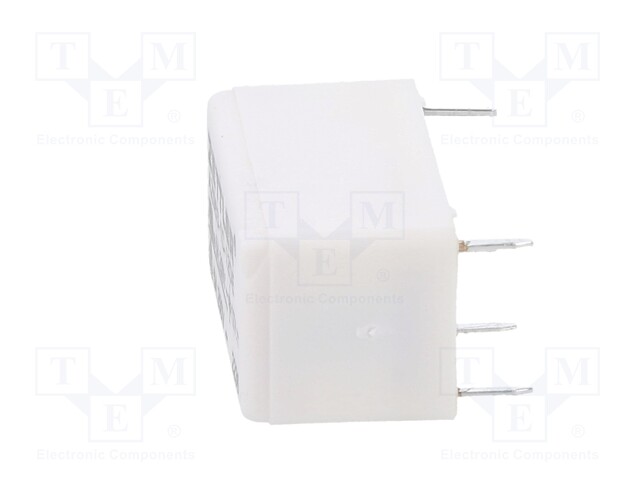

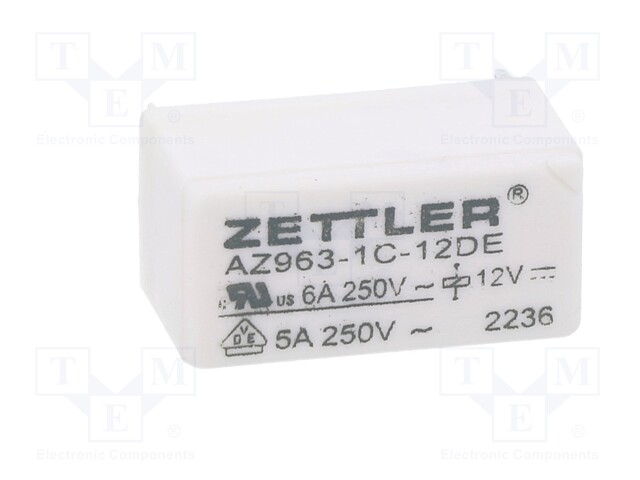

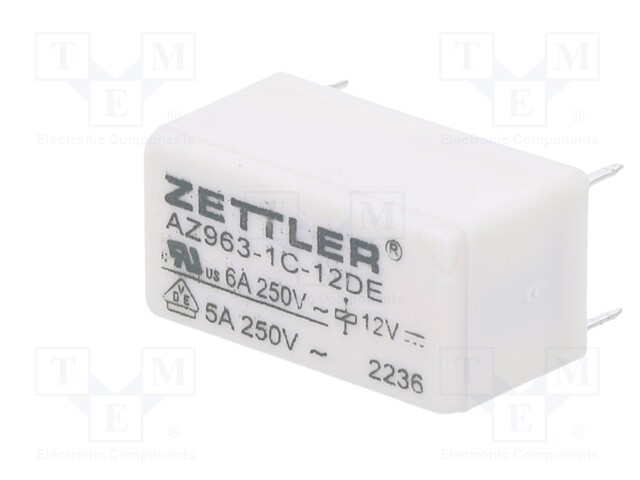

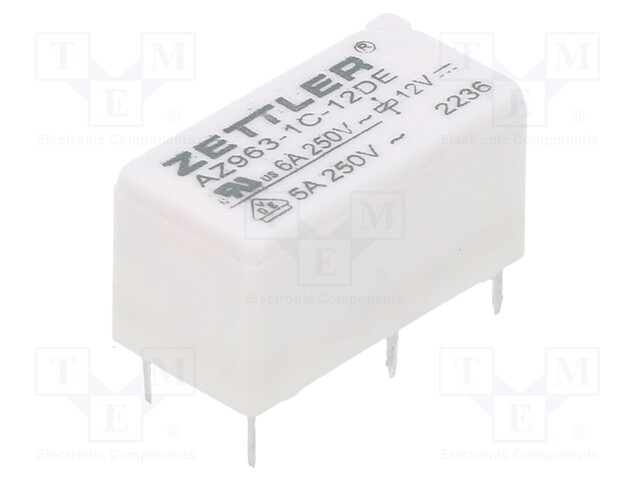

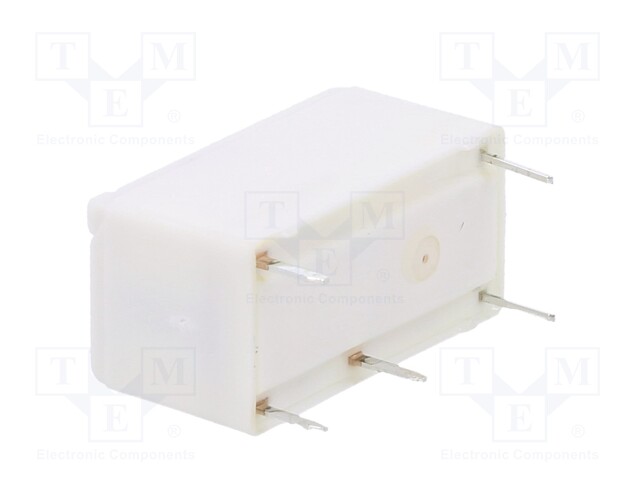

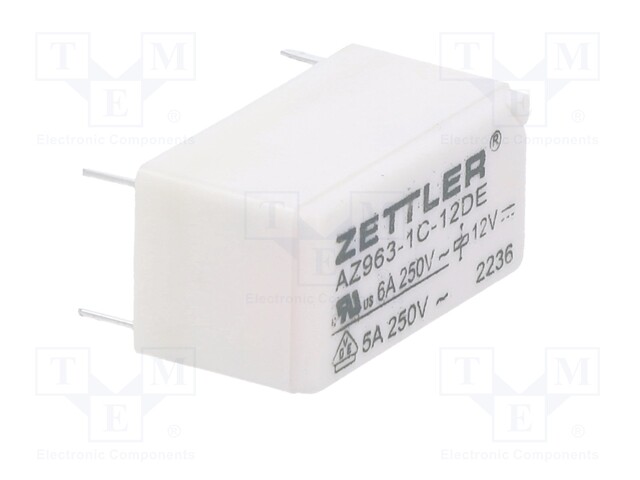

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ963-1C-12DE
    Manufacturer: ZETTLER
    Manufacturer code: AZ963-1C-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    3.27 € 3.27 € (wo VAT) 3.27 EUR

    3.27 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 6A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

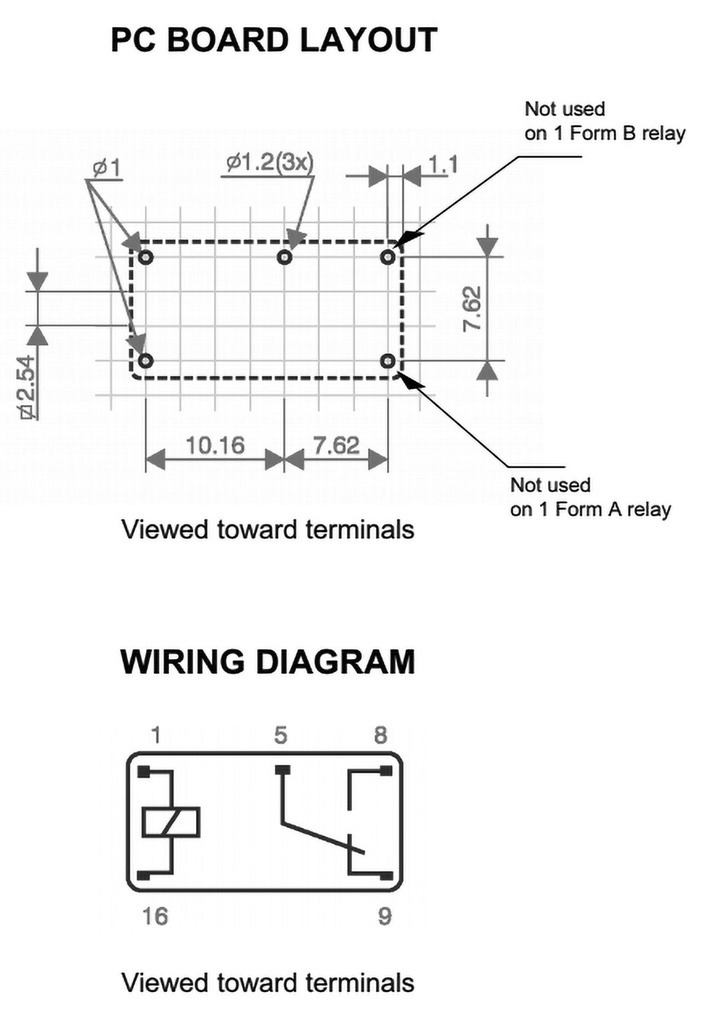

    Terminal pitch 7.62mm

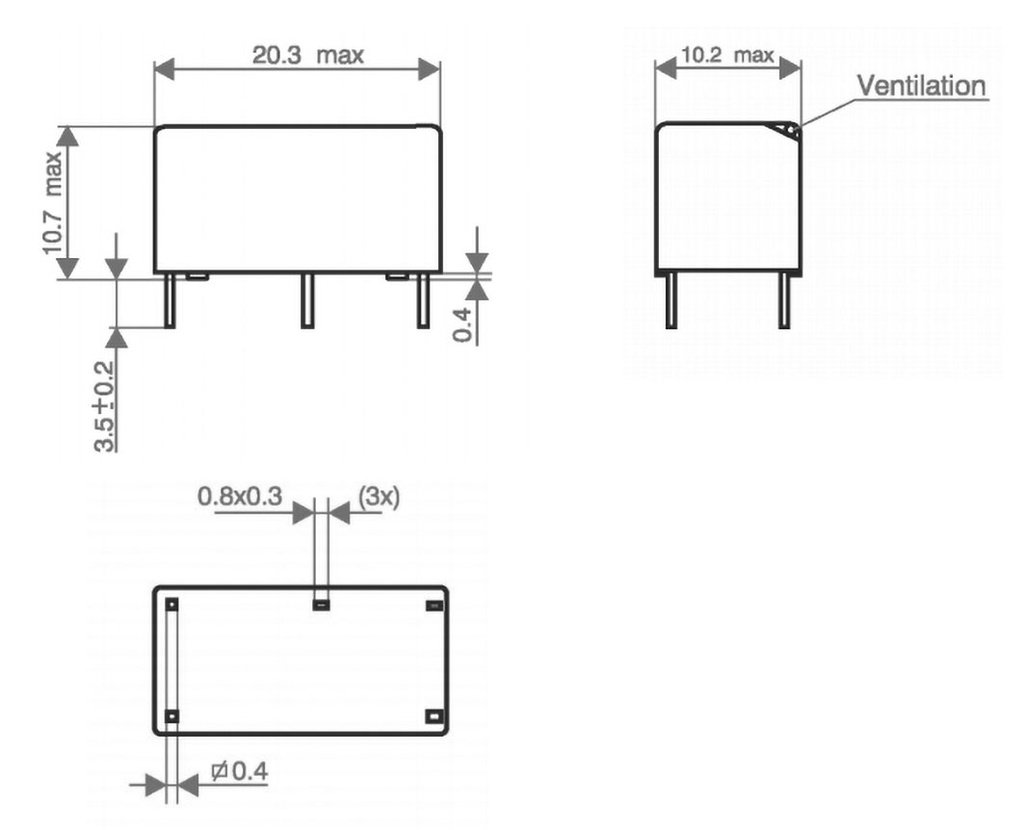

    Body dimensions 20.3x10.2x10.7mm
    Switched voltage max. 220V DC, max. 380V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 113mW
    Relay series AZ963
