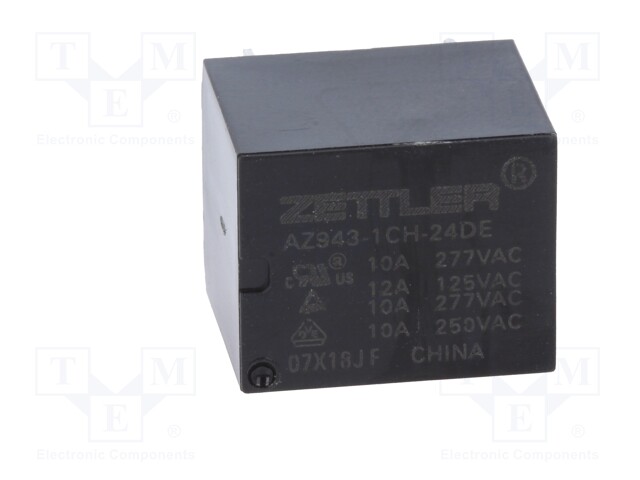

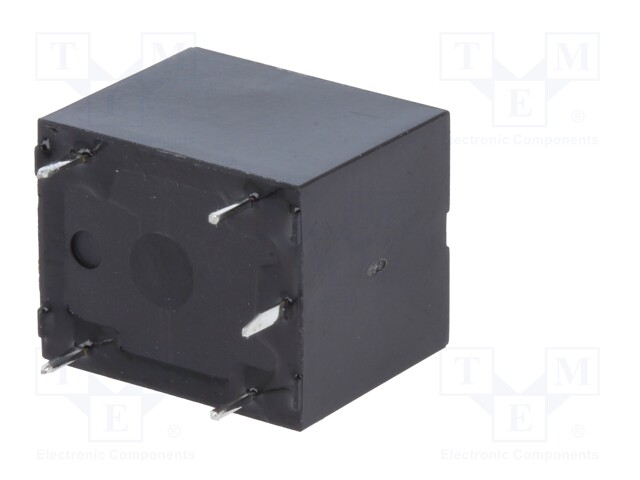

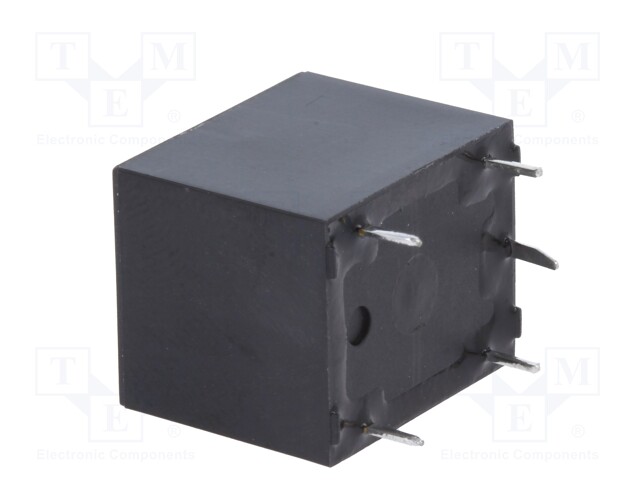

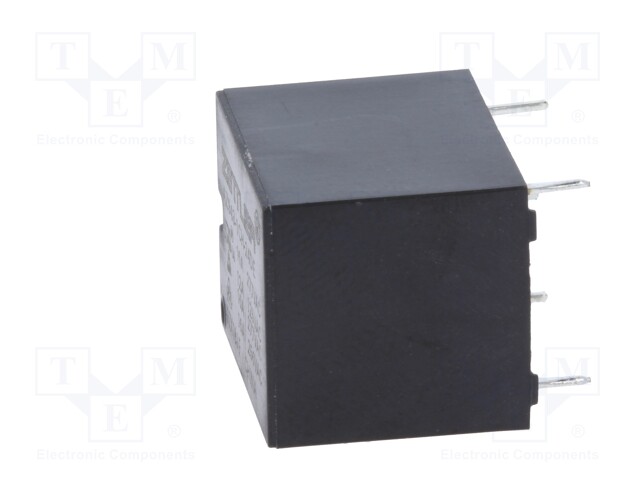

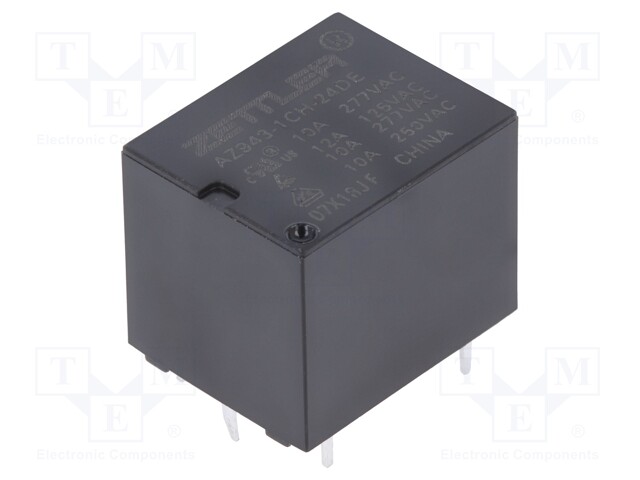

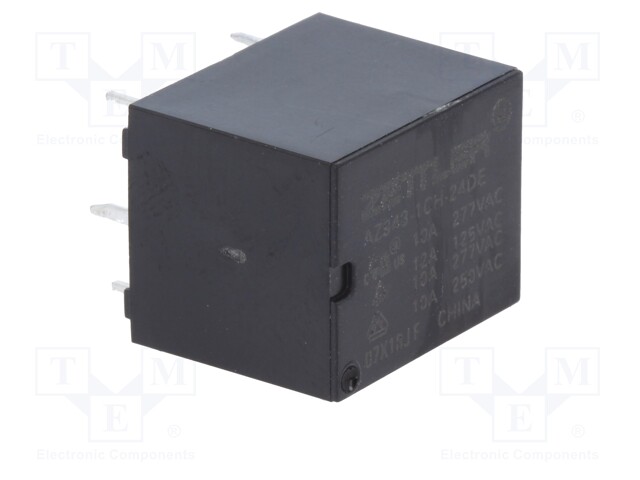

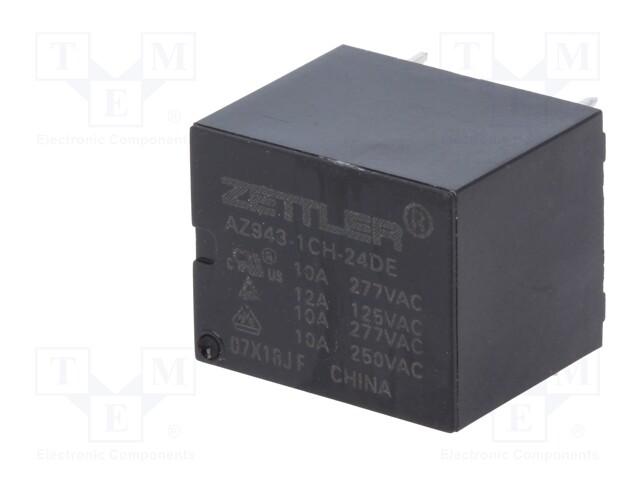

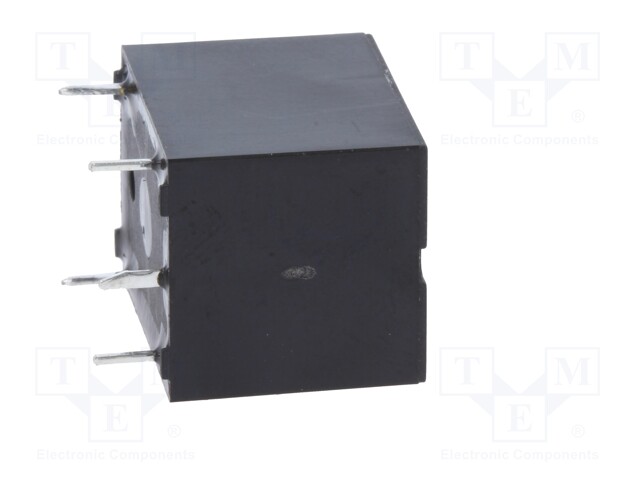

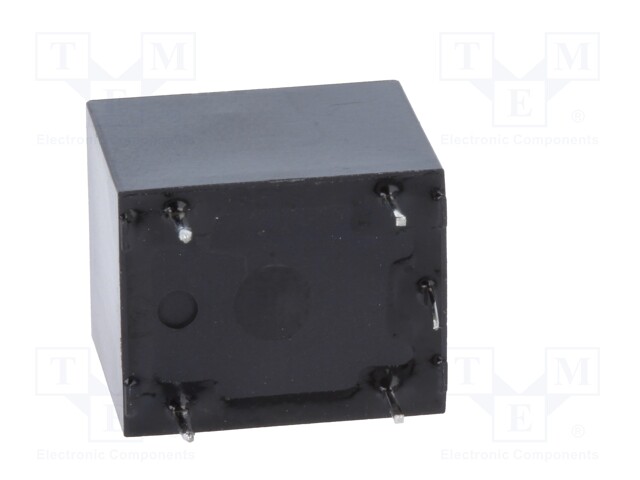

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ943-1CH-24DE
    Manufacturer: ZETTLER
    Manufacturer code: AZ943-1CH-24DE
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    1.28 € 1.28 € (wo VAT) 1.28 EUR

    1.28 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Switched voltage max. 30V DC, max. 300V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 277V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 203mW
    Relay series AZ943
    Operate time 10ms
    Release time 5ms
