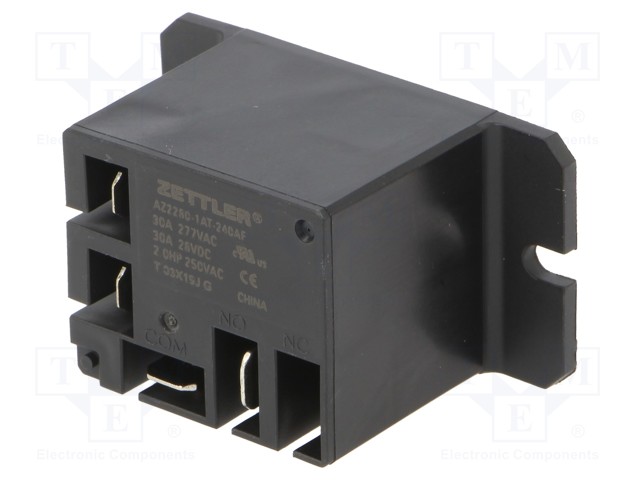

Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ2280

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AZ2280-1AT-240AF
    Manufacturer: ZETTLER
    Manufacturer code: AZ2280-1AT-240AF
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ2280

    Mounting on panel
    Operating temperature -40...70°C
    Contact material AgCdO

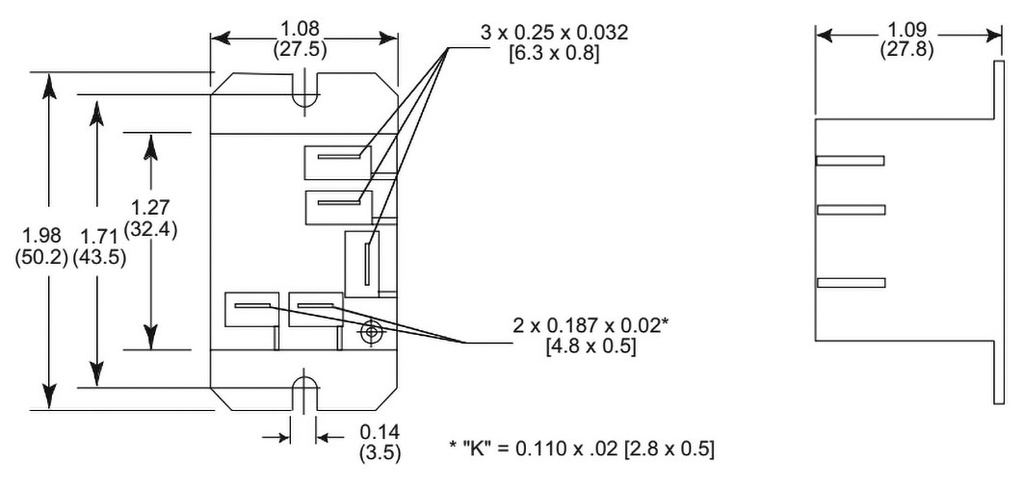

    Body dimensions 50.2x27.5x27.8mm
    Switched voltage max. 28V DC, max. 277V AC
    Coil resistance 13.49kΩ

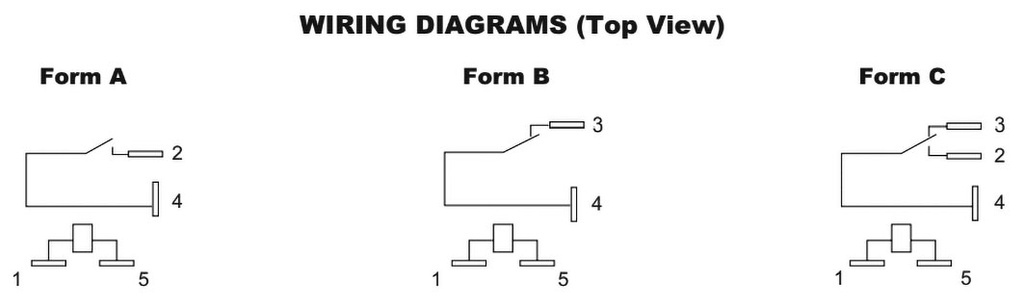

    Contacts configuration SPST-NO
    DC contacts rating @R 30A / 28V DC
    Contact resistance 50mΩ
    AC contacts rating @R 30A / 277V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Relay series AZ2280
