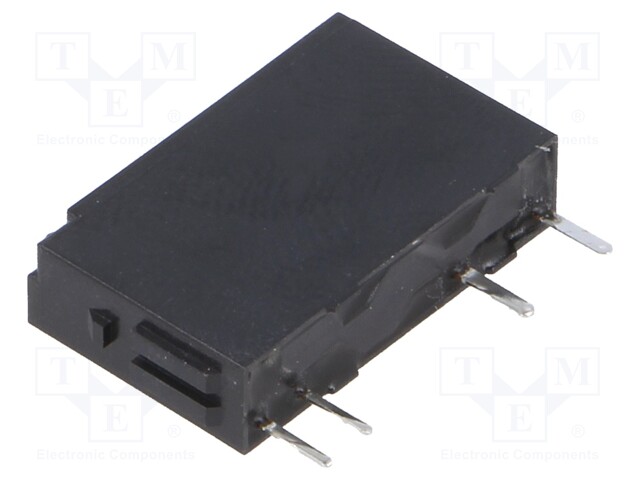

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A/250VAC; 5A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: APAN3109
    Manufacturer: PANASONIC
    Manufacturer code: APAN3109
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    8.63 € 8.63 € (wo VAT) 8.63 EUR

    8.63 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...90°C
    Contact material AgNi + Au
    Terminal pitch 5.08mm
    Body dimensions 20x5x12.8mm
    Mechanical durability 20000000cycles
    Switched voltage max. 110V DC, max. 250V AC
    Coil resistance 736Ω
    Rated coil voltage 9V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 6.3V DC
    Coil power consumption 110mW
    Relay series PA-N
    Operate time 10ms
    Release time 5ms
    Coil current 12.2mA
