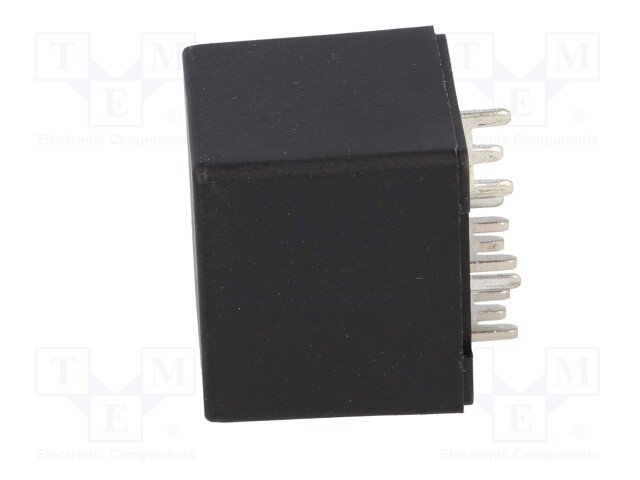

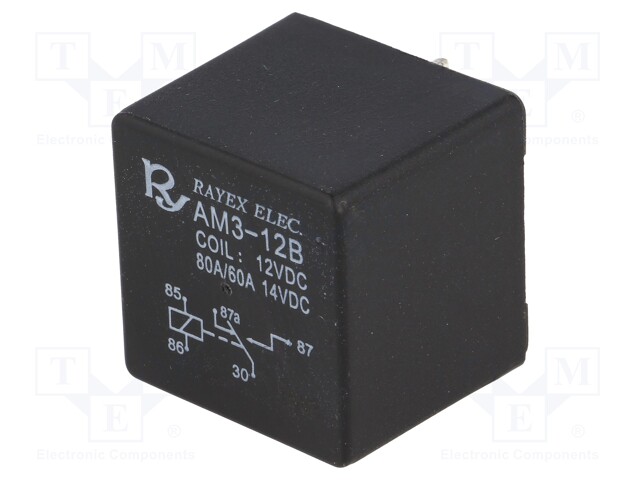

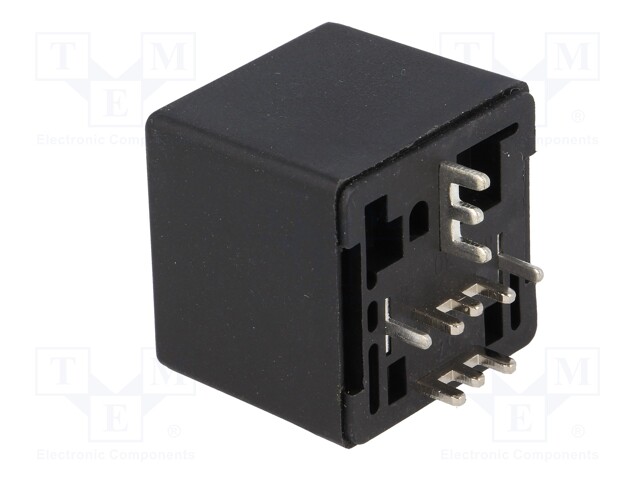

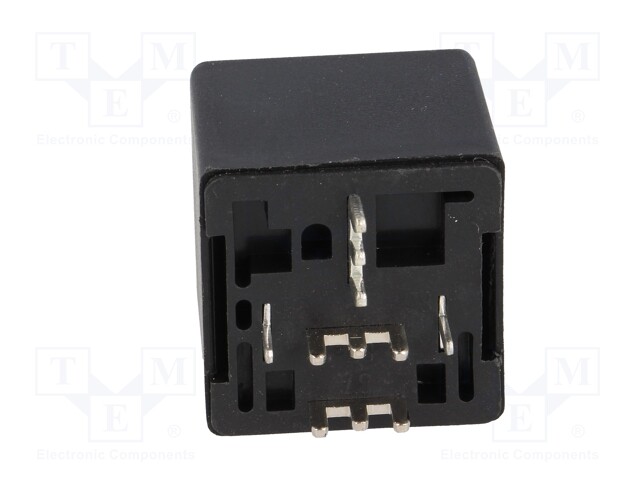

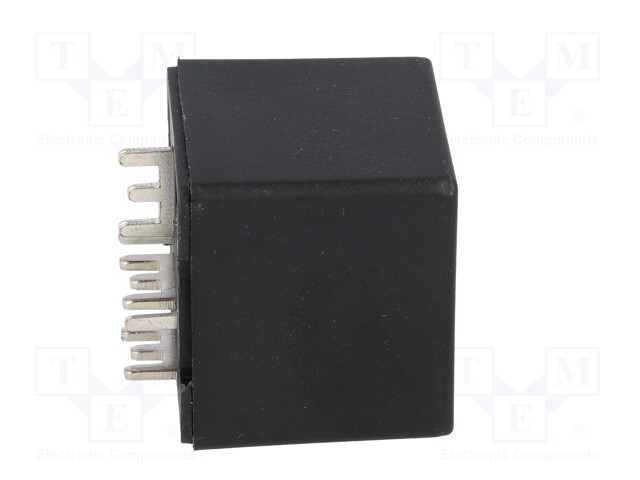

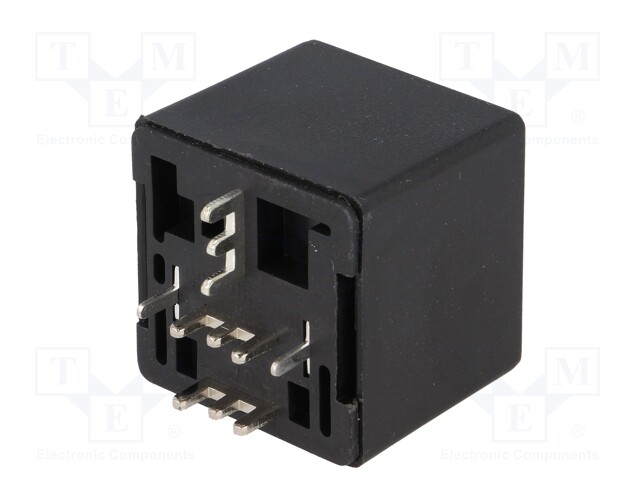

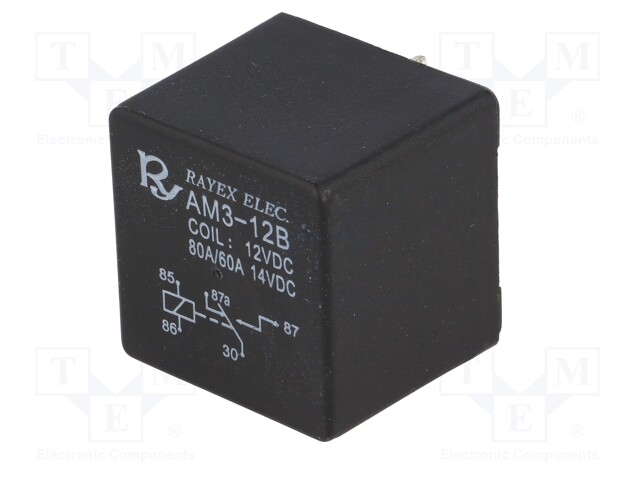

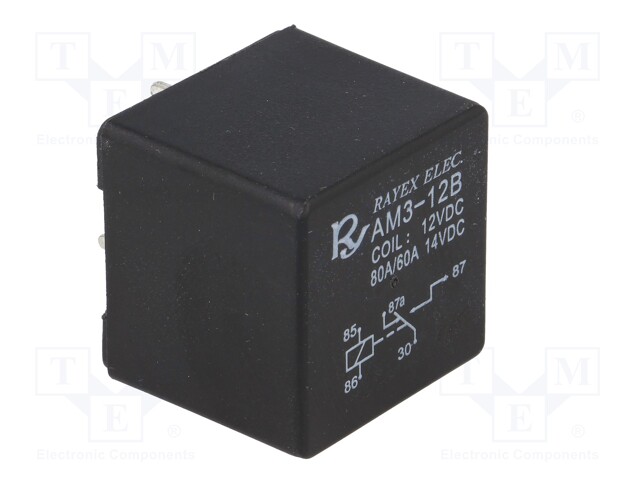

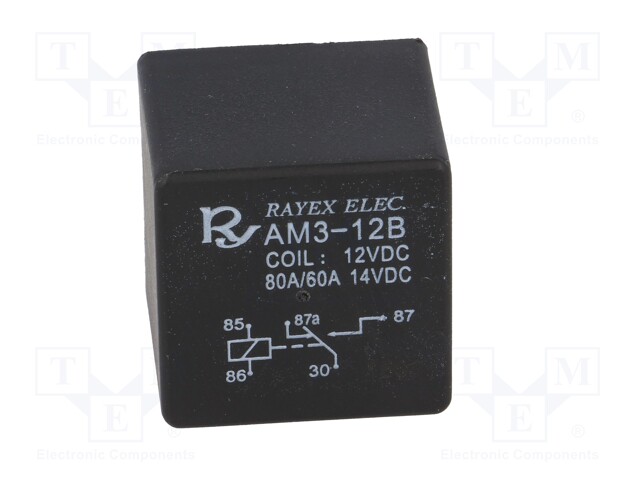

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 80A; automotive; 1.8W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AM3-12BP
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: AM3-12BP
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 80A; automotive; 1.8W

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgCdO
    Body dimensions 28x28x25mm
    Coil resistance 72Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 60A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 80A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 1.8W
    Operate time 7ms
    Release time 5ms
    Coil current 167mA
