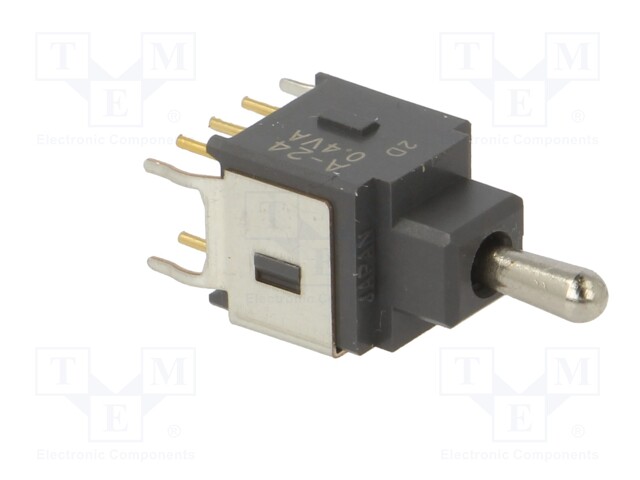

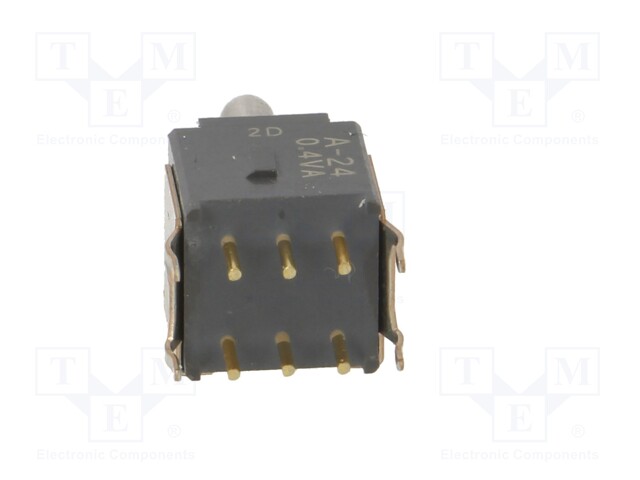

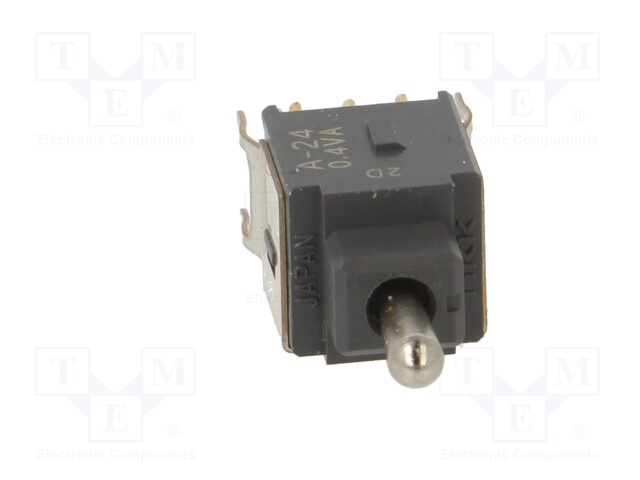

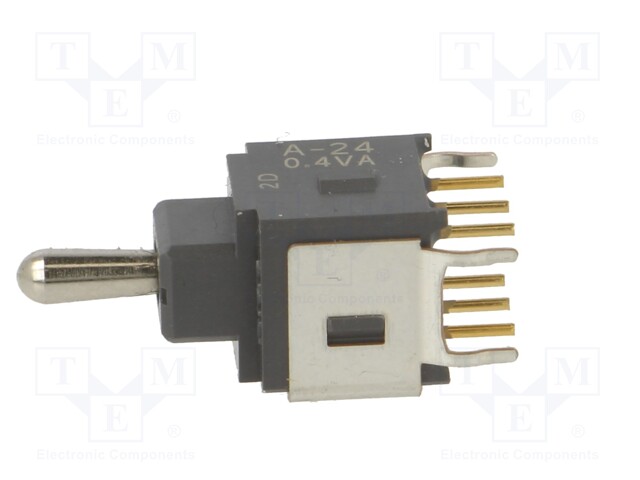

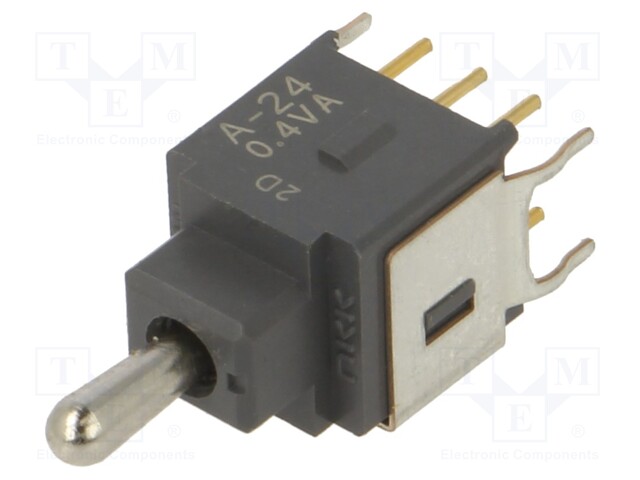

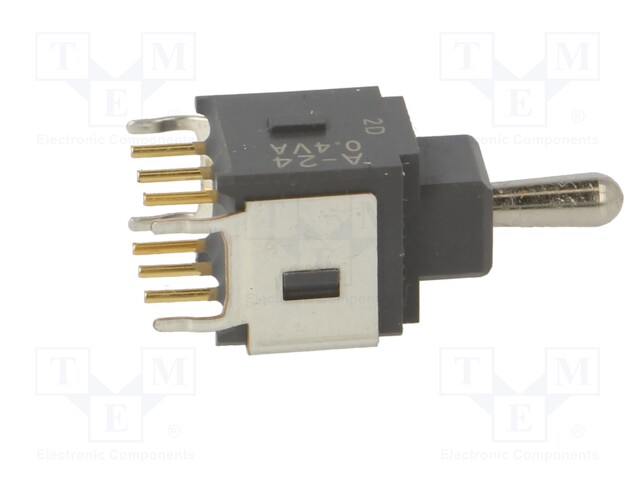

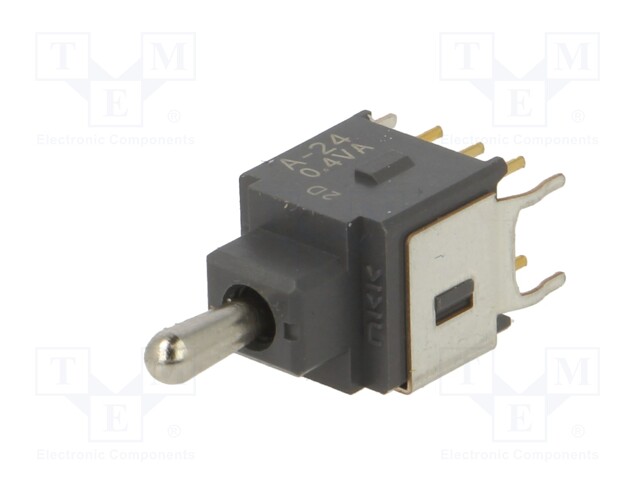

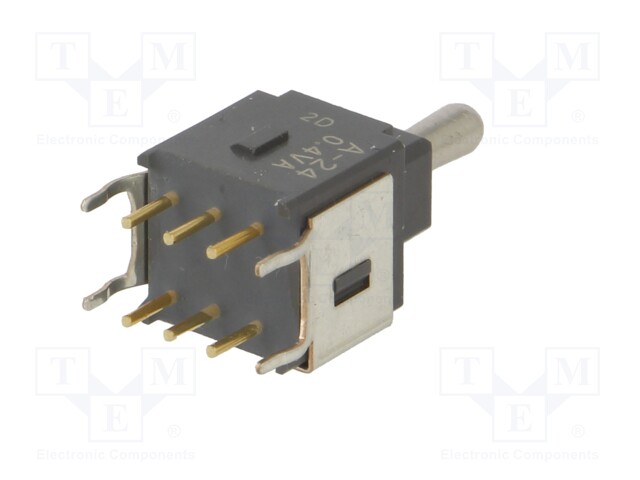

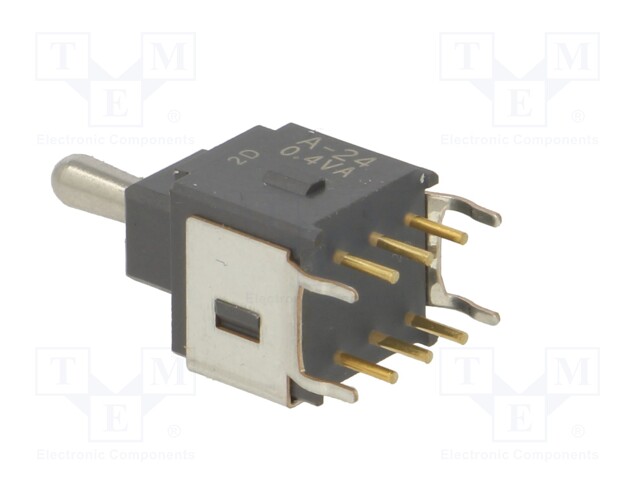

Switch: toggle; Pos: 3; SP3T; ON-ON-ON; -30÷85°C; Toggle: round

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: A24JB
    Manufacturer: NKK SWITCHES
    Manufacturer code: A24JB
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body material
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Lever length
    • Actuator material
    • Kind of toggle

    9.89 € 9.89 € (wo VAT) 9.89 EUR

    9.89 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: toggle; Pos: 3; SP3T; ON-ON-ON; -30÷85°C; Toggle: round

    Mounting THT
    Operating temperature -30...85°C
    Type of switch toggle
    Contact plating gold-plated
    Number of positions 3
    Leads for soldering, straight
    Contact material brass
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Body material polyamide
    Body colour black
    Mechanical durability 100000cycles
    Number of terminals 6
    Illumination none
    Min. insulation resistance 500MΩ
    Electrical life 50000cycles
    Poles number 1
    Contacts configuration SP3T
    DC contacts rating @R 0.1A / 28V DC
    AC contacts rating @R 0.1A / 28V AC
    Switching method ON-ON-ON
    Stable positions number 3
    Lever length 6.3mm
    Actuator material brass
    Kind of toggle round
