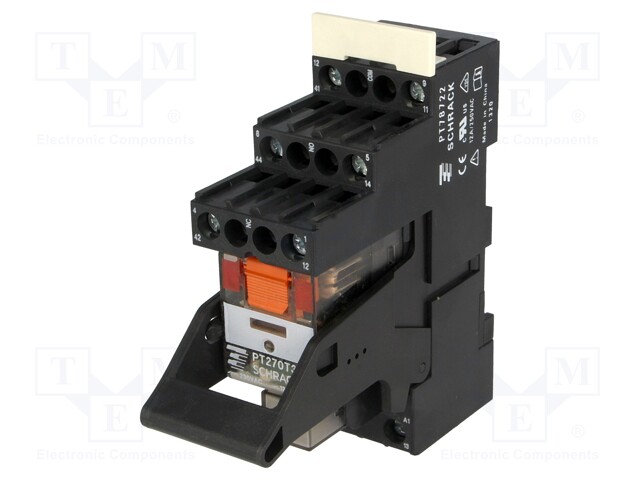

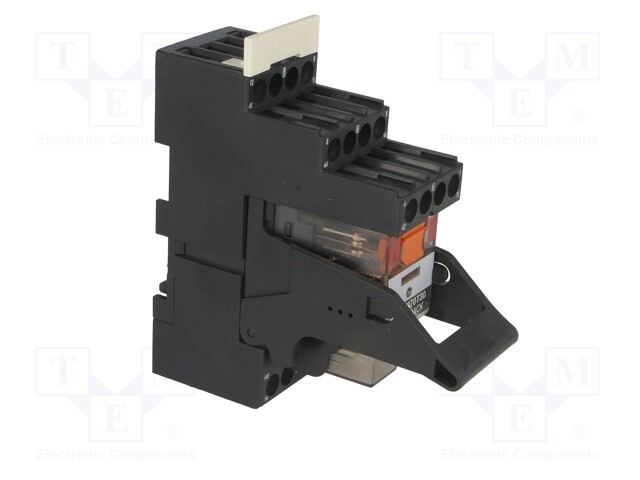

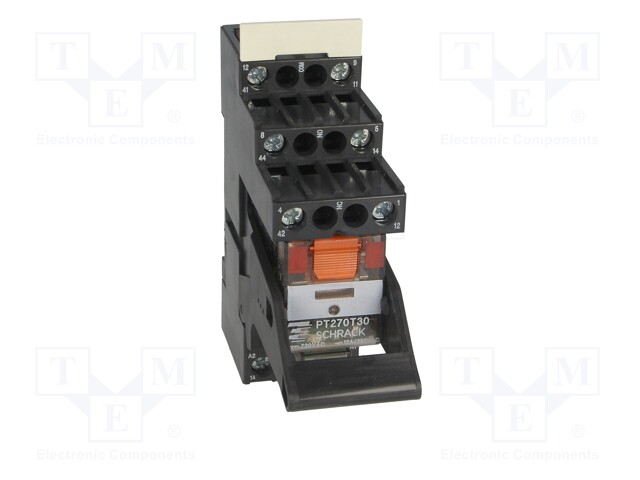

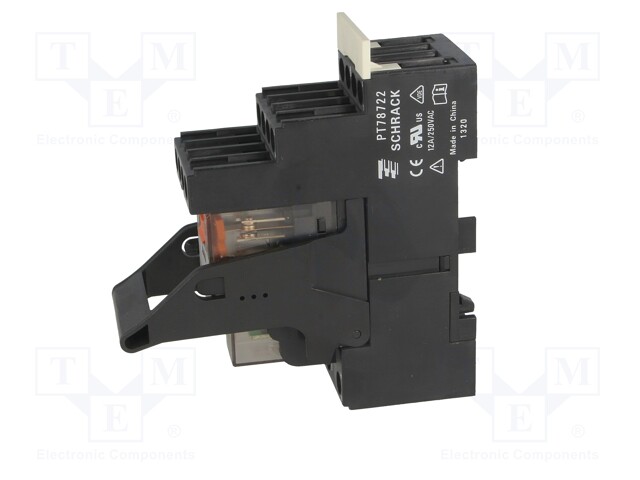

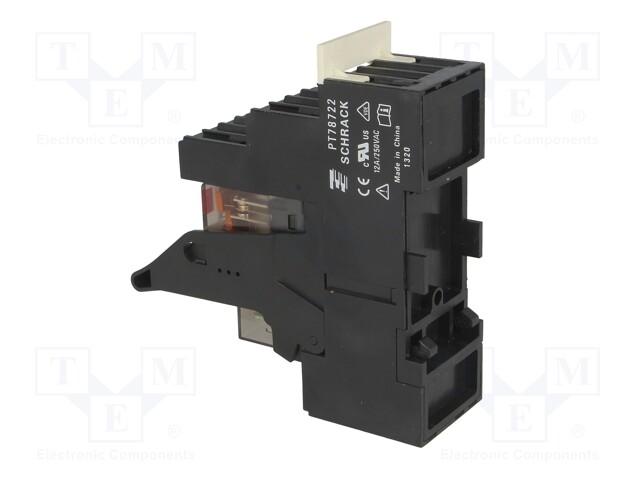

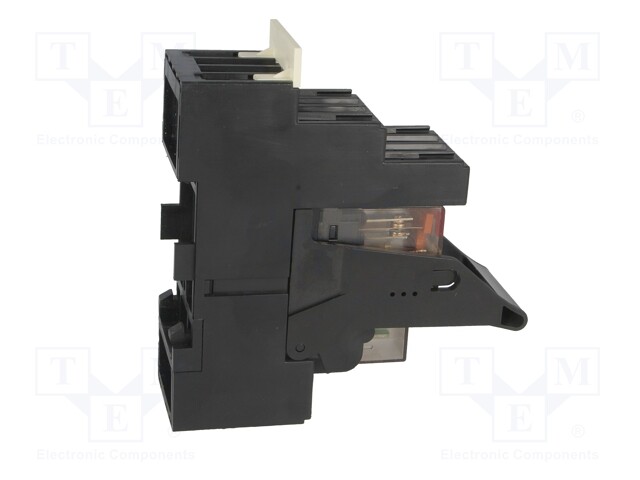

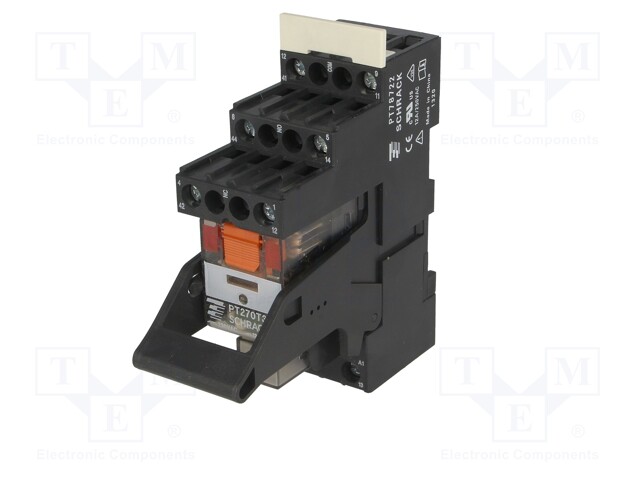

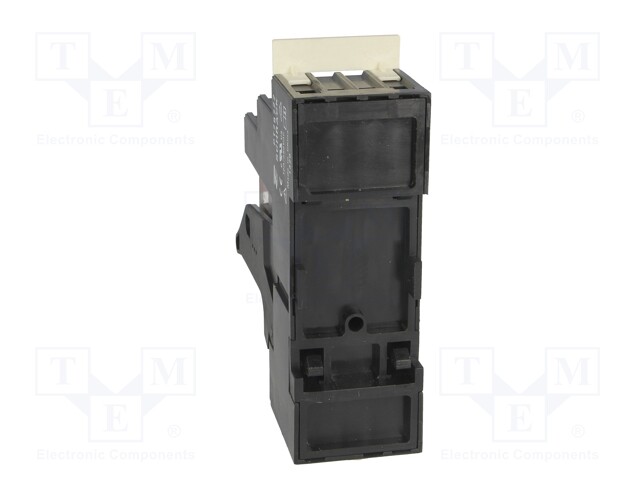

Relay: interface; DPDT; Ucoil: 230VAC; 12A; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9-1415534-4
    Manufacturer: TE Connectivity
    Manufacturer code: 9-1415534-4
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    24.72 € 24.72 € (wo VAT) 24.72 EUR

    24.72 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; DPDT; Ucoil: 230VAC; 12A; 12A/250VAC; 12A/30VDC

    Mounting for DIN rail mounting
    Max. operating current 12A
    Operating temperature -40...70°C
    Leads screw terminals
    Body dimensions 78.3x77x27.2mm
    Kit contents description plate PT17040, ejector PT17021, indication module PTMV0730, PT270T30 relay, socket PT78722
    Switched voltage max. 300V DC, max. 400V AC
    Switching capacity 3kVA
    Coil resistance 19465Ω
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Coil power consumption 1VA
    Relay series PT
