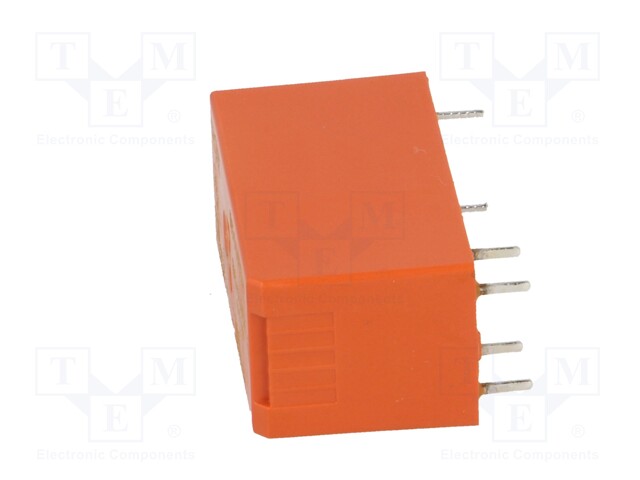

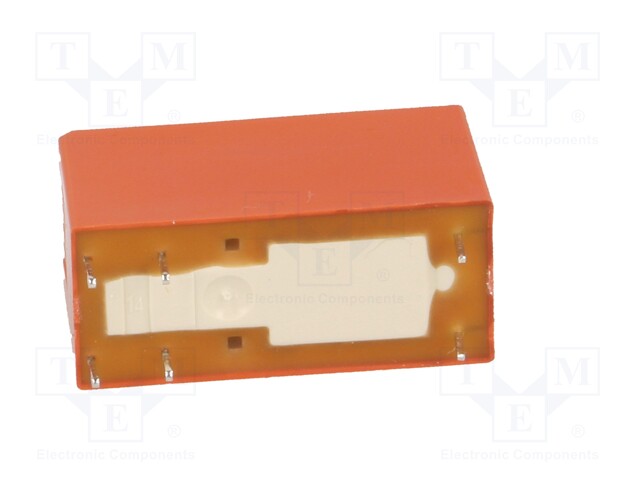

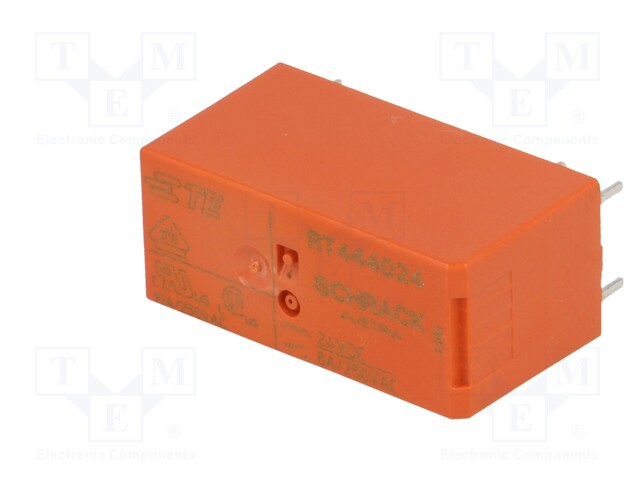

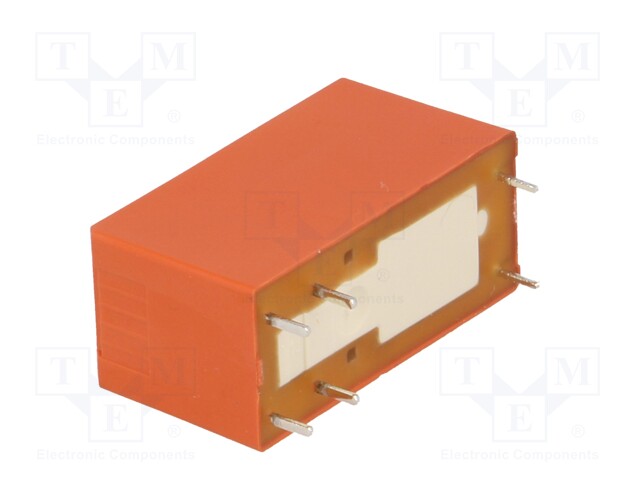

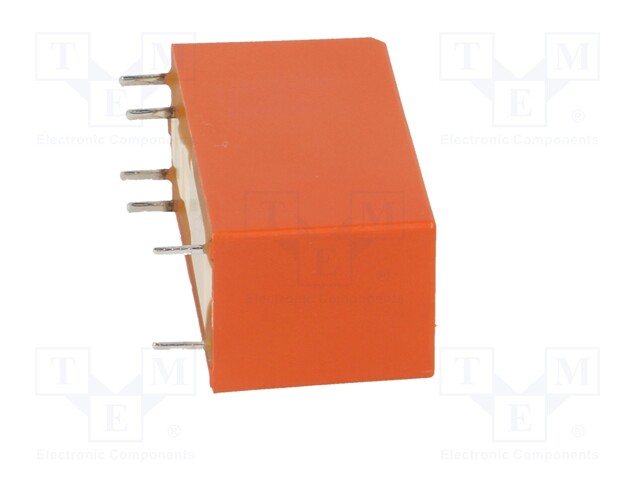

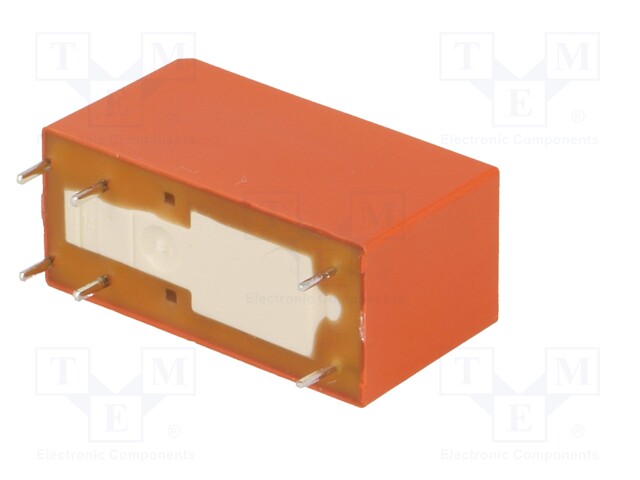

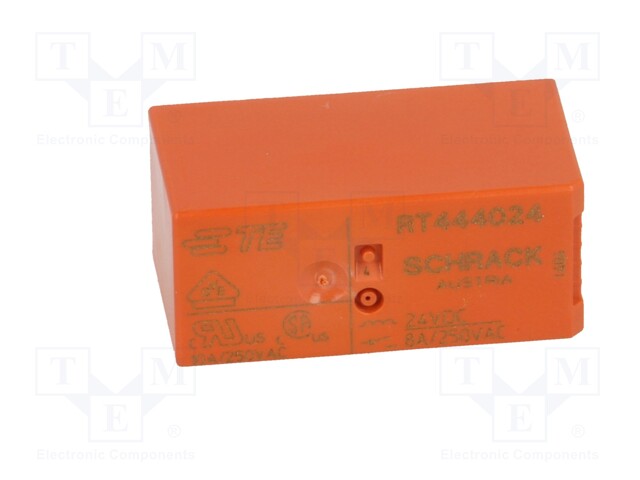

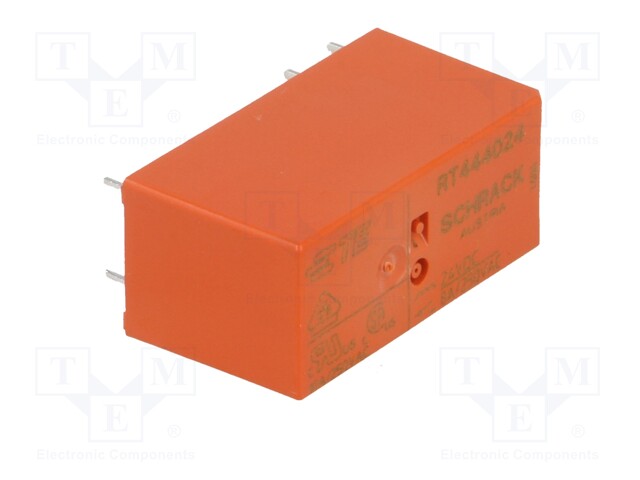

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9-1393243-9
    Manufacturer: TE Connectivity
    Manufacturer code: 9-1393243-9
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    4.26 € 4.26 € (wo VAT) 4.26 EUR

    4.26 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP40
    Number of pins 8
    Contact material AgNi 90/10
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 300V DC, max. 400V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC

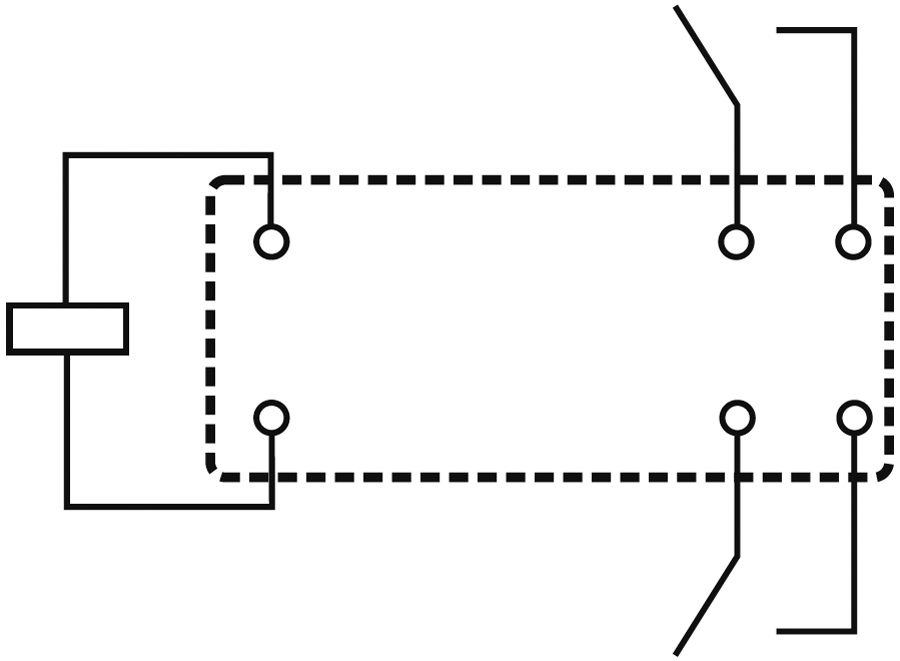

    Contacts configuration DPST-NO
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
    Relay series RT2
    Operate time 7ms
    Release time 2ms
