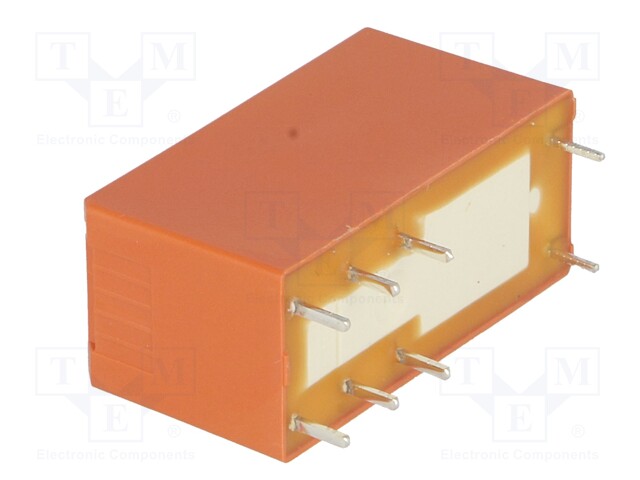

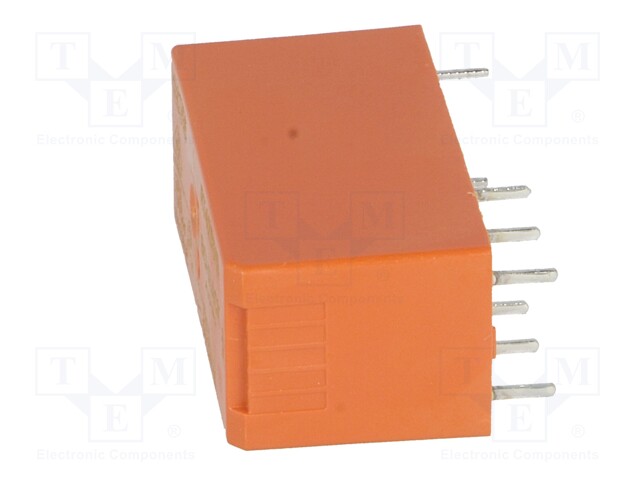

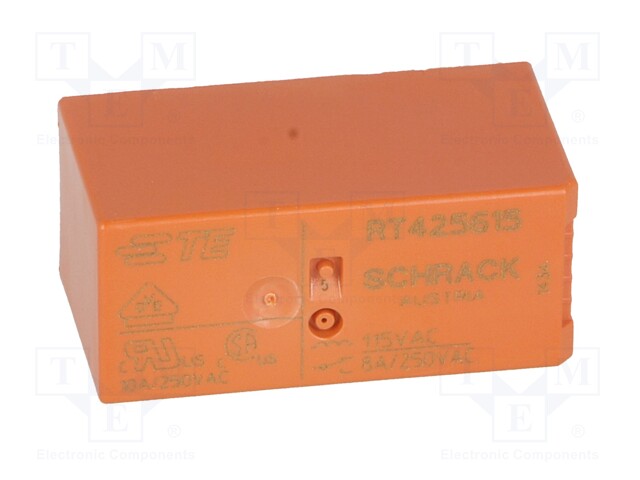

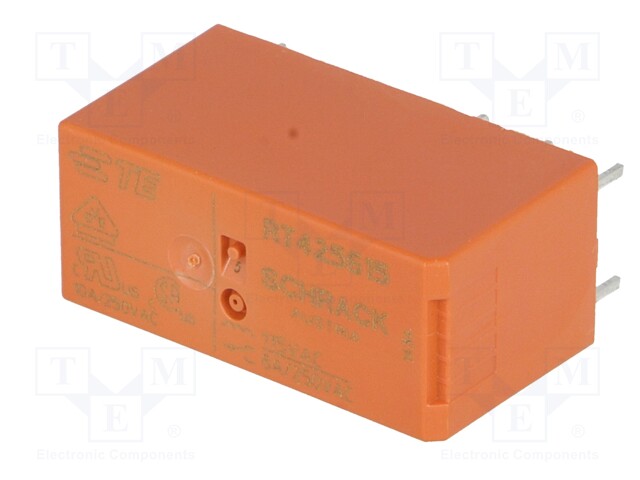

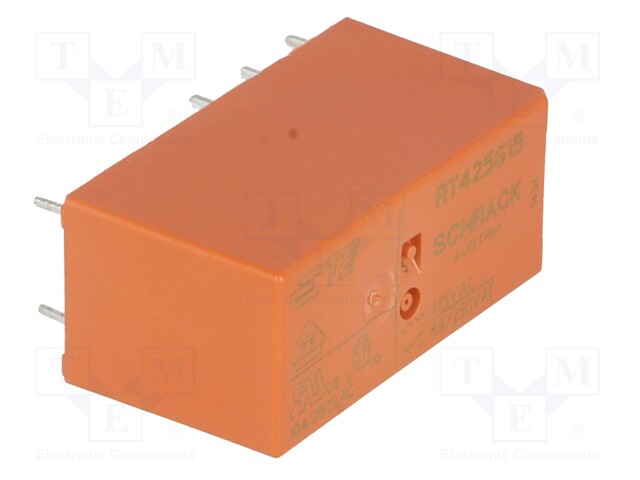

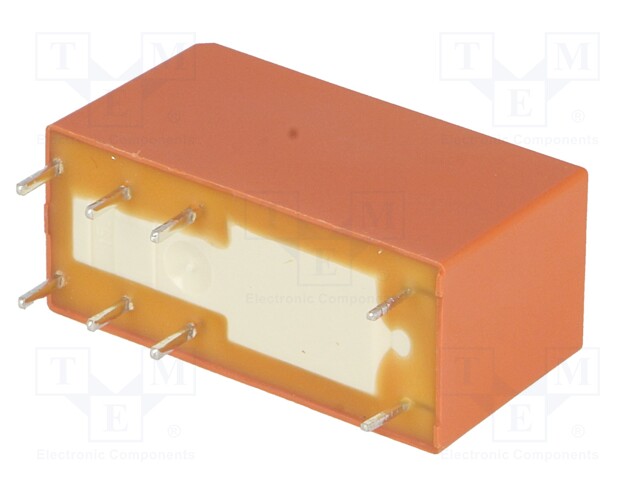

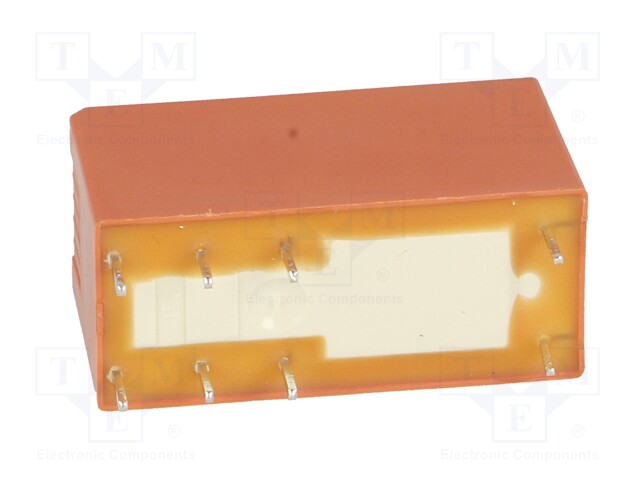

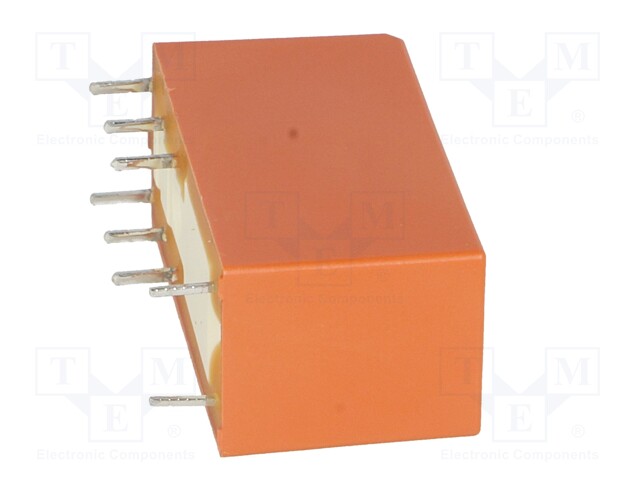

Relay: electromagnetic; DPDT; Ucoil: 115VAC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9-1393243-2-1
    Manufacturer: TE Connectivity
    Manufacturer code: 9-1393243-2
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    16.35 € 16.35 € (wo VAT) 16.35 EUR

    16.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 115VAC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP40
    Number of pins 8
    Contact material AgNi 90/10 Au
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 300V DC, max. 400V AC
    Coil resistance 8.1kΩ
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 760mVA
    Relay series RT2
    Operate time 7ms
    Release time 2ms
