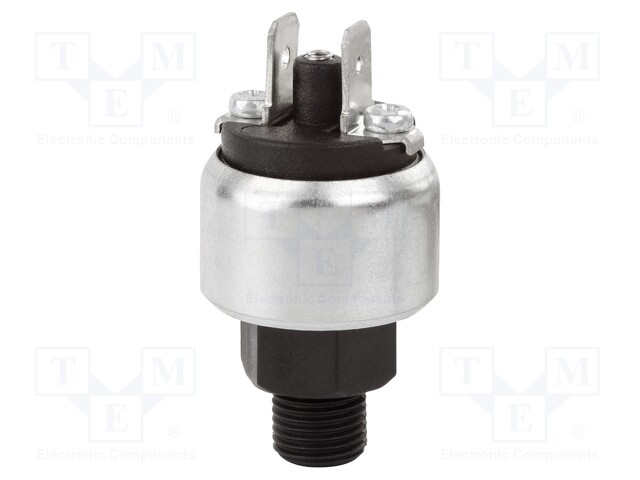

Module: pressure switch; pressure; 0,3÷2 bar; OUT 1: SPST-NO; 2A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 82135603
    Manufacturer: WIKA
    Manufacturer code: 82135603
    • Mounting
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Switched voltage
    • Switched voltage
    • Controlled parameter
    • Kind of output 1
    • Contact current max.
    • The programming method
    • Regulation for output 1

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: pressure switch; pressure; 0,3÷2 bar; OUT 1: SPST-NO; 2A

    Mounting G 1/8"
    Operating temperature -20...75°C
    IP rating IP00
    Type of module pressure switch
    Series PSM04
    Switched voltage max. 42V AC, max. 42V DC
    Controlled parameter pressure
    Kind of output 1 SPST-NO
    Contact current max. 2A
    The programming method adjusting screw
    Regulation for output 1 ON-OFF
