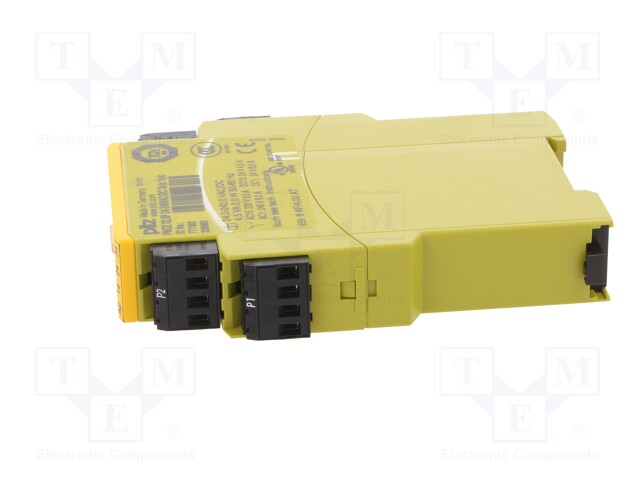

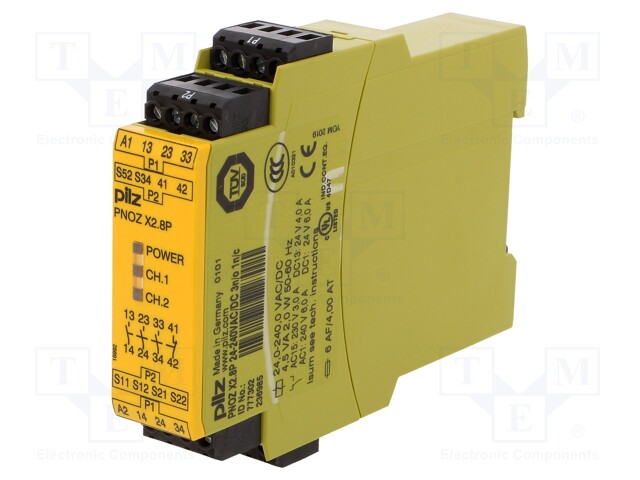

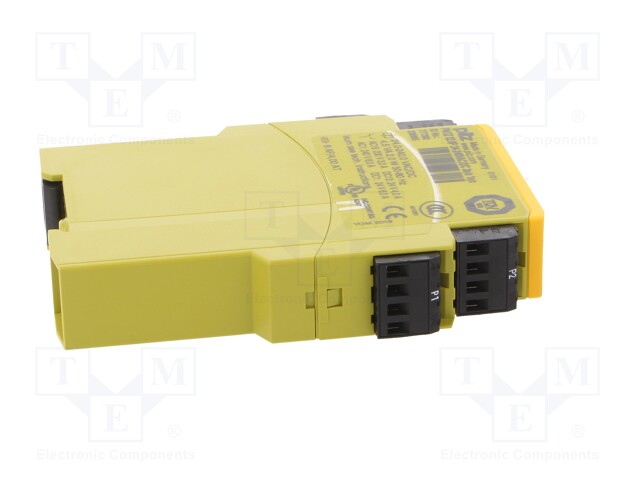

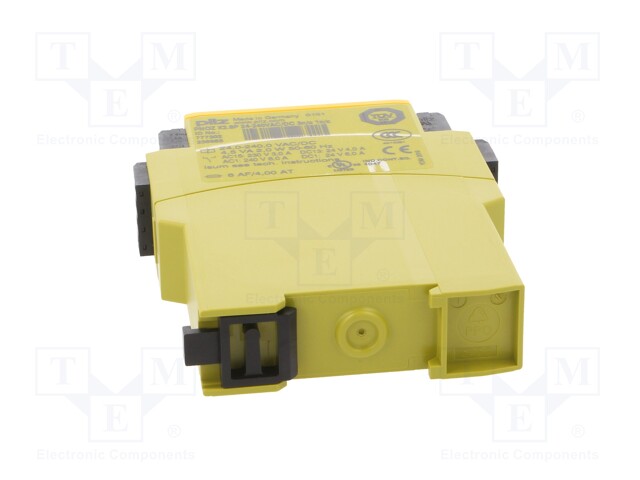

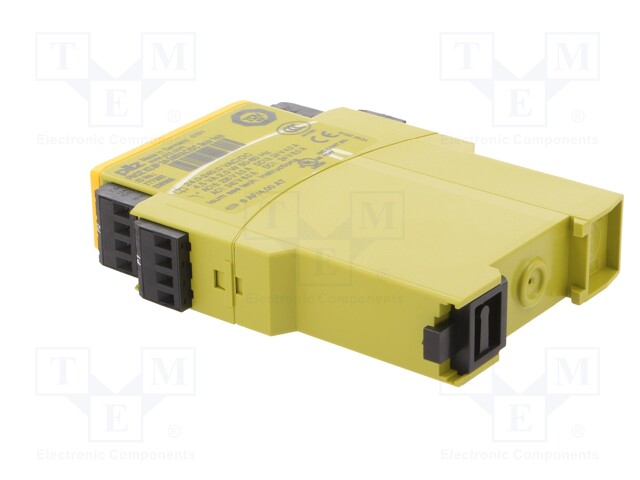

Module: safety relay; Series: PNOZ X2.8P; IN: 4; OUT: 4; -35÷55°C
Multiples:
1.0
Minimum quantity:
1.0
Product code:
777302
Manufacturer: PILZ
Manufacturer code: 777302
Product downloads
Specification for Module: safety relay; Series: PNOZ X2.8P; IN: 4; OUT: 4; -35÷55°C
| Mounting | for DIN rail mounting |
| Supply voltage | 24...240V AC, 24...240V DC |
| Operating temperature | -35...55°C |
| IP rating | IP40 |
| Type of module | safety relay |
| Series | PNOZ X2.8P |
| Application | emergency stop, safety gates and light beam devices |
| Body dimensions | 94x22.5x121mm |
| Number of inputs | 4 |
| Number of outputs | 4 |
| Electrical connection | screw terminals |
| Safety category | 4 |
| Input 1 properties | 2 channels with or without between-channels short circuit detection |
| Safety outputs | 3x NO |
| Auxiliary outputs | 1x NC |
