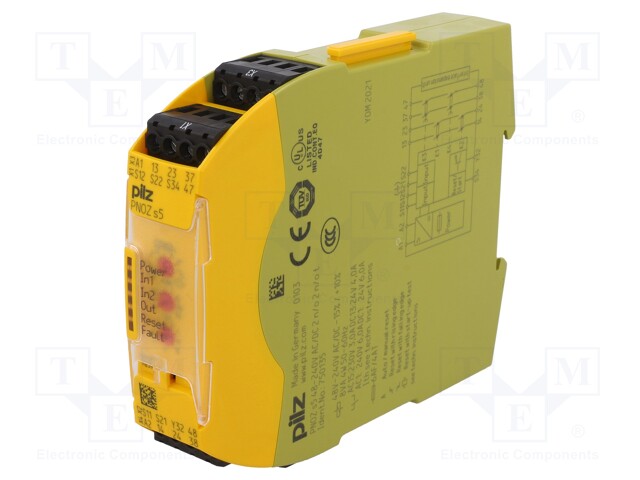

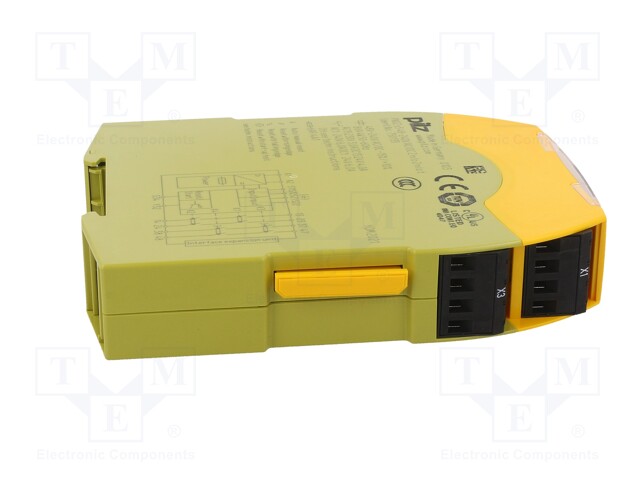

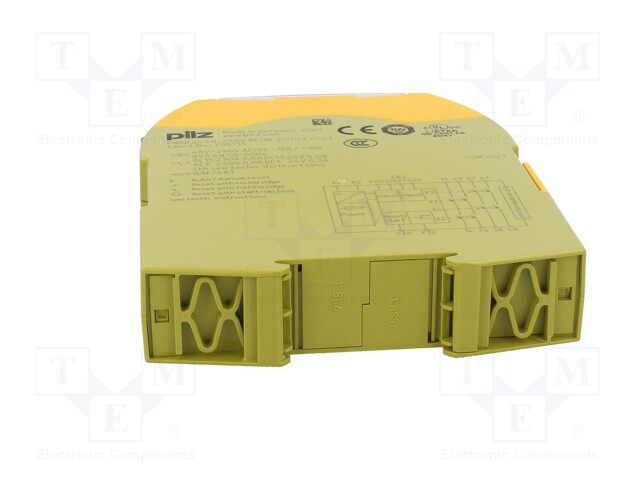

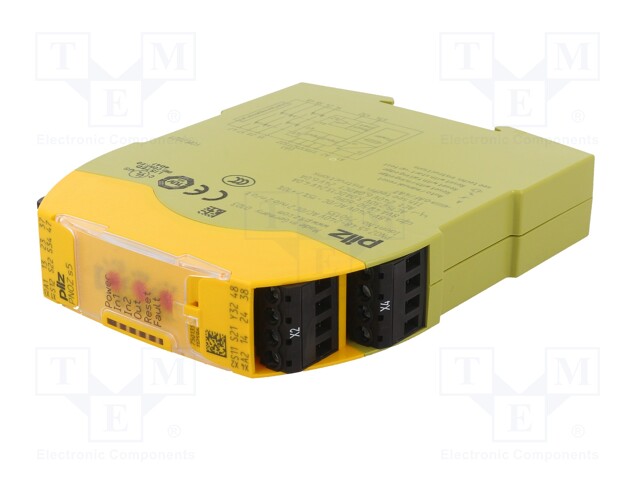

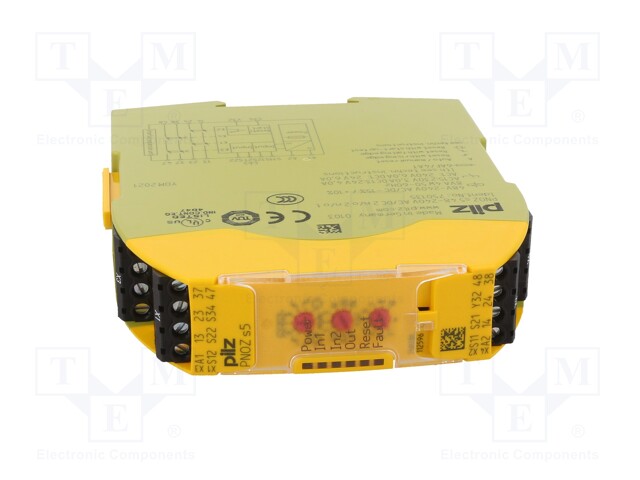

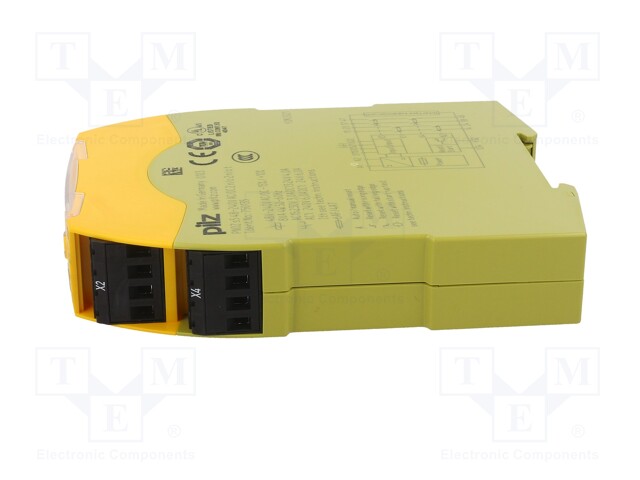

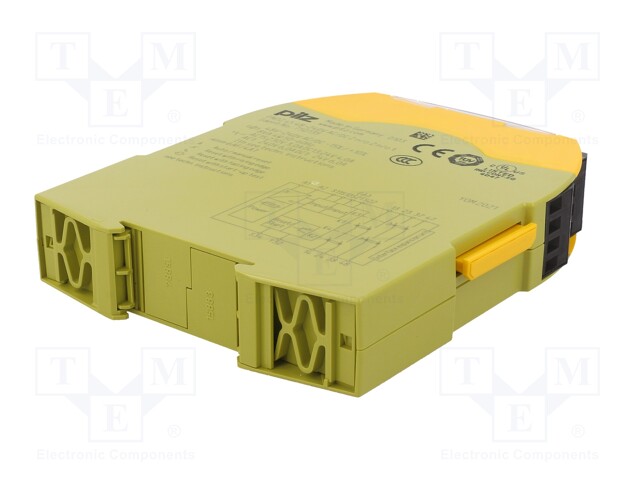

Module: safety relay; Series: PNOZ s5; IN: 3; OUT: 4; Mounting: DIN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 750135
    Manufacturer: PILZ
    Manufacturer code: 750135
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Application
    • Application
    • Body dimensions
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Signal output
    • Safety category
    • Input 1 properties
    • Safety outputs
    • Safety outputs

    396.64 € 396.64 € (wo VAT) 396.64 EUR

    396.64 €

    This combination does not exist.

    Add to Cart

    Specification for Module: safety relay; Series: PNOZ s5; IN: 3; OUT: 4; Mounting: DIN

    Mounting for DIN rail mounting
    Supply voltage 48...240V AC, 48...240V DC
    Operating temperature -10...55°C
    IP rating IP40
    Type of module safety relay
    Series PNOZ s5
    Application emergency stop, safety gates and light beam devices
    Body dimensions 98x22.5x120mm
    Number of inputs 3
    Number of outputs 4
    Electrical connection screw terminals
    Signal output transistor 24V DC
    Safety category 4
    Input 1 properties 2 channels with or without between-channels short circuit detection
    Safety outputs 2x NO, 2x NO delay on
