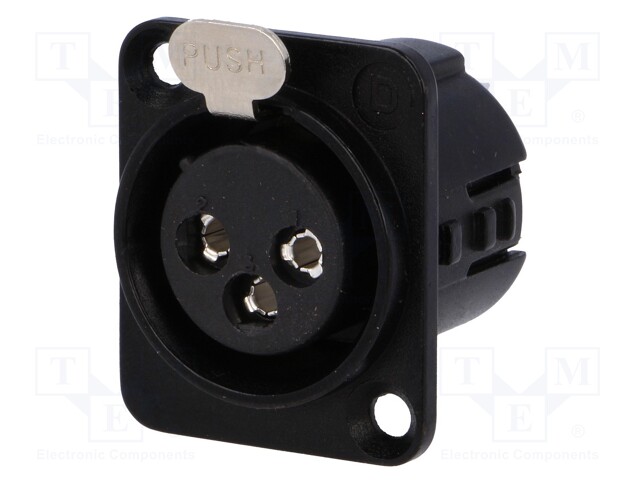

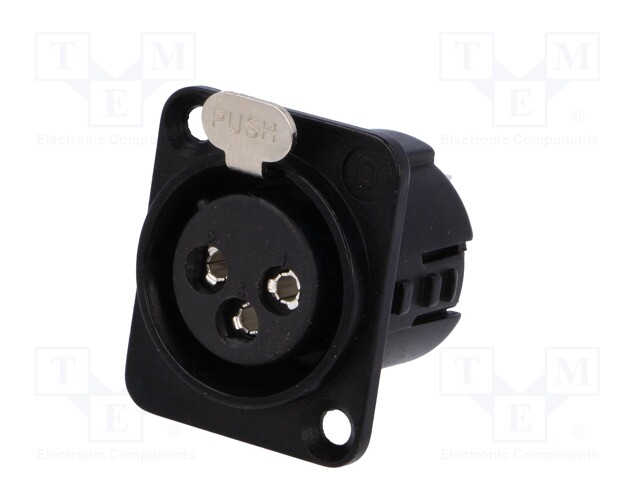

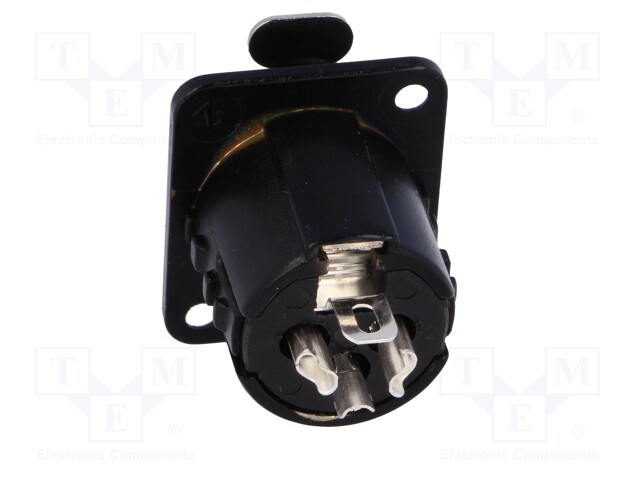

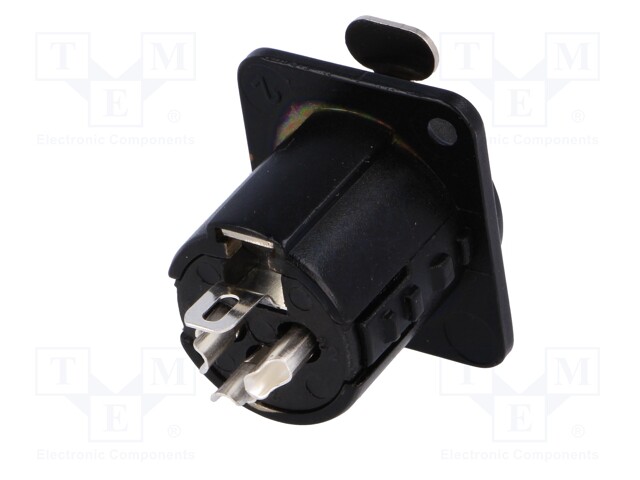

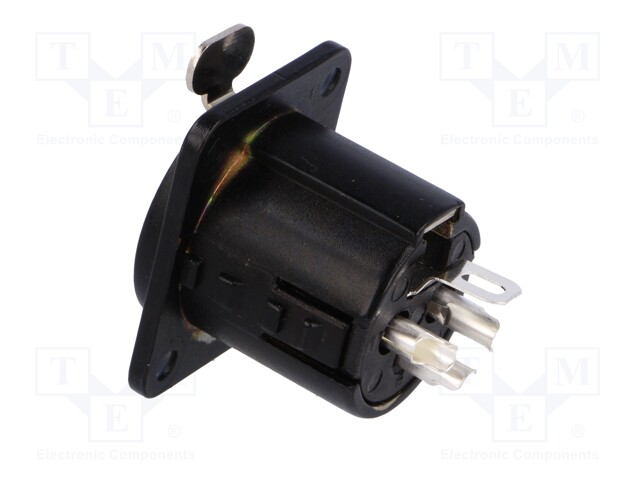

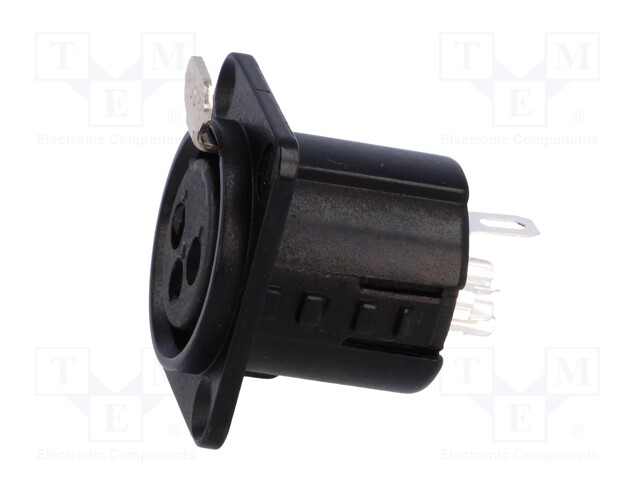

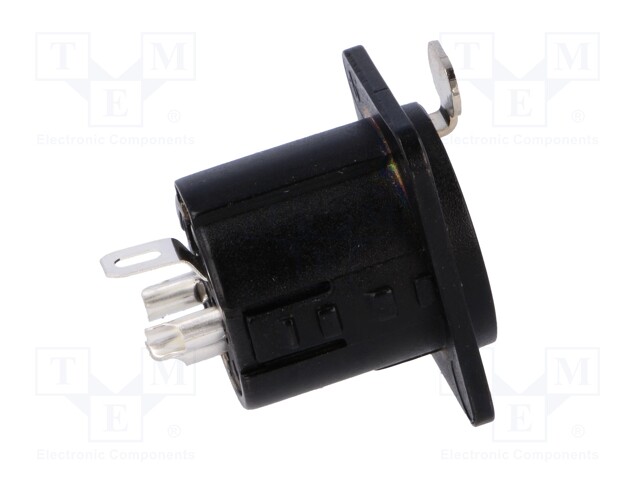

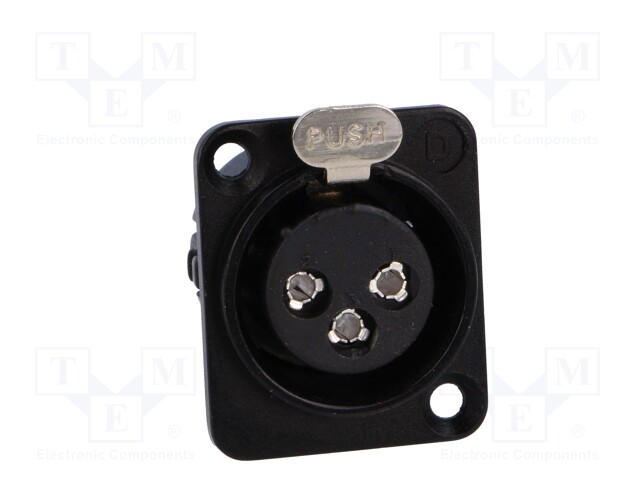

Socket; XLR; female; PIN: 3; straight; soldering; silver plated; 50V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 718-0300
    Manufacturer: DELTRON
    Manufacturer code: 718-0300
    • Case
    • Operating temperature
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Mechanical mounting
    • Mechanical mounting
    • Contact plating
    • Enclosure material
    • Type of connector
    • Number of pins
    • Mounting holes pitch
    • Current rating
    • Rated voltage
    • Spatial orientation
    • Body coating

    14.12 € 14.12 € (wo VAT) 14.120000000000001 EUR

    14.12 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Socket; XLR; female; PIN: 3; straight; soldering; silver plated; 50V

    Case XLR standard
    Operating temperature -25...70°C
    Electrical mounting soldering
    Connector socket
    Kind of connector female
    Mechanical mounting flange (2 holes), for panel mounting, screw
    Contact plating silver plated
    Enclosure material zinc alloy
    Type of connector XLR
    Number of pins 3
    Mounting holes pitch 19x24mm
    Current rating 15A
    Rated voltage 50V
    Spatial orientation straight
    Body coating blackened
