Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; Mounting: DIN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 6652001
    Manufacturer: MURR ELEKTRONIK
    Manufacturer code: 6652001
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Relay variant
    • Type of relay

    19.91 € 19.91 € (wo VAT) 19.91 EUR

    19.91 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: interface; SPDT; Ucoil: 24VDC; 6A; 6A/250VAC; Mounting: DIN

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -25...60°C
    Leads spring clamps
    Contact material AgSnO<sub>2</sub>

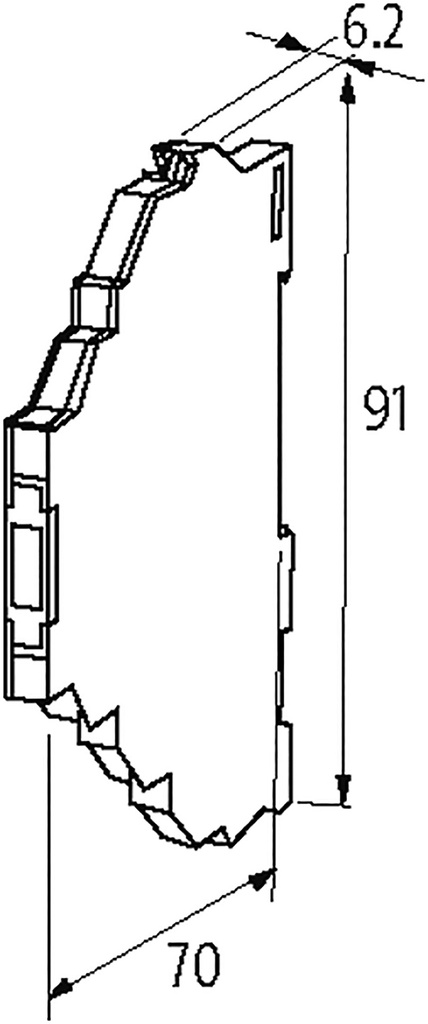

    Body dimensions 91x6.2x70mm
    Switched voltage max. 250V AC, max. 250V DC
    Rated coil voltage 24V DC

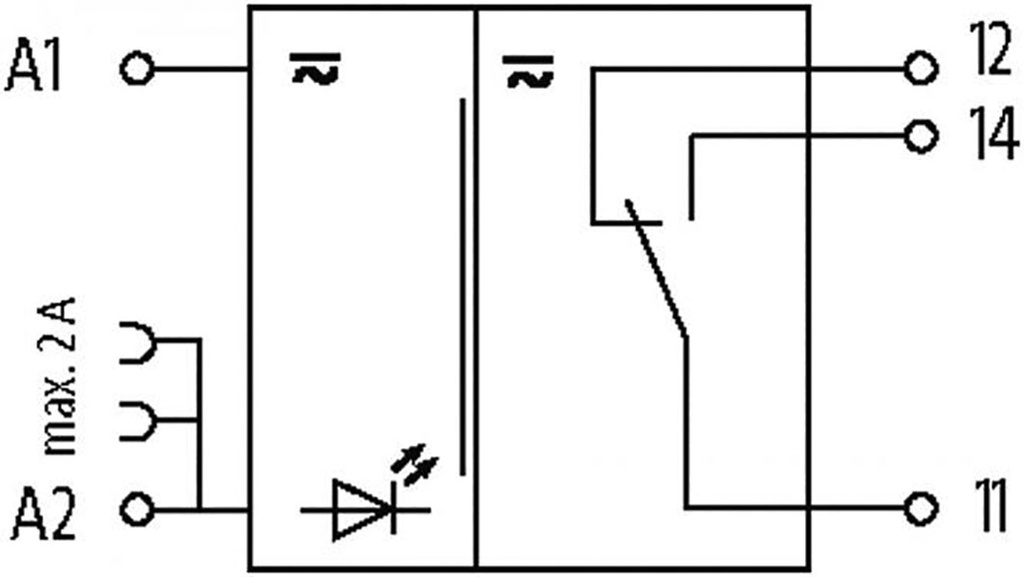

    Contacts configuration SPDT
    AC contacts rating @R 6A / 250V AC
    Relay variant Relay set
    Type of relay interface
