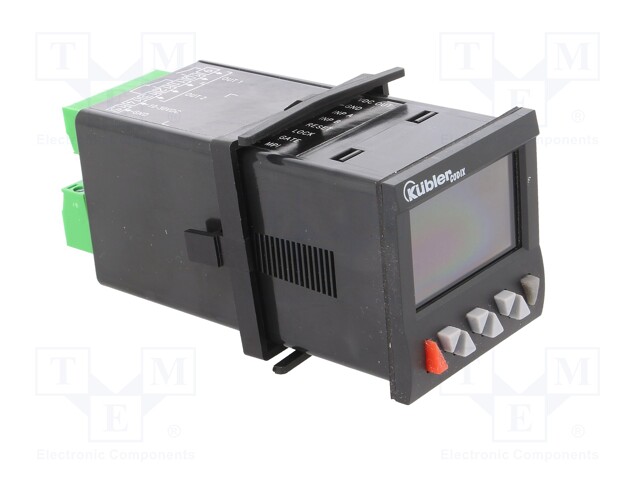

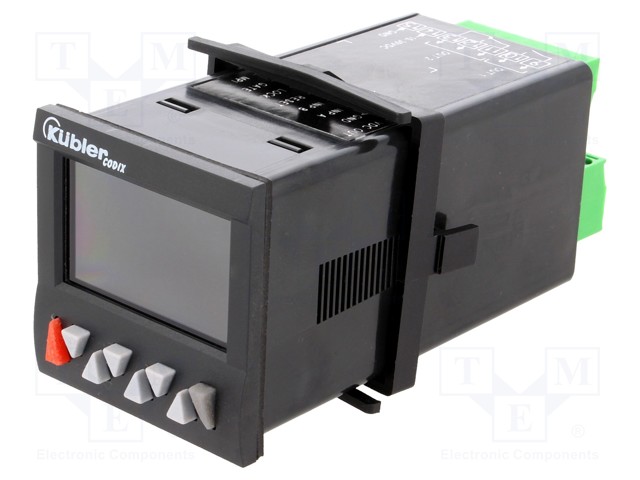

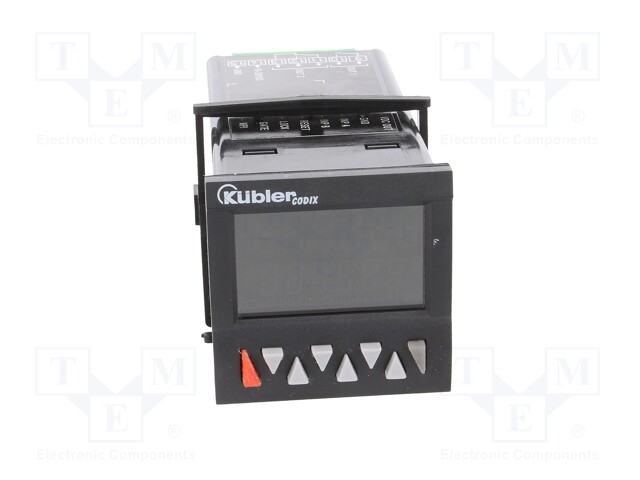

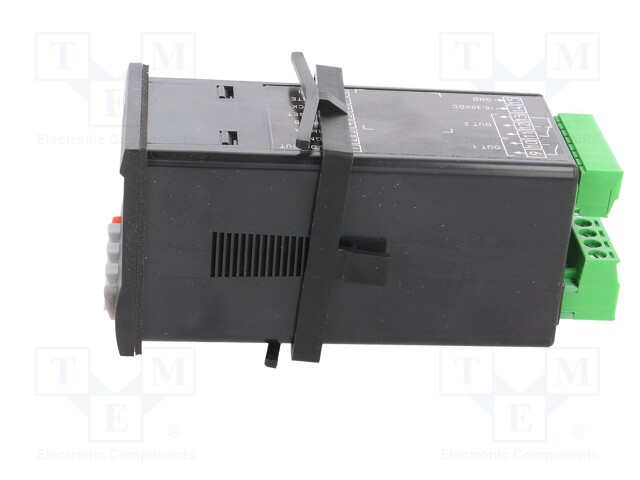

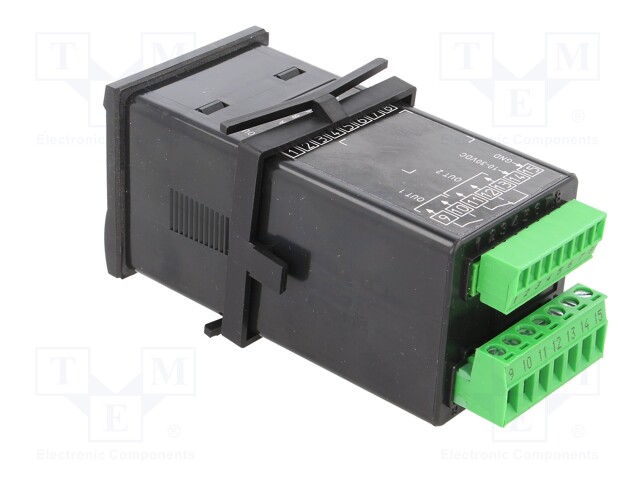

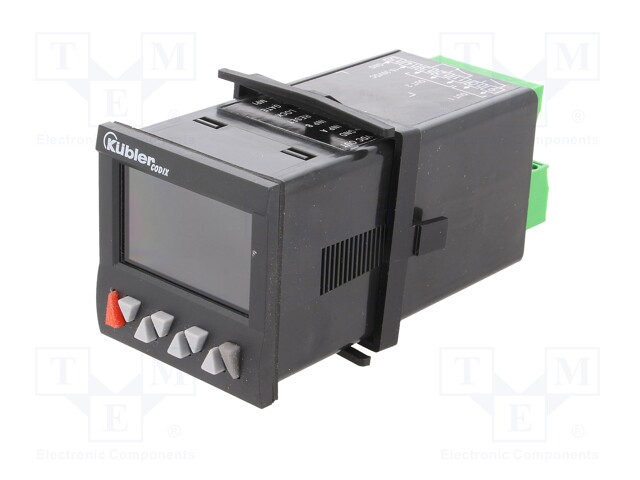

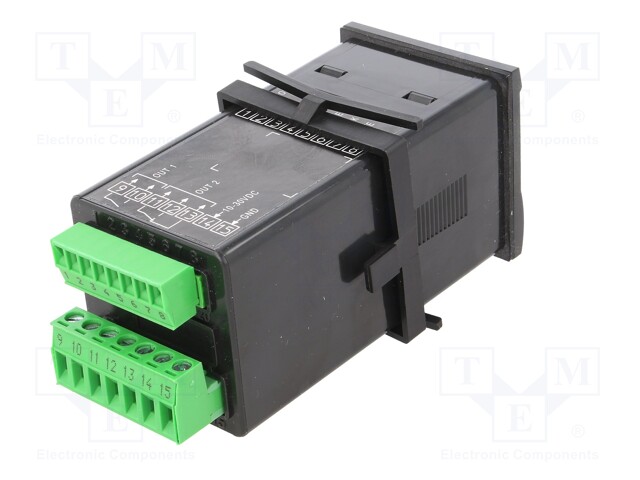

Counter: electronical; 2x LCD; pulses/speed/time; -999999÷999999
Multiples:
1.0
Minimum quantity:
1.0
Product code:
6.924.0103.300
Manufacturer: KUBLER
Manufacturer code: 6.924.0103.300
Product downloads
Specification for Counter: electronical; 2x LCD; pulses/speed/time; -999999÷999999
| Mounting | on panel |
| Supply voltage | 10...30V DC |
| Operating temperature | -20...65°C |
| IP rating | IP65 |
| Mounting hole diameter | 45x45mm |
| Body dimensions | 48x48x98mm |
| Kind of display used | LCD |
| Kind of input 1 | NPN, PNP |
| Electrical connection | screw terminals |
| Counting range | -999999...999999 |
| Kind of output 1 | SPST-NO |
| number of operation modes | 4 |
| Resetting method | electrical, manual |
| Kind of input 2 | NPN, PNP |
| Kind of output 2 | SPDT |
| Type of counted signal | pulses/speed/time |
| Type of counter | electronical |
| Display height 1 | 9mm |
| Max IN1 counting frequency | 55kHz |
| Electrical input 1 parameters | high level: 0.6xUb...30V, low level: 0...0.2xUb |
| The additional control inputs | gate, LOCK, MPI, RESET |
| Display 2 height | 7mm |
| Kind of counter | progressive/reversing |
| Electrical input 2 parameters | high level: 0.6xUb...30V, low level: 0...0.2xUb |
| IN2 max counting frequency | 55kHz |
