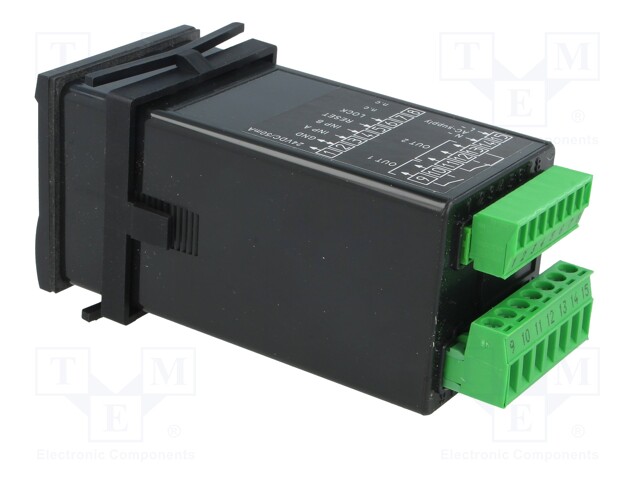

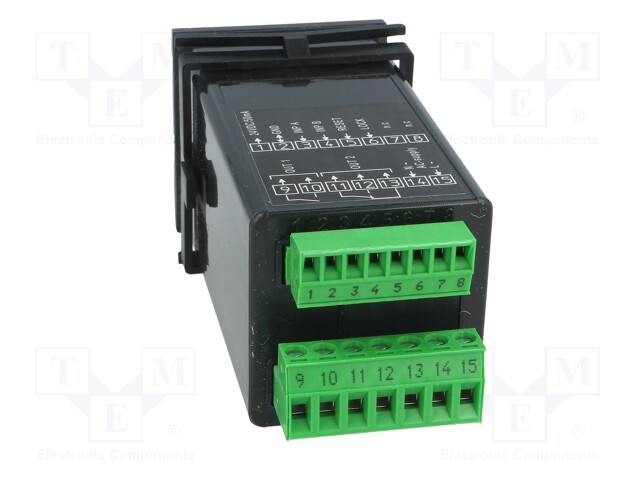

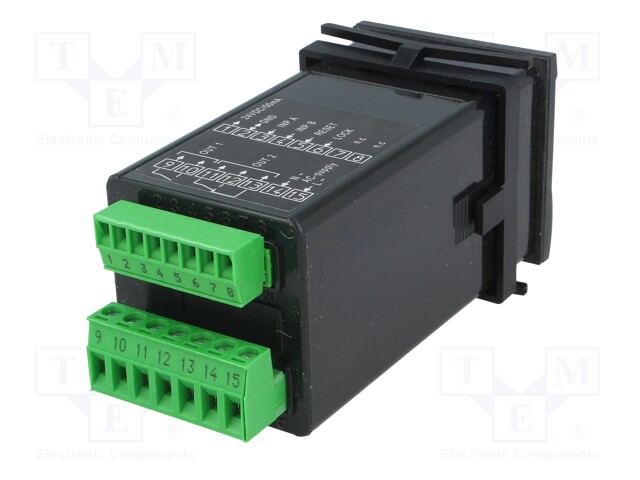

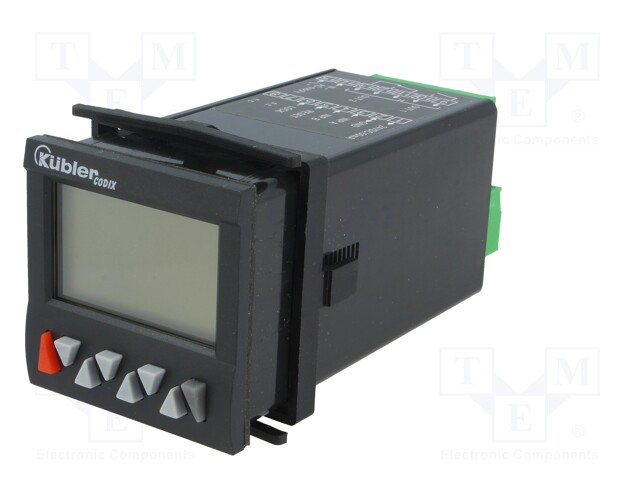

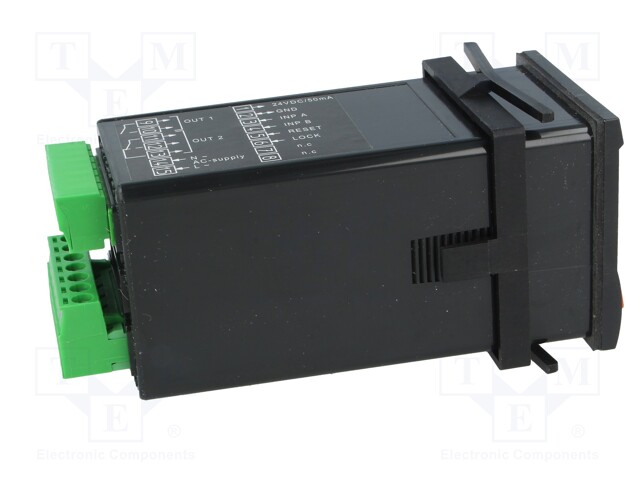

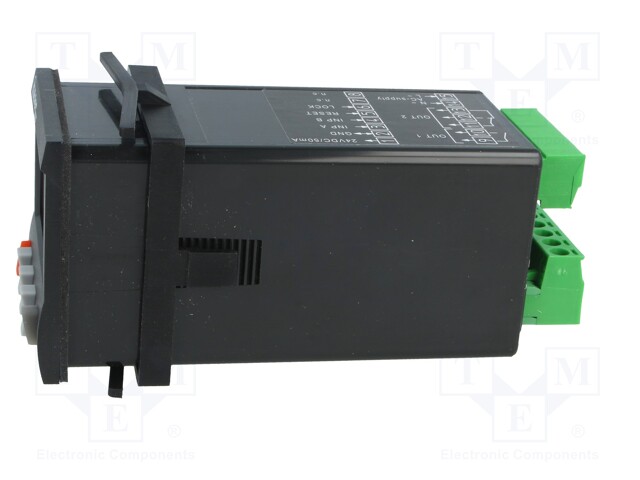

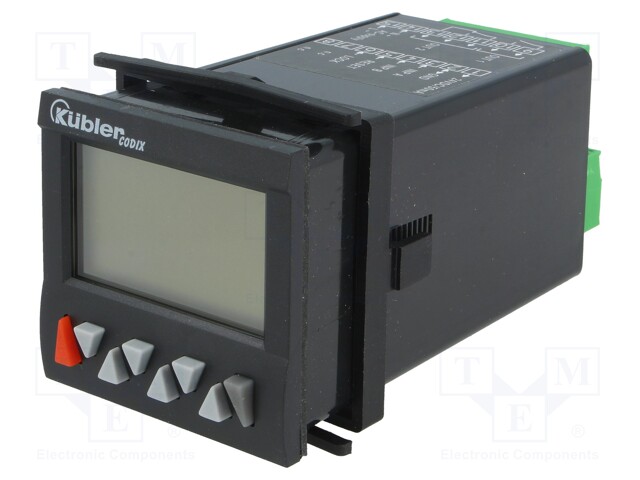

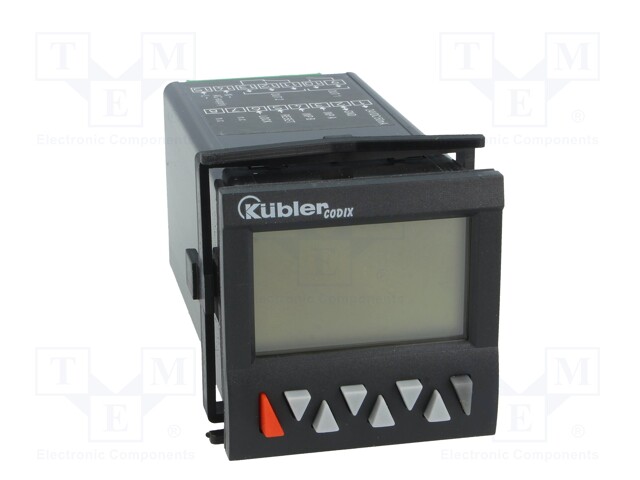

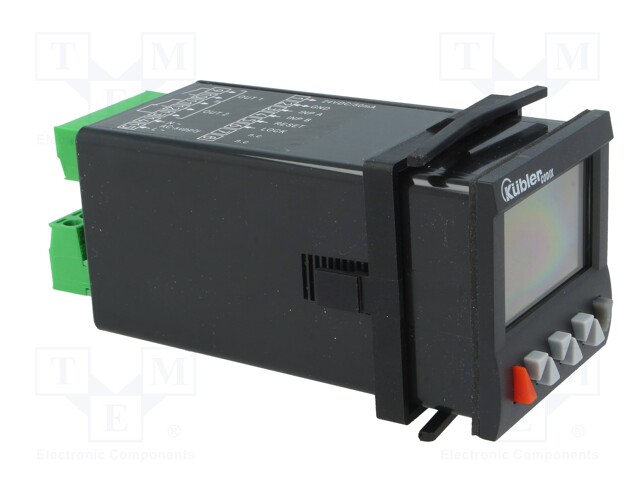

Counter: electronical; 2x LCD; time/pulses; -999999÷999999

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 6.908.0101.0A0
    Manufacturer: KUBLER
    Manufacturer code: 6.908.0101.0A0
    • Mounting
    • Supply voltage
    • Operating temperature
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Kind of input 1
    • Kind of input 1
    • Electrical connection
    • Counting range
    • Kind of output 1
    • Resetting method
    • Resetting method
    • Kind of input 2
    • Kind of input 2
    • Kind of output 2
    • Type of counted signal
    • Type of counter
    • Display height 1
    • Max IN1 counting frequency
    • Electrical input 1 parameters
    • Electrical input 1 parameters
    • The additional control inputs
    • The additional control inputs
    • Display 2 height
    • Kind of counter
    • Electrical input 2 parameters
    • Electrical input 2 parameters
    • IN2 max counting frequency

    145.87 € 145.87 € (wo VAT) 145.87 EUR

    145.87 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Counter: electronical; 2x LCD; time/pulses; -999999÷999999

    Mounting on panel
    Supply voltage 230V AC
    Operating temperature -10...50°C
    Mounting hole diameter 45x45mm
    Body dimensions 48x48x98mm
    Kind of display used LCD
    Kind of input 1 NPN, PNP
    Electrical connection screw terminals
    Counting range -999999...999999
    Kind of output 1 SPST-NO
    Resetting method electrical, manual
    Kind of input 2 NPN, PNP
    Kind of output 2 SPDT
    Type of counted signal time/pulses
    Type of counter electronical
    Display height 1 9mm
    Max IN1 counting frequency 5kHz
    Electrical input 1 parameters high level: 3,5...30V, low level: 0...2V
    The additional control inputs LOCK, RESET
    Display 2 height 7mm
    Kind of counter progressive/reversing
    Electrical input 2 parameters high level: 3,5...30V, low level: 0...2V
    IN2 max counting frequency 5kHz
