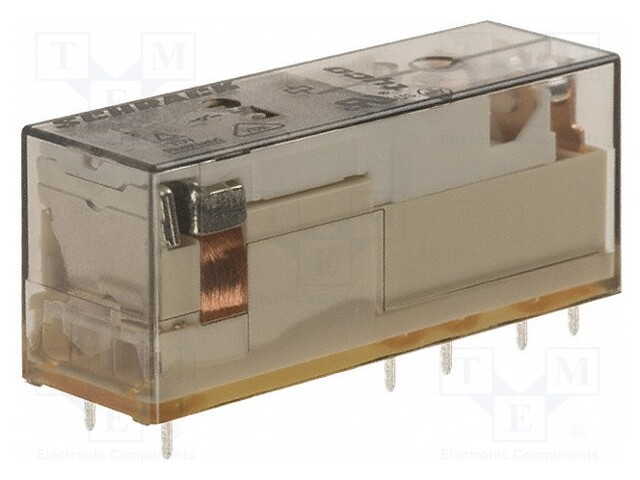

Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 48VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 6-1415055-1
    Manufacturer: TE Connectivity
    Manufacturer code: 6-1415055-1
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series

    23.55 € 23.55 € (wo VAT) 23.55 EUR

    23.55 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 48VDC

    Mounting PCB
    Operating temperature -25...70°C
    Terminal pitch 5mm
    Body dimensions 40x13x16.5mm
    Switched voltage max. 250V DC, max. 400V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 48V DC
    Contacts configuration SPST-NO x2 + SPST-NC x2
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant safety
    Type of relay electromagnetic
    Relay series SR4
