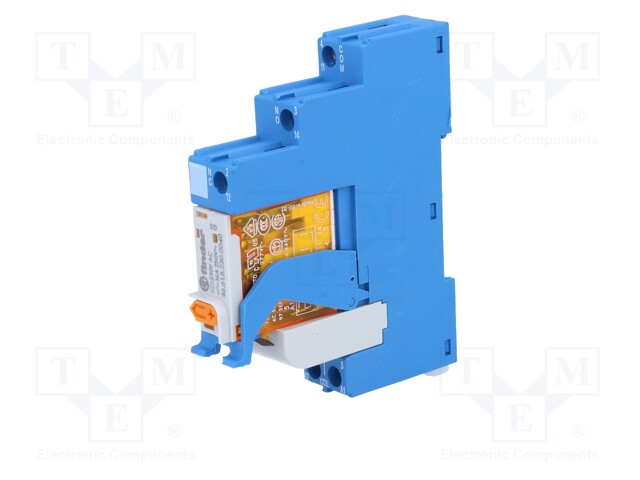

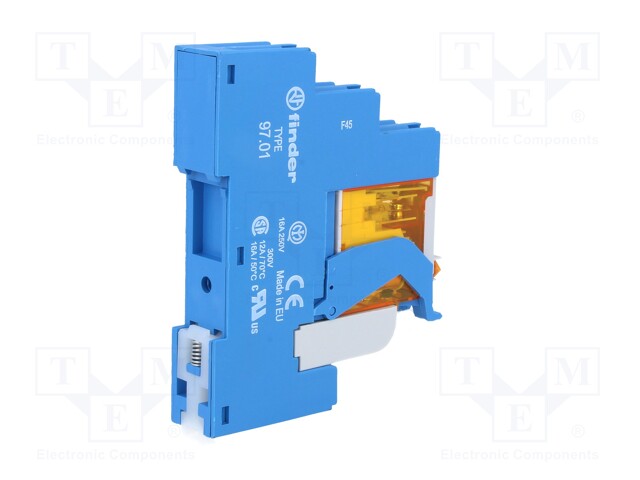

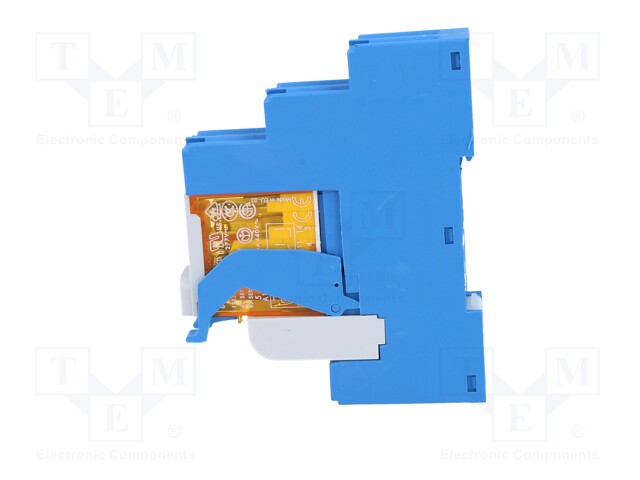

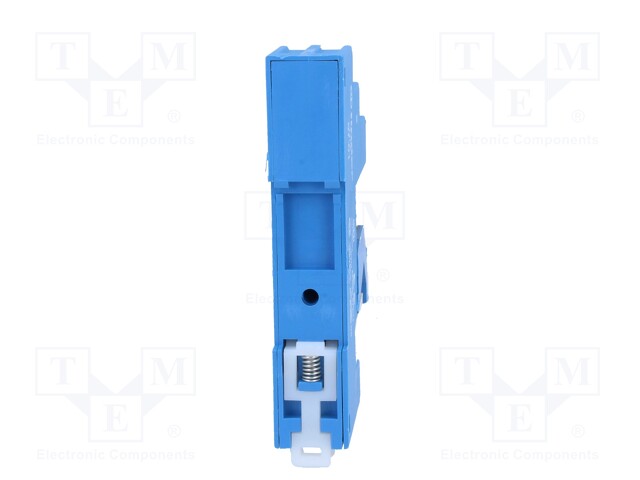

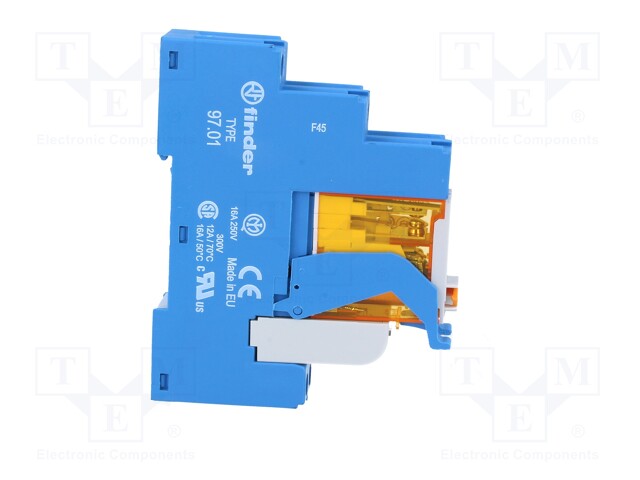

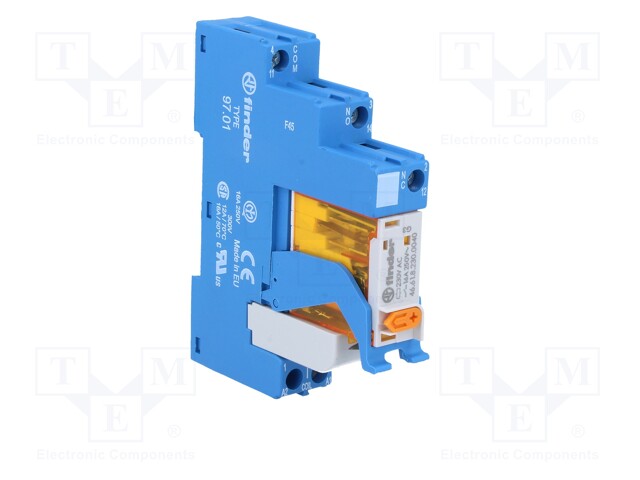

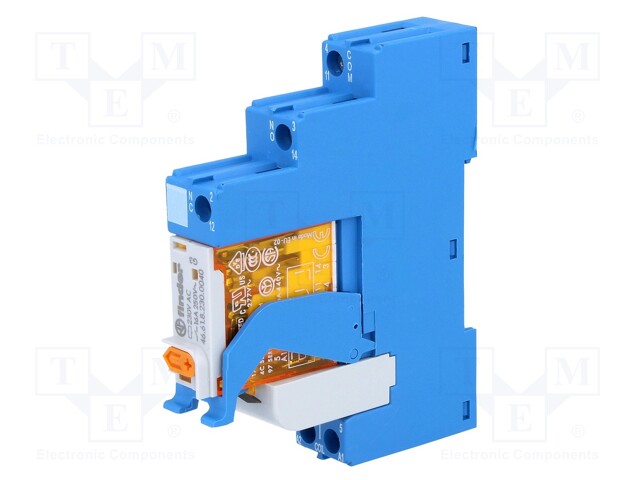

Relay: interface; SPDT; Ucoil: 230VAC; 16A; 16A/250VAC; 16A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 4C.01.8.230.0060SPA
    Manufacturer: FINDER
    Manufacturer code: 4C.01.8.230.0060SPA
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time

    20.93 € 20.93 € (wo VAT) 20.93 EUR

    20.93 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: interface; SPDT; Ucoil: 230VAC; 16A; 16A/250VAC; 16A/30VDC

    Mounting for DIN rail mounting
    Max. operating current 16A
    Operating temperature -40...70°C
    IP rating IP20
    Leads screw terminals

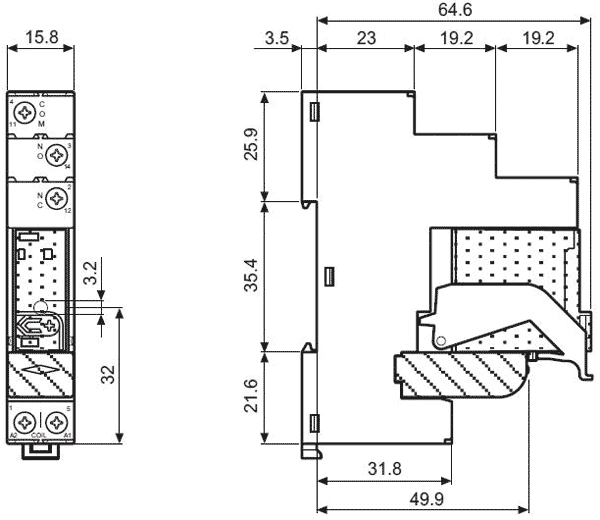

    Body dimensions 82.9x15.8x64.6mm
    Mechanical durability 1000000cycles
    Switched voltage max. 220V DC, max. 440V AC
    Indication LED
    Switching capacity 4kVA

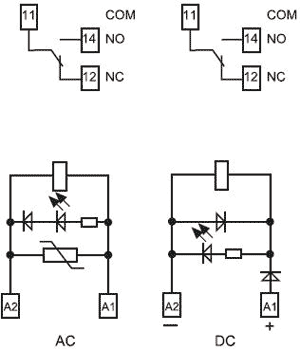

    Contacts configuration SPDT
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series 4C.01
    Operate time 15ms
    Release time 5ms
