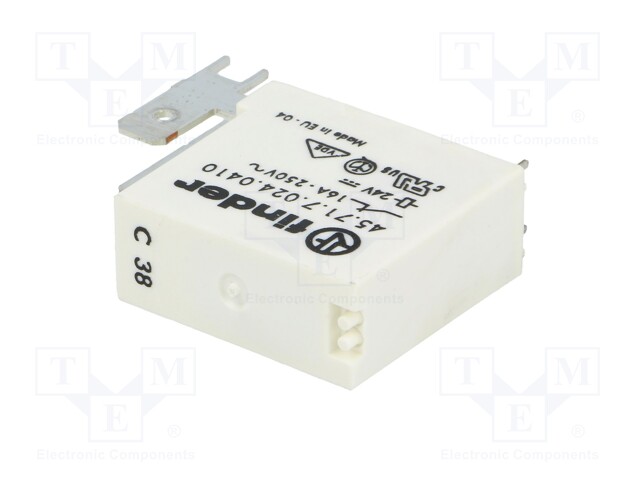

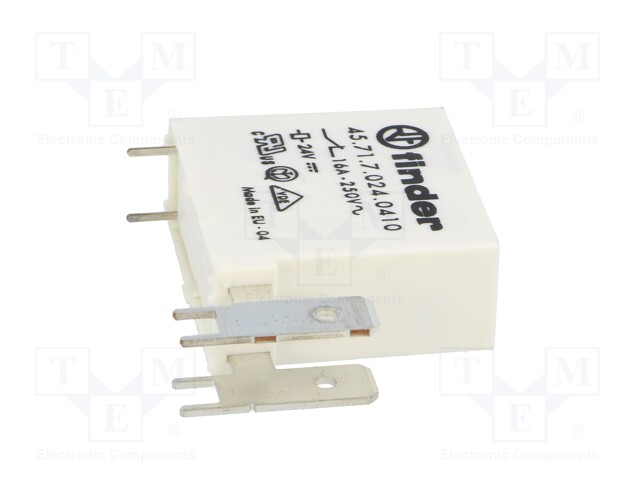

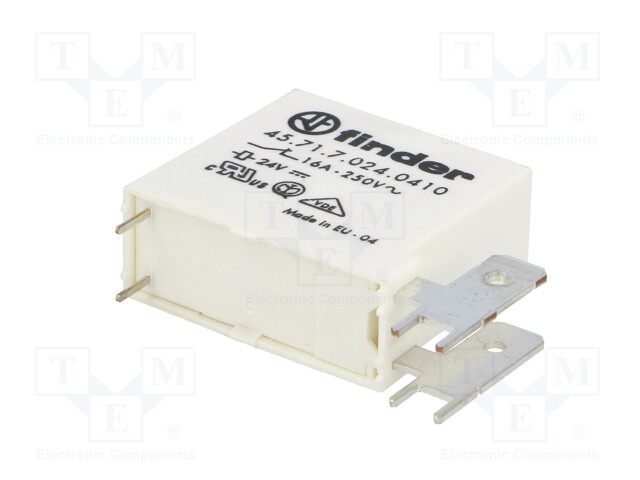

Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; Icontacts max: 30A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 45.71.7.024.0410
    Manufacturer: FINDER
    Manufacturer code: 45.71.7.024.0410
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Coil current

    9.06 € 9.06 € (wo VAT) 9.06 EUR

    9.06 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NC; Ucoil: 24VDC; Icontacts max: 30A

    Mounting PCB
    Operating temperature -40...152°C
    Contact material AgCdO
    Switched voltage max. 250V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NC
    Contact current max. 30A
    Relay variant miniature
    Type of relay electromagnetic
    Relay series 45.71
    Coil current 15mA
