Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 4-1393789-5
    Manufacturer: TE Connectivity
    Manufacturer code: 4-1393789-5
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    2.61 € 2.61 € (wo VAT) 2.61 EUR

    2.61 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Mounting SMT
    Operating temperature -40...85°C
    Terminal pitch 2.54mm

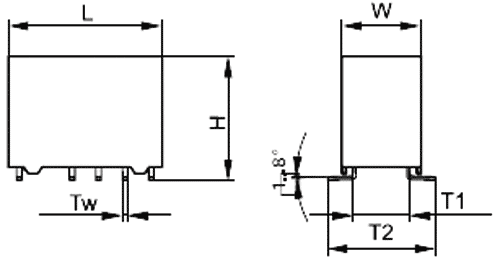

    Body dimensions 14.5x7.2x9.8mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature, monostable
    Coil voltage max. 24.2V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Relay series P2
