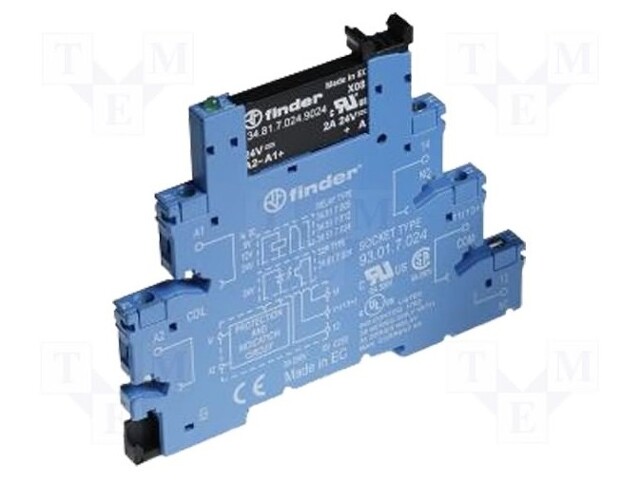

Relay: interface; SPST-NO; Ucoil: 24VDC; 0.1A; 0.1A/48VDC; IP20

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 38.81.7.024.7048
    Manufacturer: FINDER
    Manufacturer code: 38.81.7.024.7048
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Switched voltage
    • Indication
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series

    29.95 € 29.95 € (wo VAT) 29.95 EUR

    29.95 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPST-NO; Ucoil: 24VDC; 0.1A; 0.1A/48VDC; IP20

    Mounting for DIN rail mounting
    Max. operating current 100mA
    Operating temperature -20...55°C
    IP rating IP20
    Leads screw terminals
    Body dimensions 87.9x6.2x75.6mm
    Kit contents 34.81.7.024.7048, 93.01.7.024
    Switched voltage 1.5...48V DC
    Indication LED
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 0.1A / 48V DC
    Relay variant Relay set
    Type of relay interface
    Relay series 38.81
