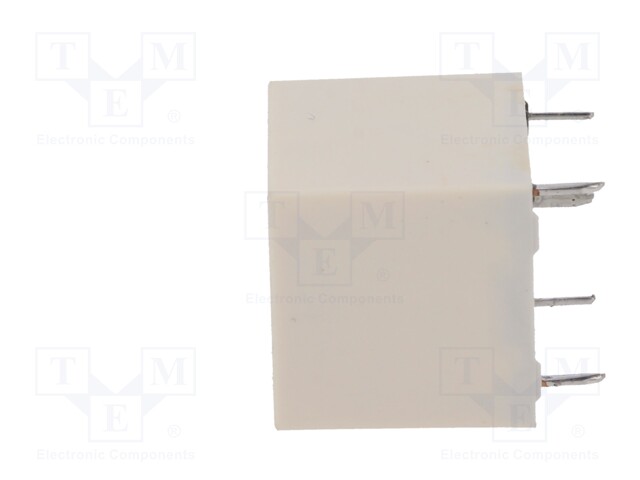

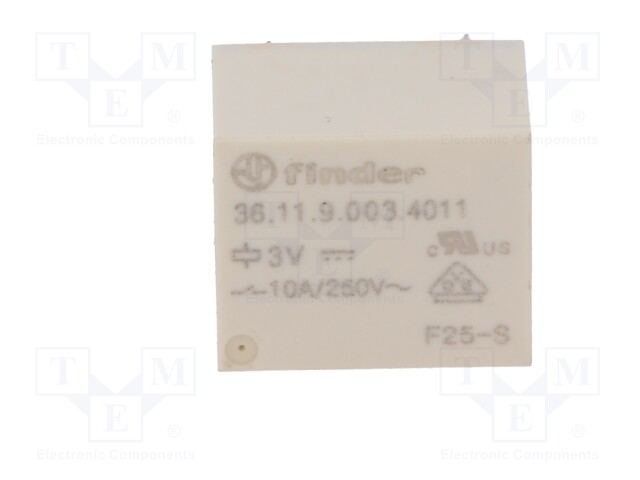

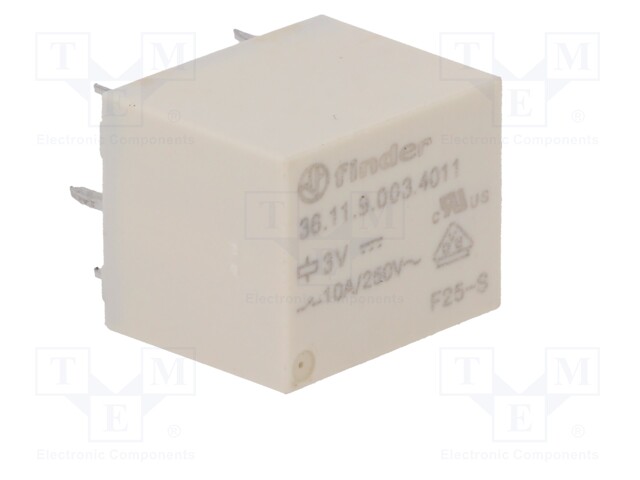

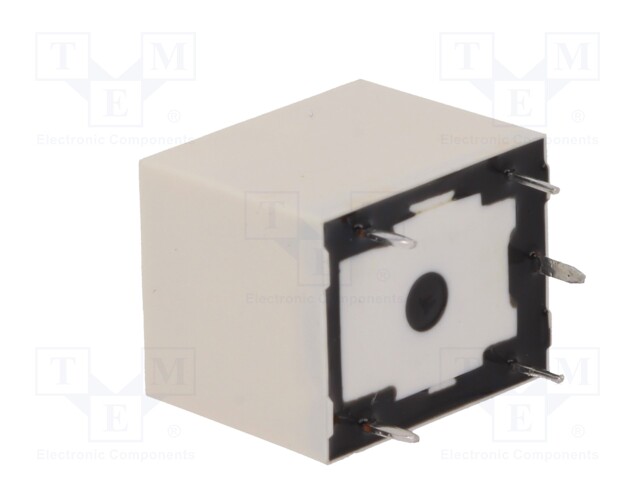

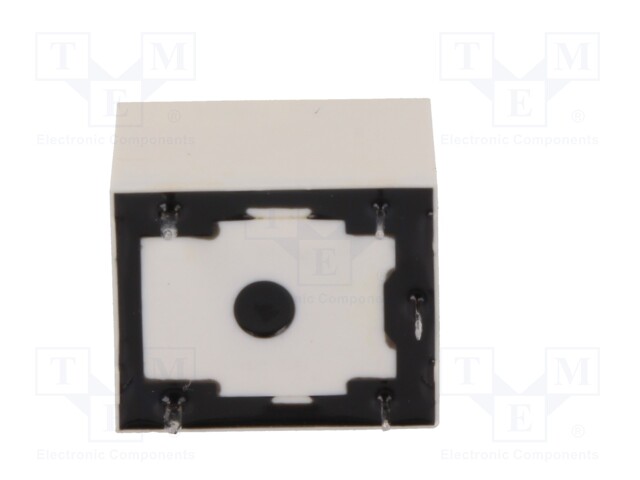

Relay: electromagnetic; SPDT; Ucoil: 3VDC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 36.11.9.003.4011
    Manufacturer: FINDER
    Manufacturer code: 36.11.9.003.4011
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    3.41 € 3.41 € (wo VAT) 3.41 EUR

    3.41 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 3VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm

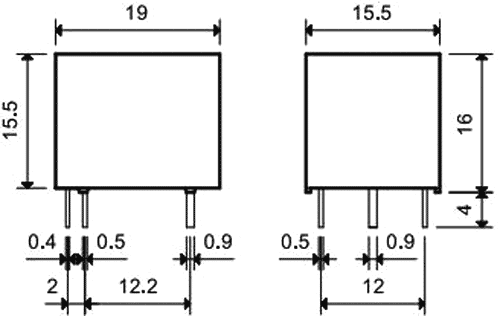

    Body dimensions 19x15.5x15.5mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 25Ω
    Rated coil voltage 3V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Coil voltage max. 3.9V DC
    Type of relay electromagnetic
    Coil voltage min. 2.2V DC
    Coil power consumption 400mW
    Relay series 36.11
