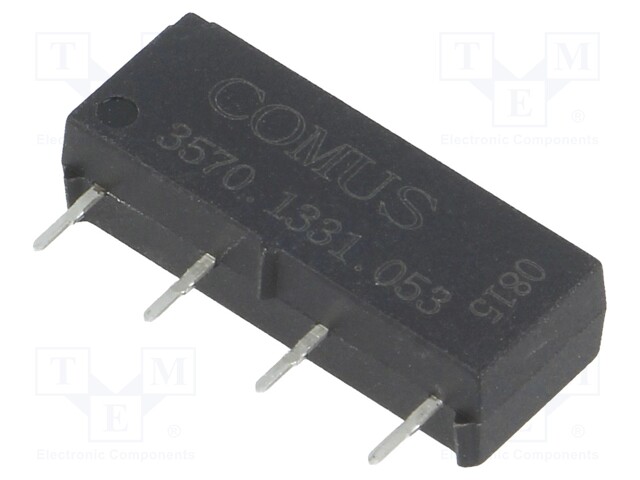

Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W; THT; SIP

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3570.1331.053
    Manufacturer: COMUS
    Manufacturer code: 3570.1331.053
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Optional equipment

    2.13 € 2.13 € (wo VAT) 2.13 EUR

    2.13 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W; THT; SIP

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 5.08mm
    Body dimensions 19x7.7x5.08mm
    Switched voltage max. 150V DC
    Switching capacity 10W
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 200mΩ
    Contact current max. 500mA
    Coil voltage max. 7V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Relay series 3570
    Optional equipment diode
