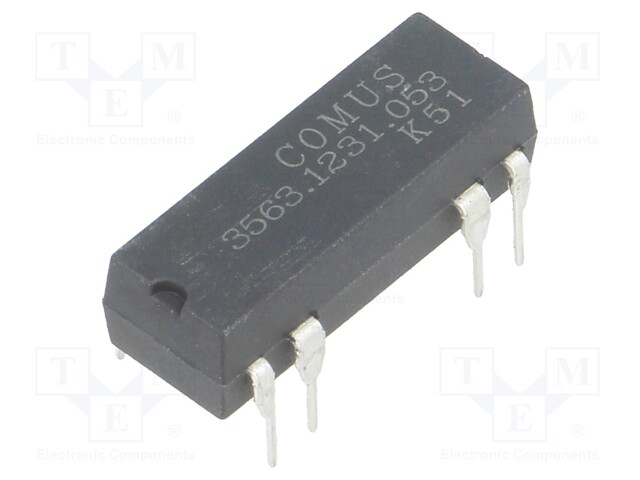

Relay: reed; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; Rcoil: 200Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3563.1231.053
    Manufacturer: COMUS
    Manufacturer code: 3563.1231.053
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Optional equipment

    6.57 € 6.57 € (wo VAT) 6.57 EUR

    6.57 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; Rcoil: 200Ω

    Mounting THT
    Case DIP14
    Operating temperature -20...85°C
    Terminal pitch 2.54mm
    Body dimensions 19.5x6.9x6.9mm
    Switched voltage max. 100V DC
    Switching capacity 5W
    Coil resistance 200Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    Contact resistance 200mΩ
    Contact current max. 400mA
    Coil voltage max. 7V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Relay series 3563
    Optional equipment diode
