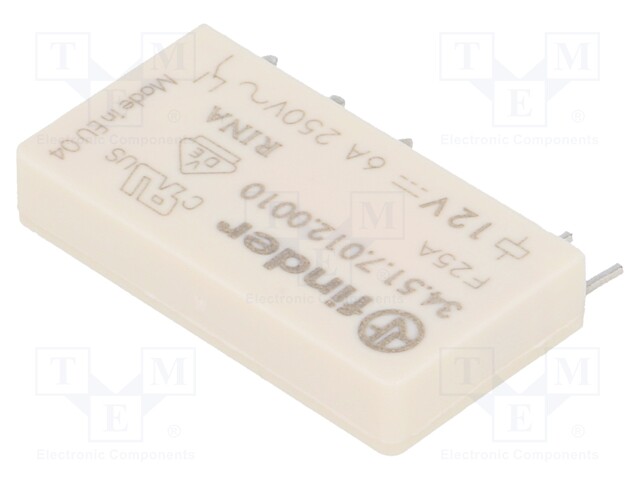

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 34.51.7.012.0010
    Manufacturer: FINDER
    Manufacturer code: 34.51.7.012.0010
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Coil current

    8.94 € 8.94 € (wo VAT) 8.94 EUR

    8.94 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 28x5x15mm
    Mechanical durability 1000000cycles
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 840Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 170mW
    Relay series 34.51
    Coil current 14.2mA
