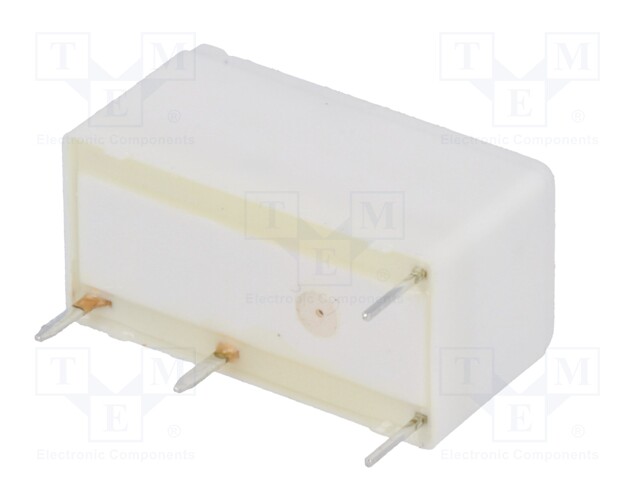

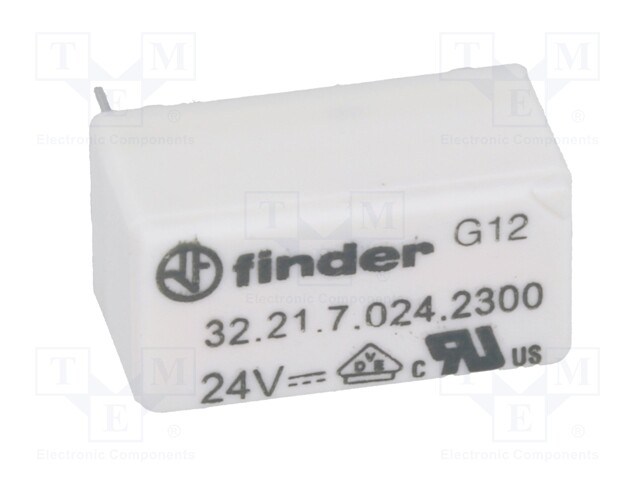

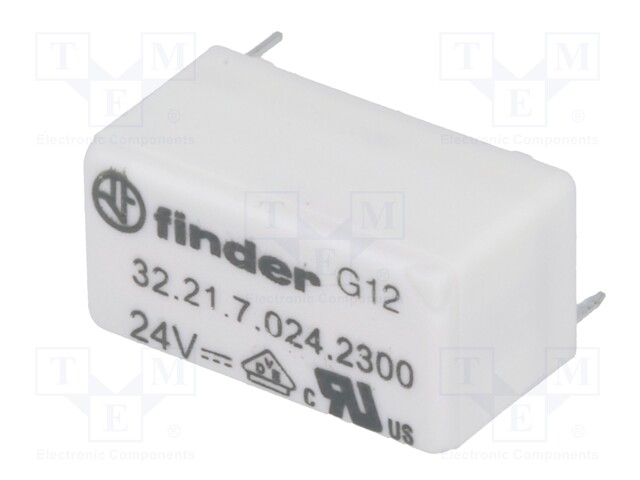

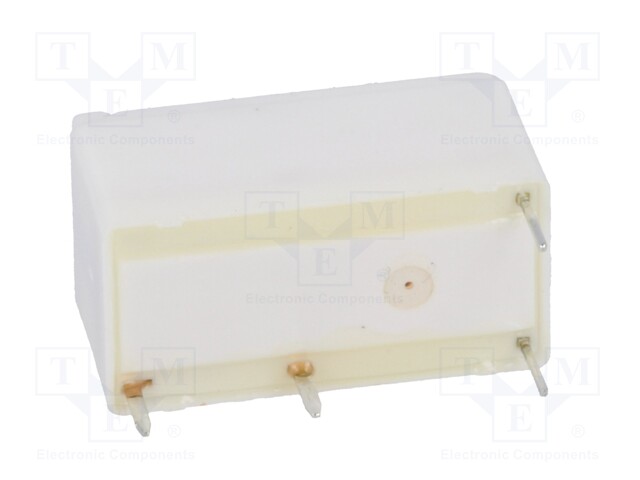

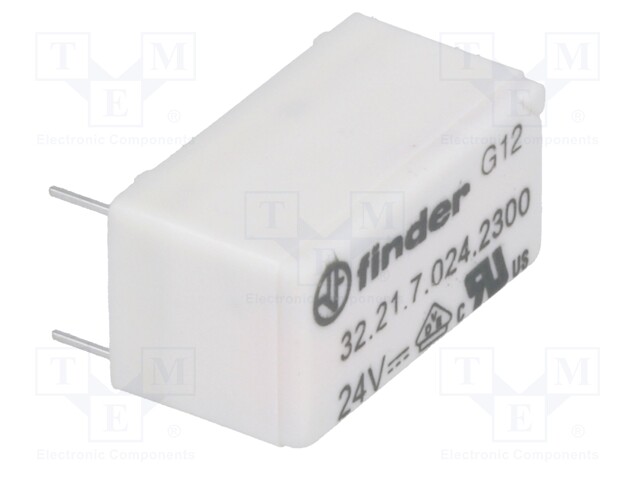

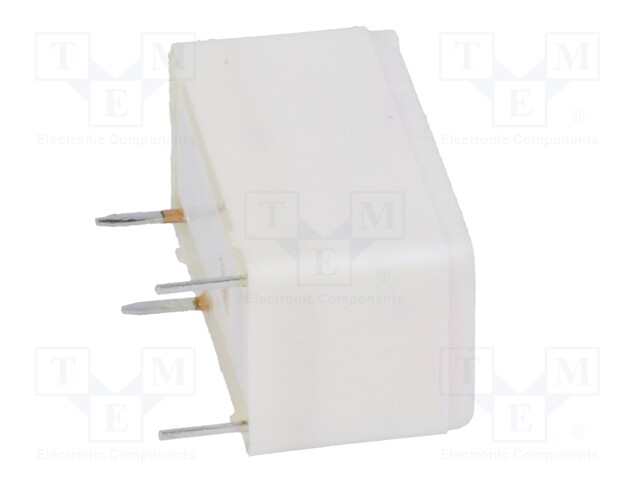

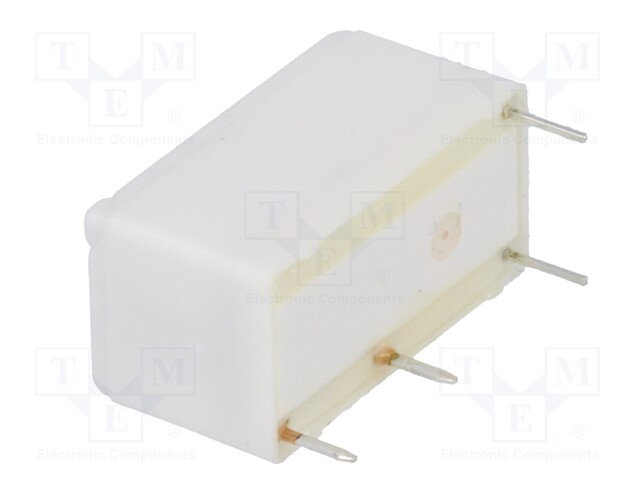

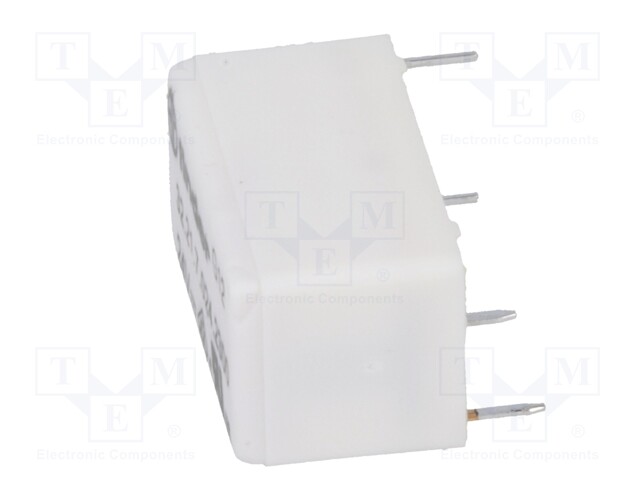

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 6A/250VAC; 3A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 32.21.7.024.2300
    Manufacturer: FINDER
    Manufacturer code: 32.21.7.024.2300
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    5.85 € 5.85 € (wo VAT) 5.8500000000000005 EUR

    5.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 6A/250VAC; 3A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgCdO
    Terminal pitch 7.62mm
    Body dimensions 20x10.7x10mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series 32.21
    Coil current 8.3mA
