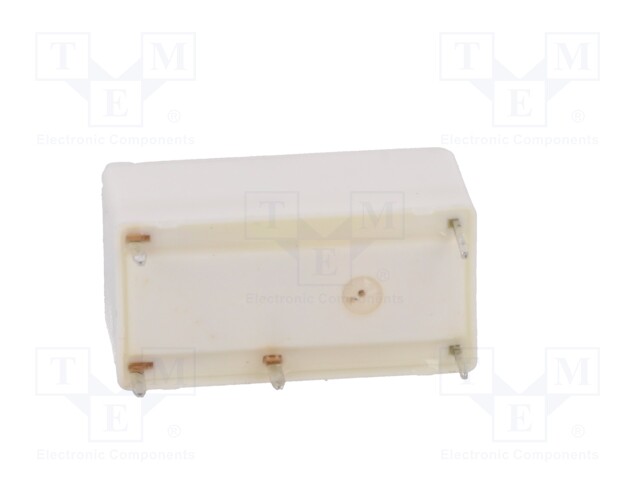

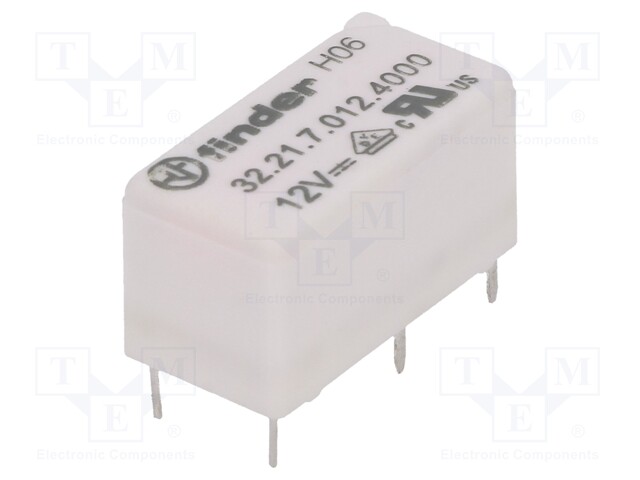

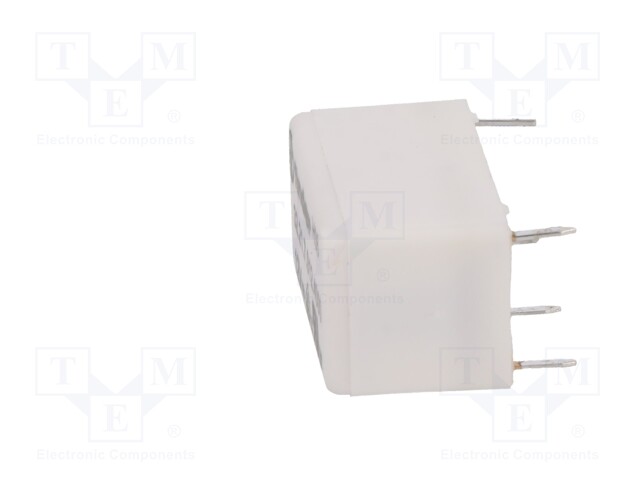

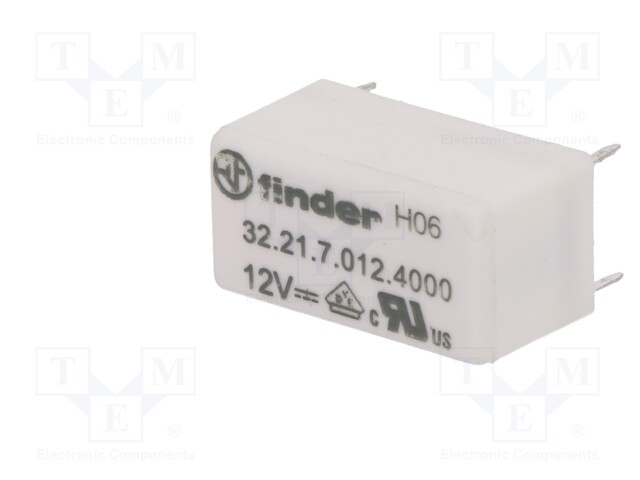

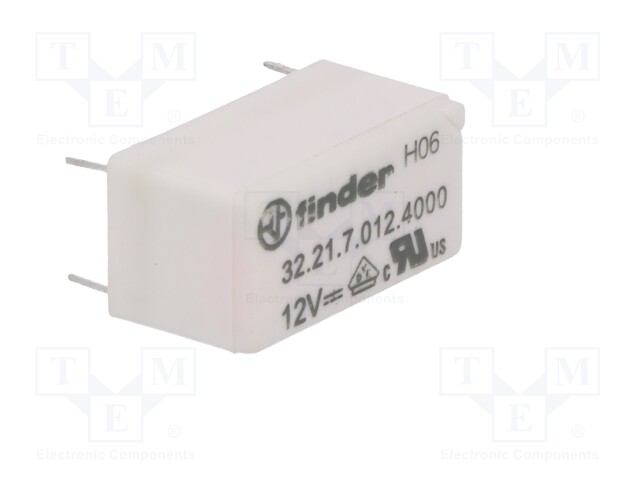

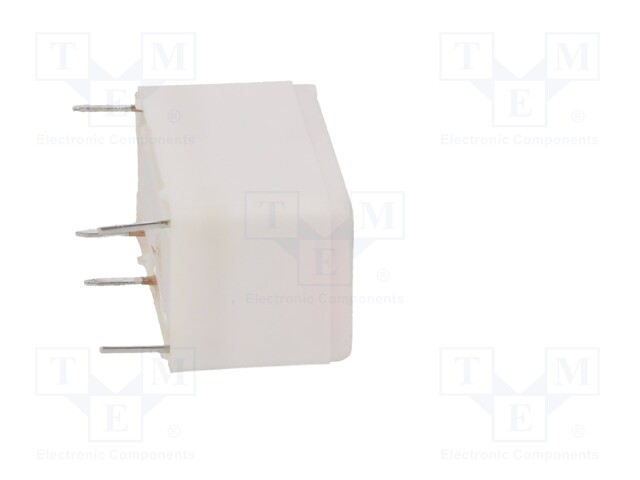

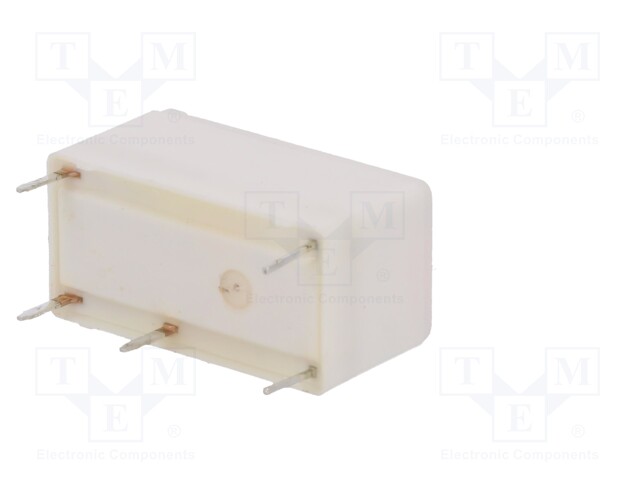

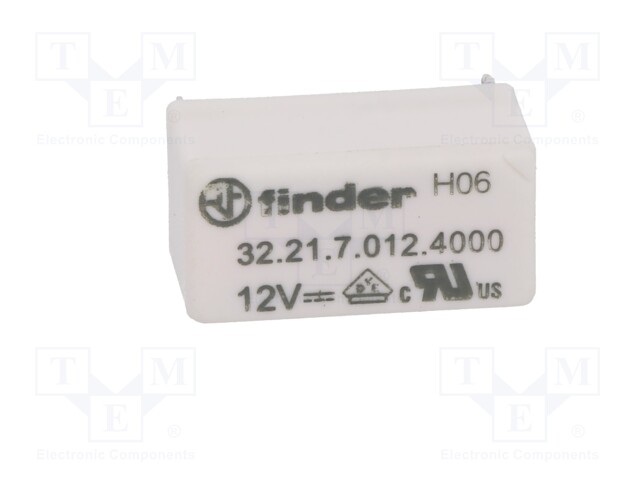

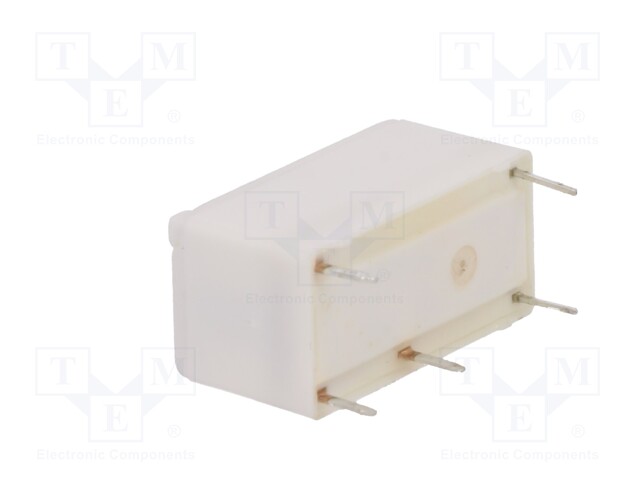

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 3A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 32.21.7.012.4000
    Manufacturer: FINDER
    Manufacturer code: 32.21.7.012.4000
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    6.99 € 6.99 € (wo VAT) 6.99 EUR

    6.99 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 3A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm
    Body dimensions 20x10.7x10mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series 32.21
    Coil current 16mA
