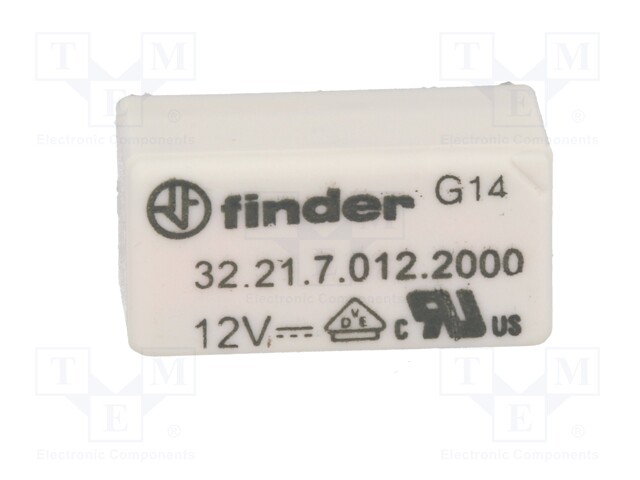

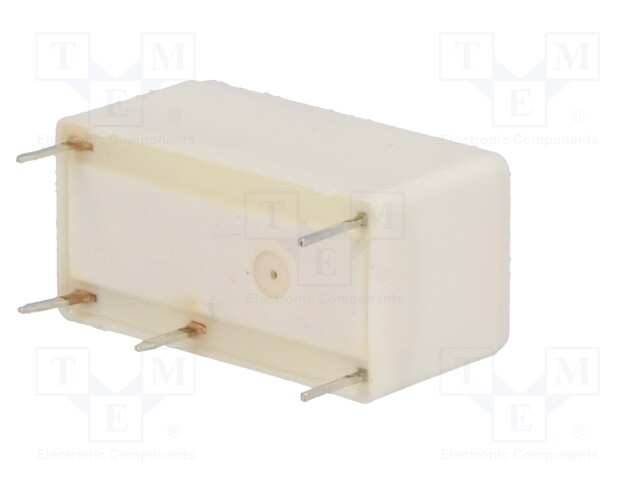

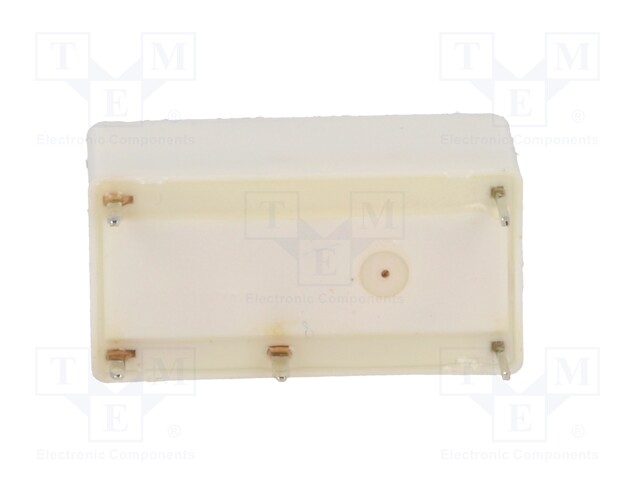

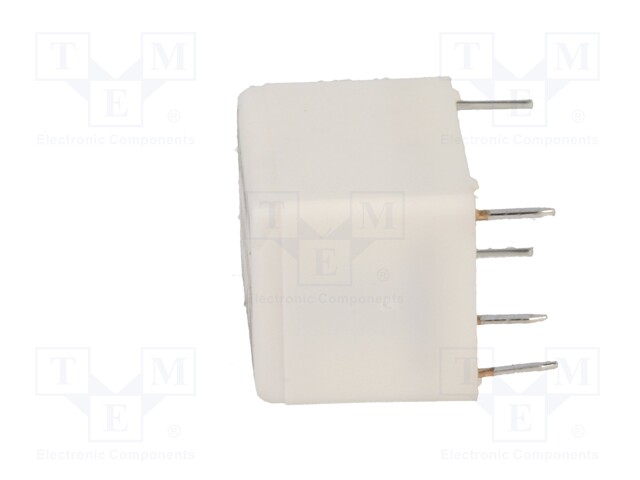

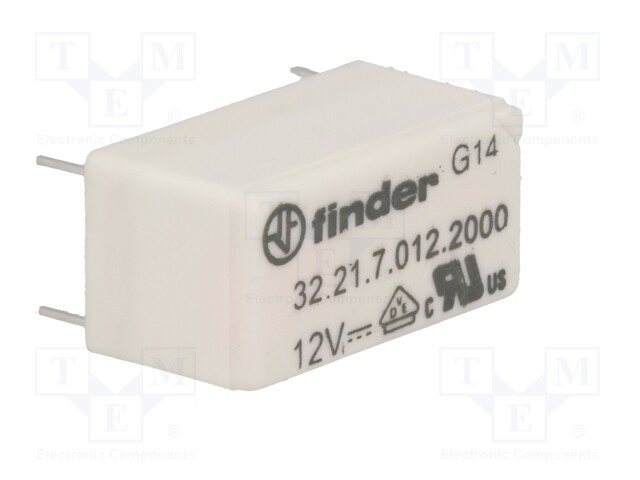

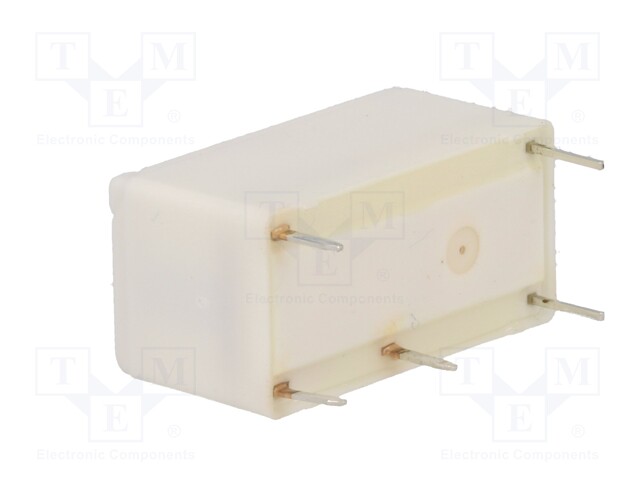

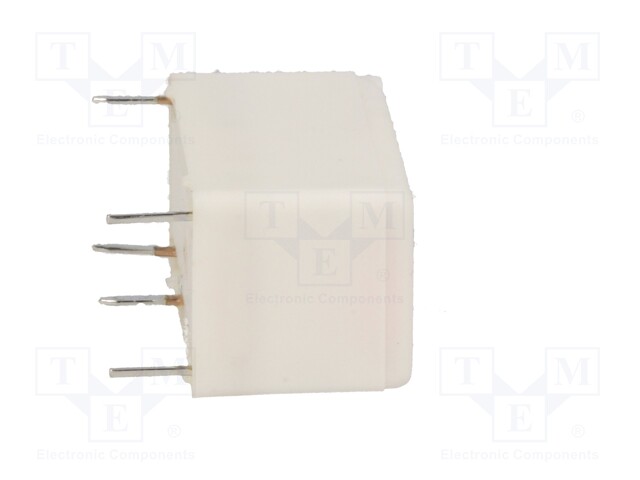

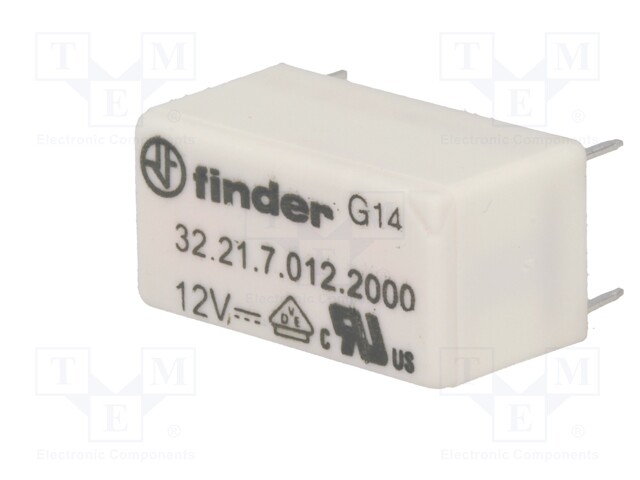

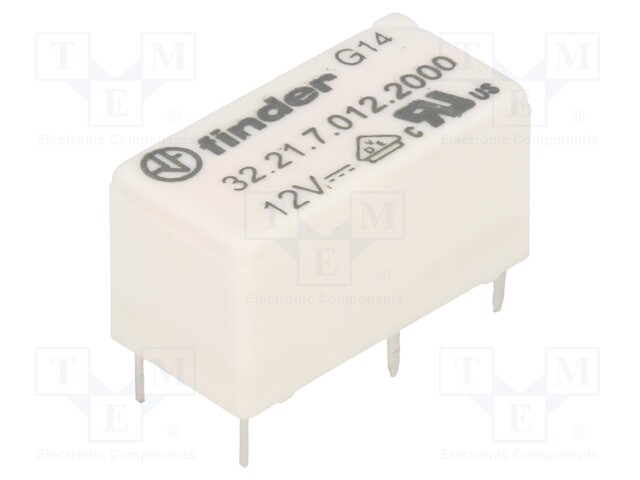

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 3A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 32.21.7.012.2000
    Manufacturer: FINDER
    Manufacturer code: 32.21.7.012.2000
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    5.85 € 5.85 € (wo VAT) 5.8500000000000005 EUR

    5.85 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 3A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgCdO
    Terminal pitch 7.62mm
    Body dimensions 20x10.7x10mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series 32.21
    Coil current 16mA
