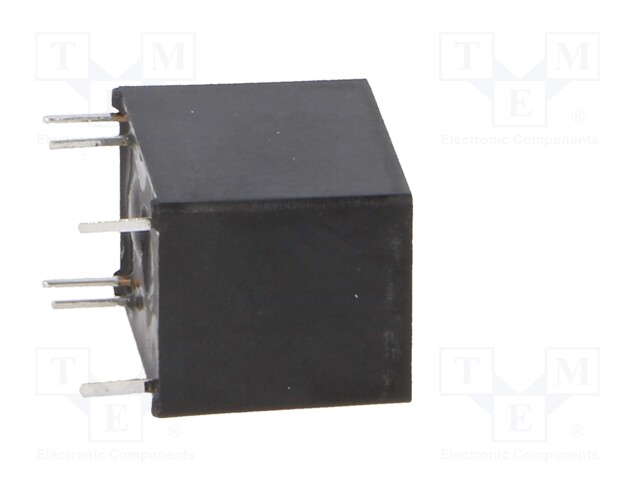

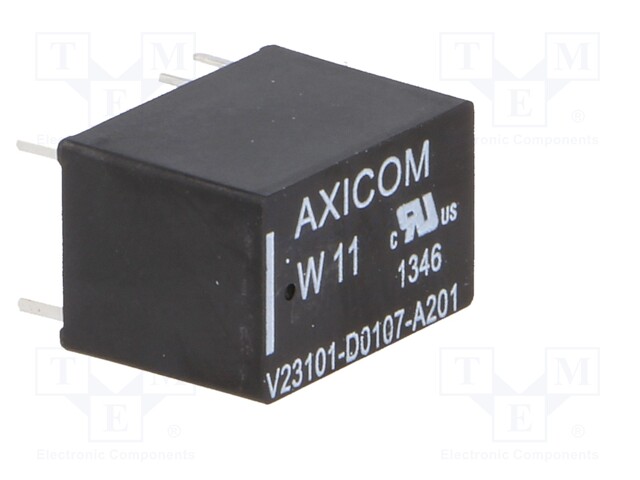

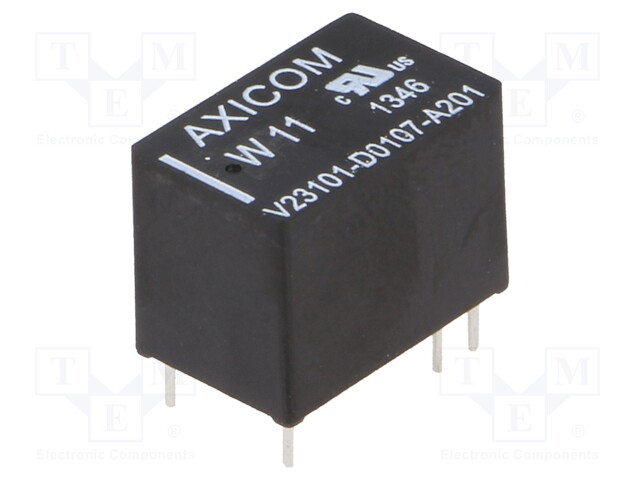

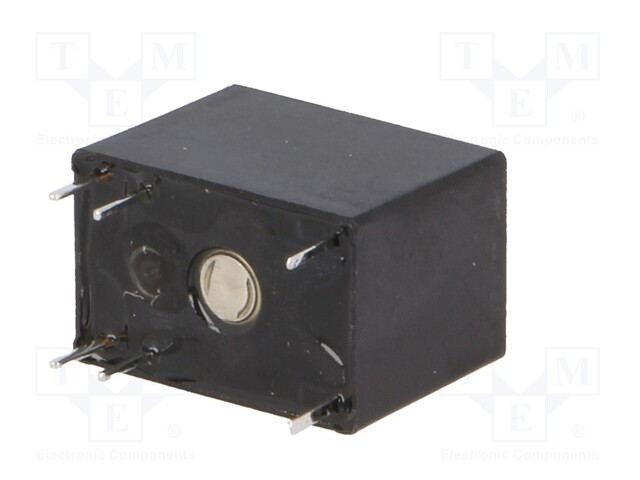

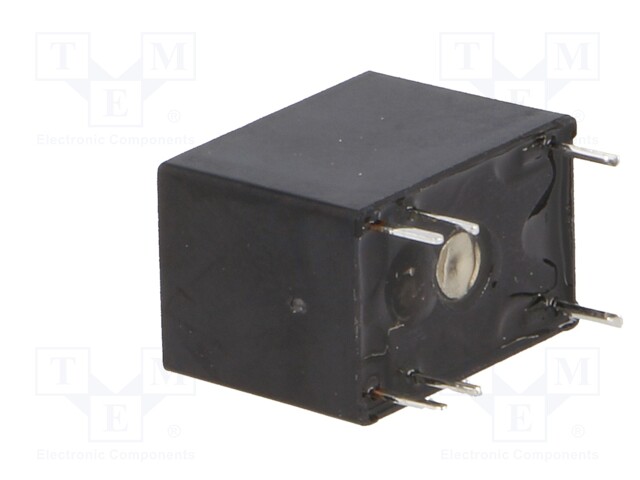

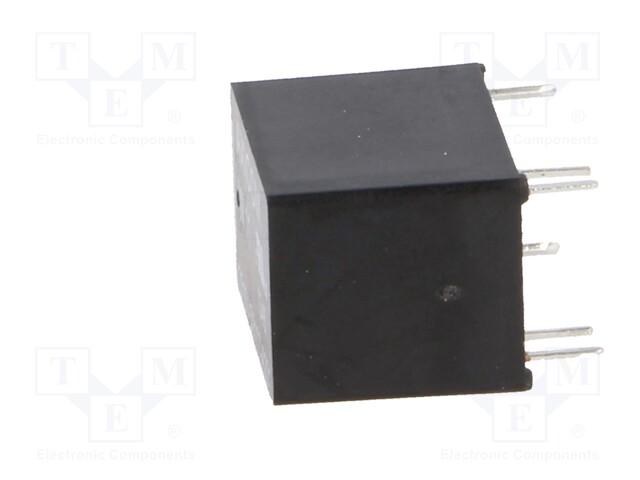

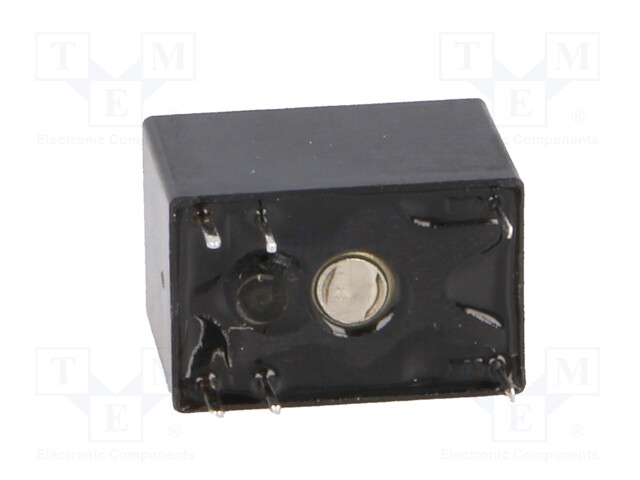

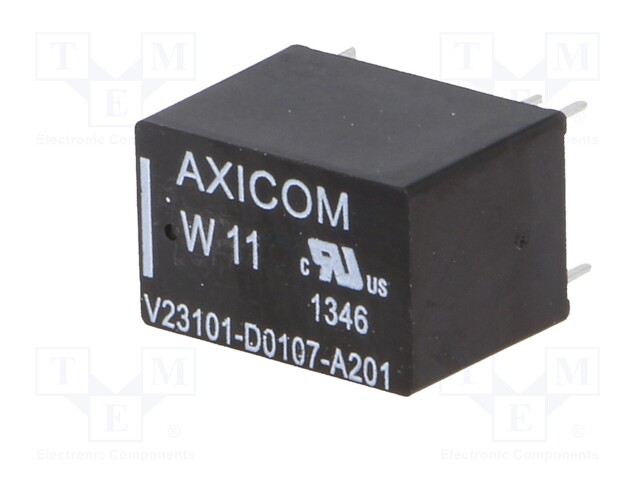

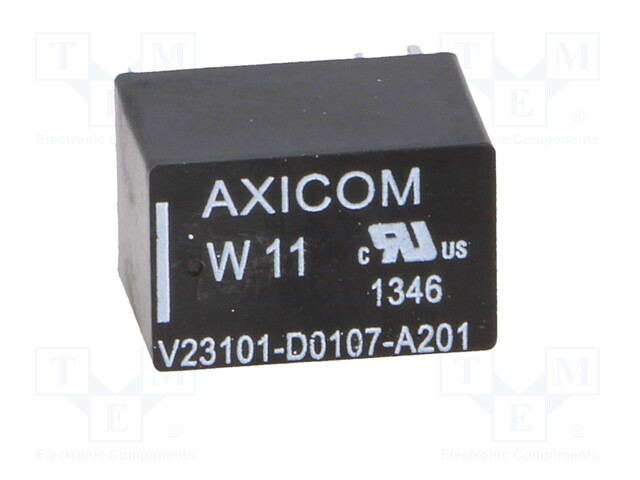

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 1.25A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3-1393779-5
    Manufacturer: TE Connectivity
    Manufacturer code: 3-1393779-5
    • Mounting
    • Operating temperature
    • Contact material
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Coil current

    7.22 € 7.22 € (wo VAT) 7.22 EUR

    7.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 1.25A

    Mounting THT
    Operating temperature -40...70°C
    Contact material AgPd/Au 0,2μm
    Height 11.5mm
    Body dimensions 15.4x11.5x10mm
    Mechanical durability 10000000cycles
    Switched voltage max. 120V DC, max. 125V AC
    Coil resistance 2.8kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    Contact current max. 1.25A
    Relay variant miniature
    Coil voltage max. 56V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 206mW
    Relay series W11
    Coil current 8.57mA
