Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/240VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3-1393222-9
    Manufacturer: TE Connectivity
    Manufacturer code: 3-1393222-9
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    4.65 € 4.65 € (wo VAT) 4.65 EUR

    4.65 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/240VAC; 8A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2.54mm

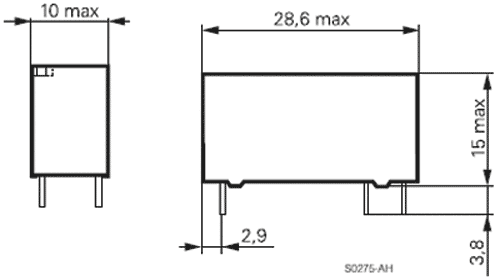

    Body dimensions 28.6x10x15mm
    Switched voltage max. 300V DC, max. 400V AC
    Coil resistance 2.27kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 240V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 254mW
    Relay series V23061
    Operate time 10ms
    Release time 5ms
