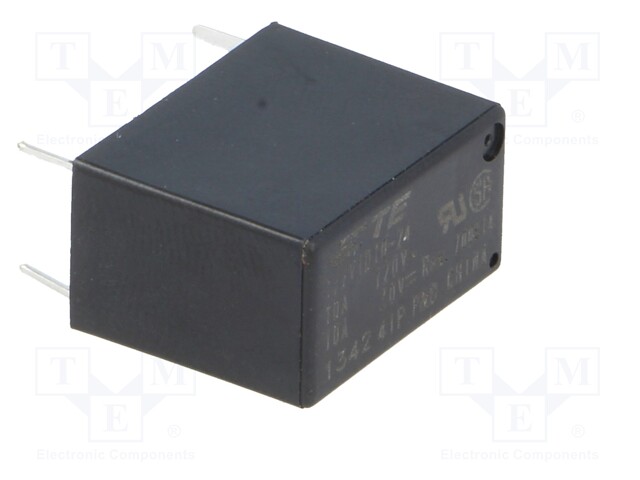

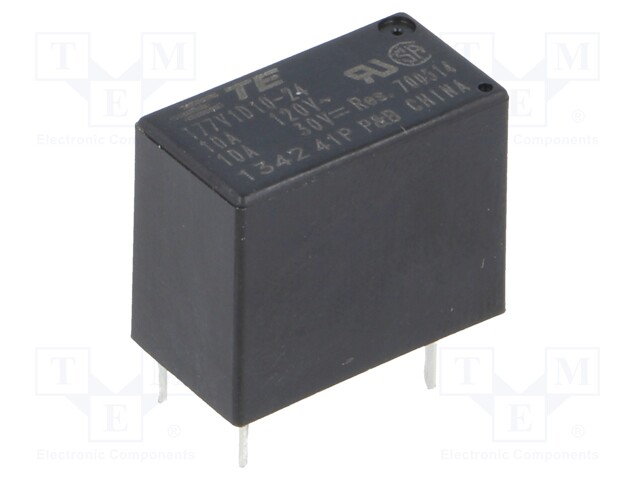

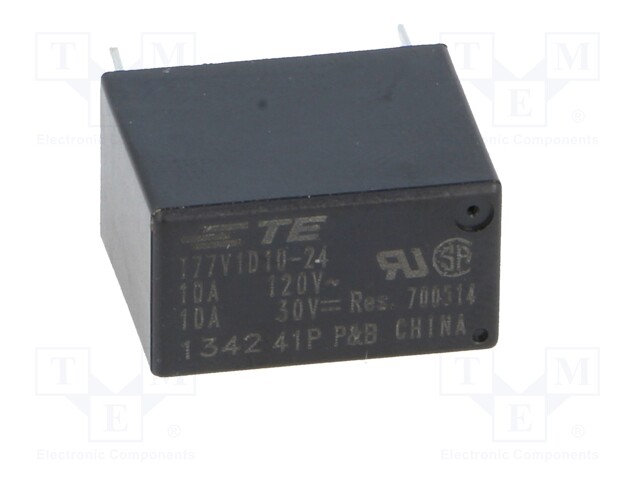

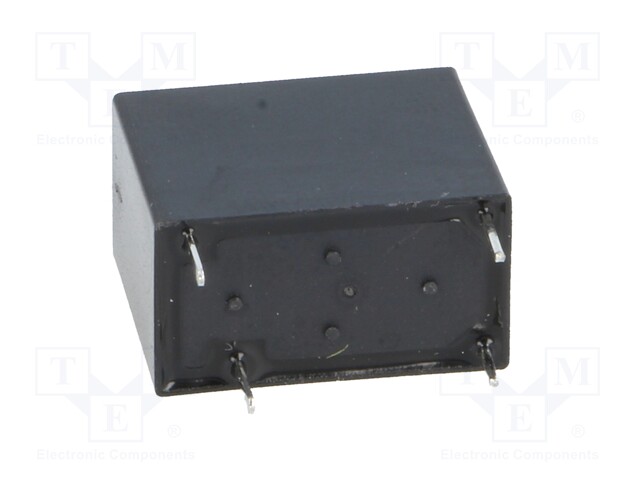

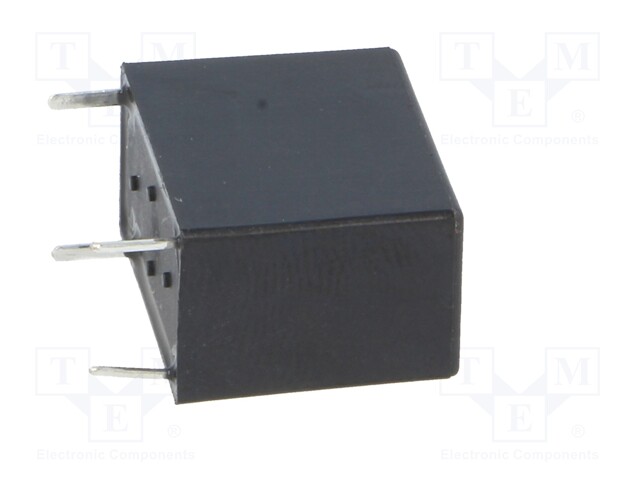

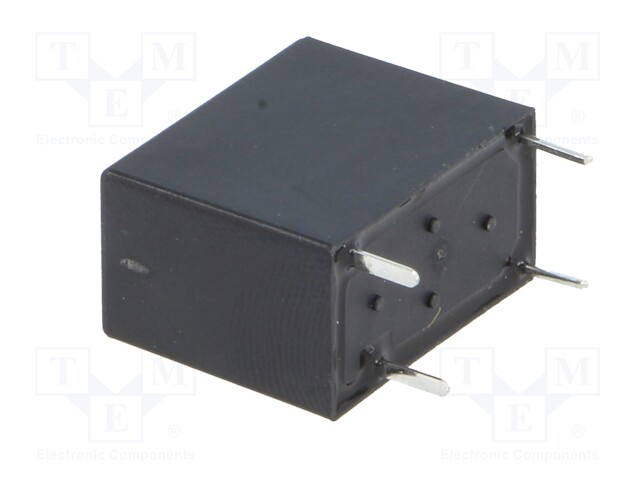

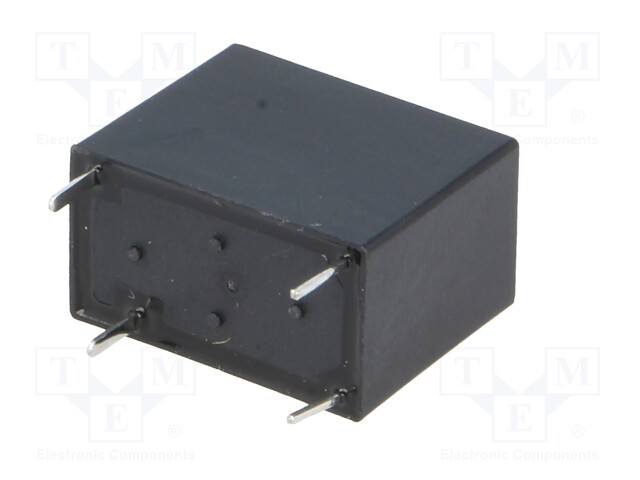

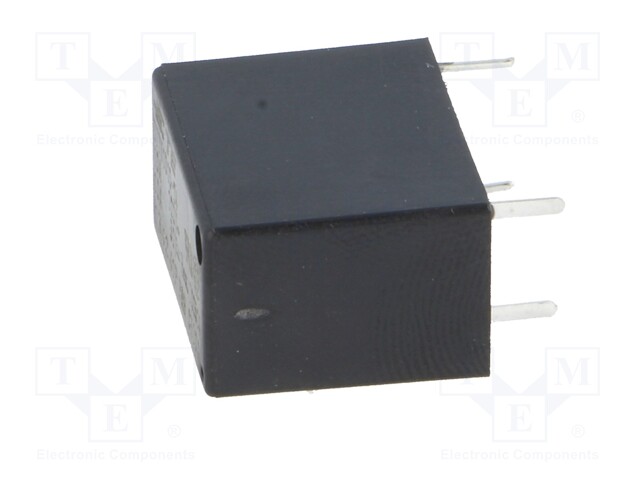

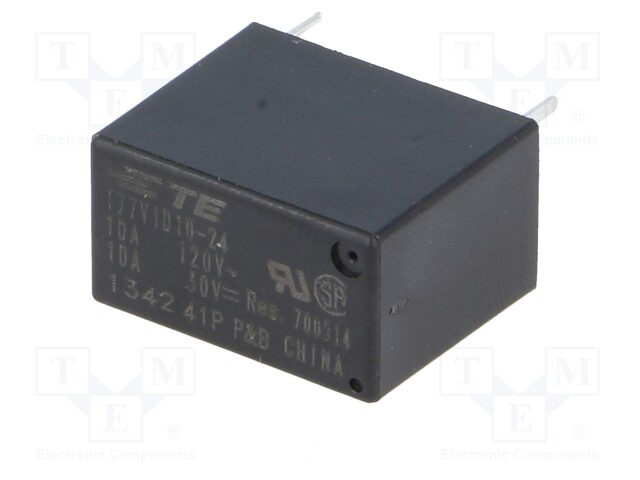

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 10A
Multiples:
1.0
Minimum quantity:
1.0
Product code:
2-1393194-1
Manufacturer: TE Connectivity
Manufacturer code: 2-1393194-1
Product downloads
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A/250VAC; 10A
Mounting | THT |
Operating temperature | -30...85°C |
Contact material | AgCdO |
Height | 14.7mm |
Body dimensions | 18.2x14.7x10.2mm |
Mechanical durability | 10000000cycles |
Switched voltage | max. 30V DC, max. 277V AC |
Coil resistance | 1.28kΩ |
Rated coil voltage | 24V DC |
Contacts configuration | SPST-NO |
AC contacts rating @R | 10A / 250V AC |
Contact current max. | 10A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil voltage min. | 16.8V DC |
Coil power consumption | 450mW |
Relay series | T77 |
Operate time | 10ms |
Release time | 4ms |
