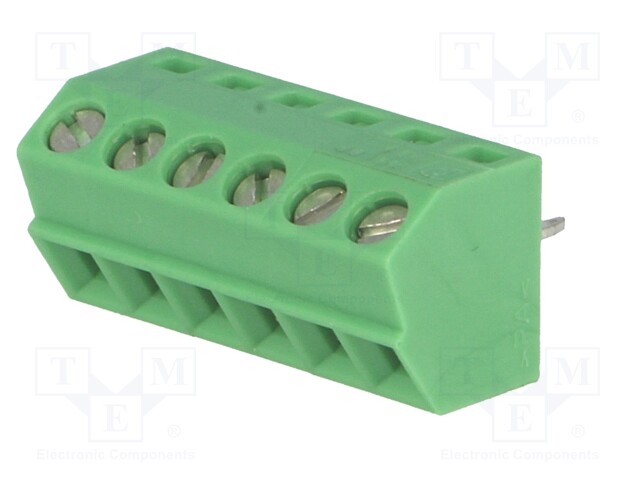

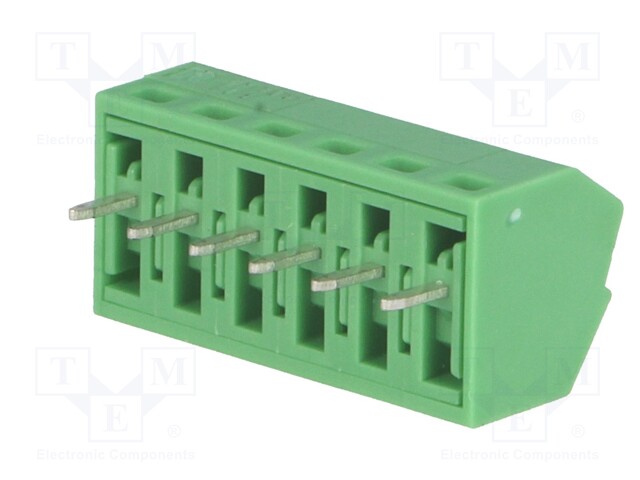

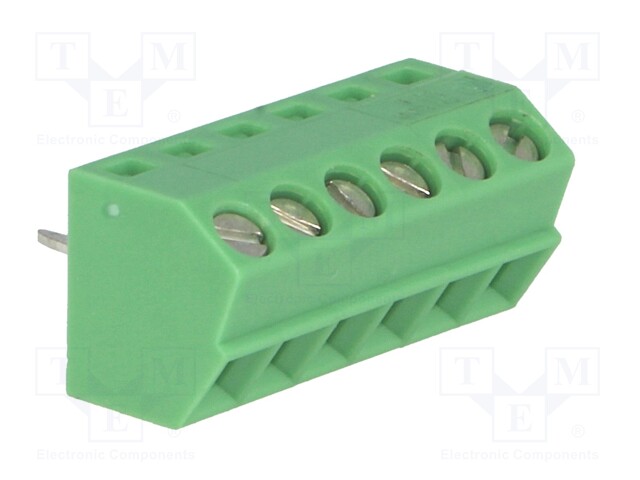

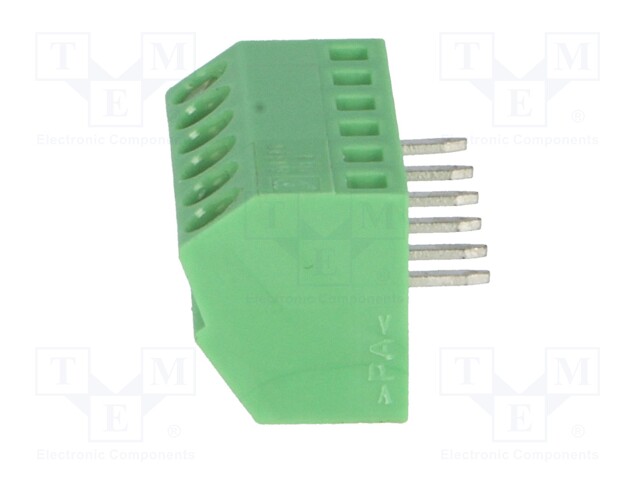

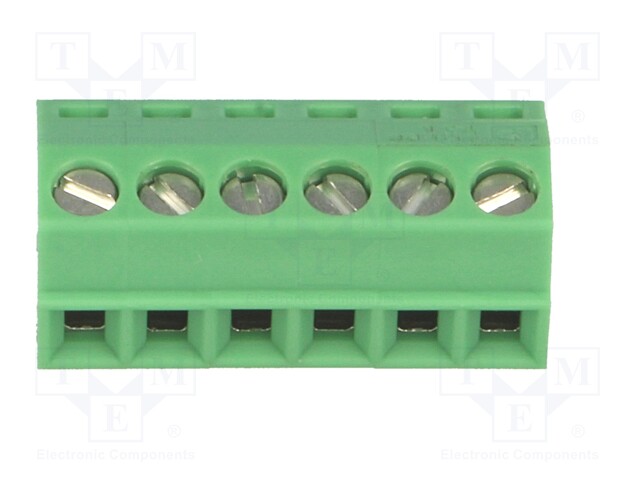

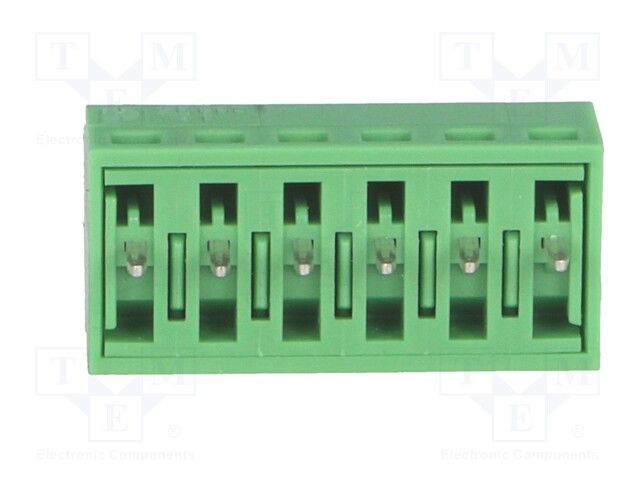

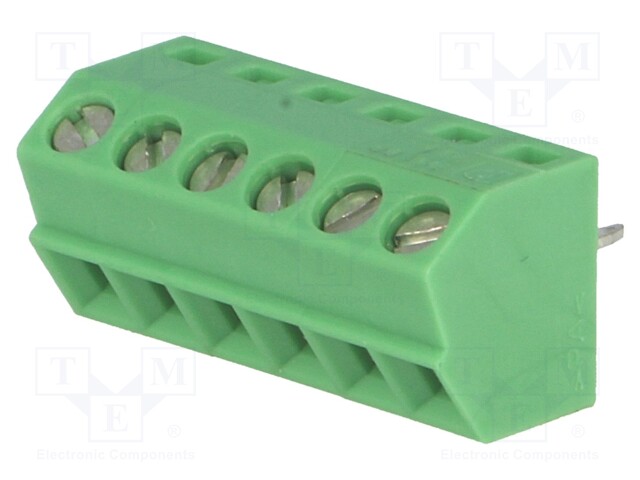

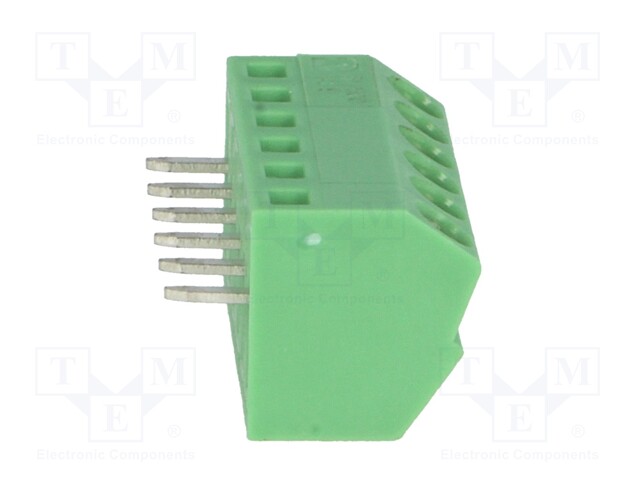

PCB terminal block; angled 55°; 3.5mm; ways: 6; on PCBs; 0.14÷1mm2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1751138
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 1751138
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Depth

    3.65 € 3.65 € (wo VAT) 3.65 EUR

    3.65 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; angled 55°; 3.5mm; ways: 6; on PCBs; 0.14÷1mm2

    Contacts pitch 3.5mm
    Electrical mounting cage clamp, screw terminal, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector PCB terminal block
    Body material polyamide
    Flammability rating UL94V-0
    Length 21.5mm
    Height 9.5mm
    Current rating 10A
    Number of ways 6
    Type of pin configuration 1x6
    Rated voltage 200V
    Conform to the norm CSA, UL, VDE
    Spatial orientation angled 55°
    Depth 10mm
