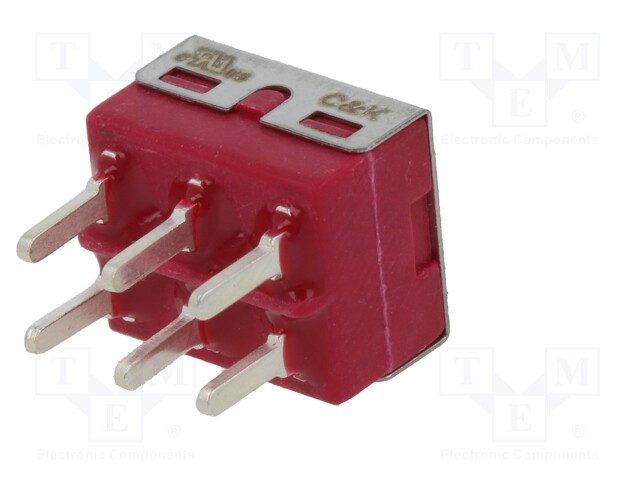

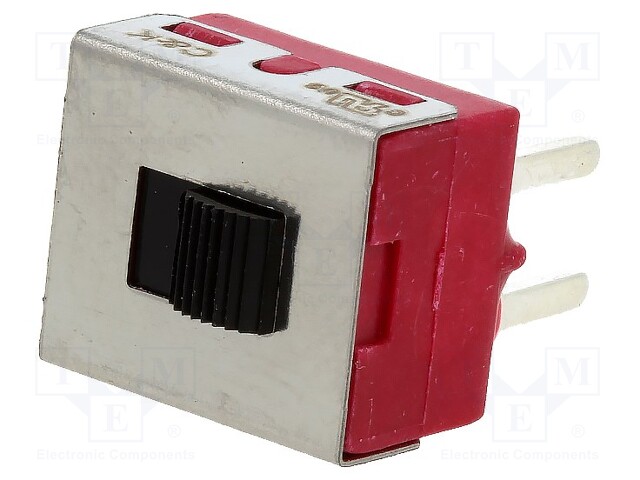

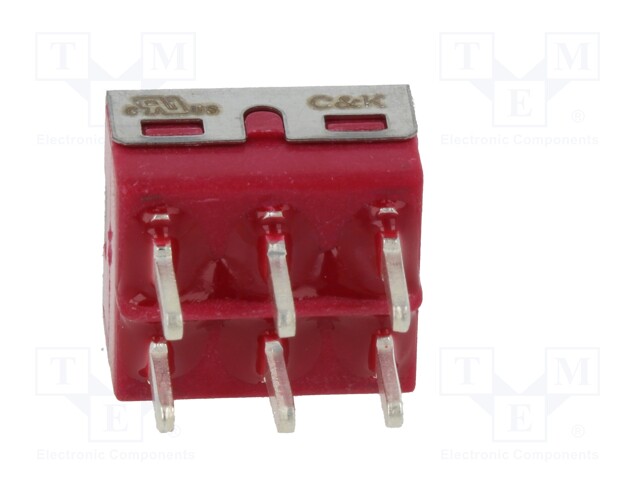

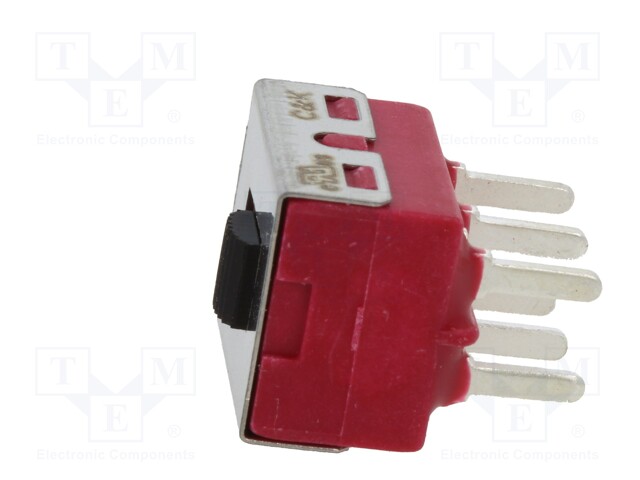

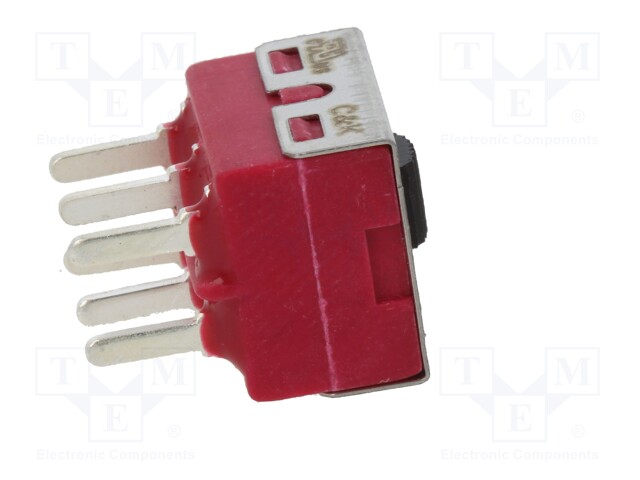

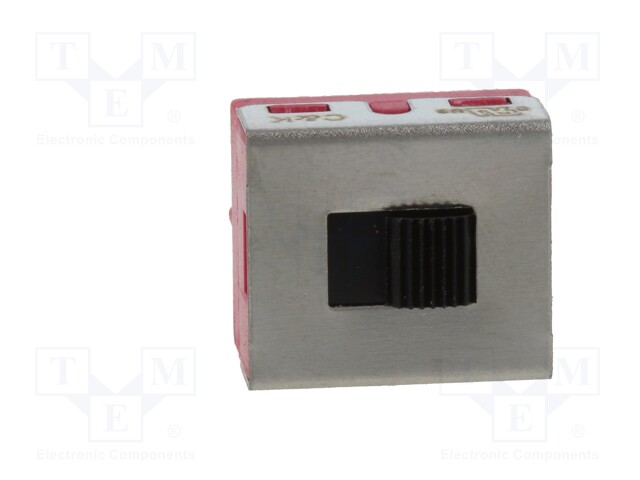

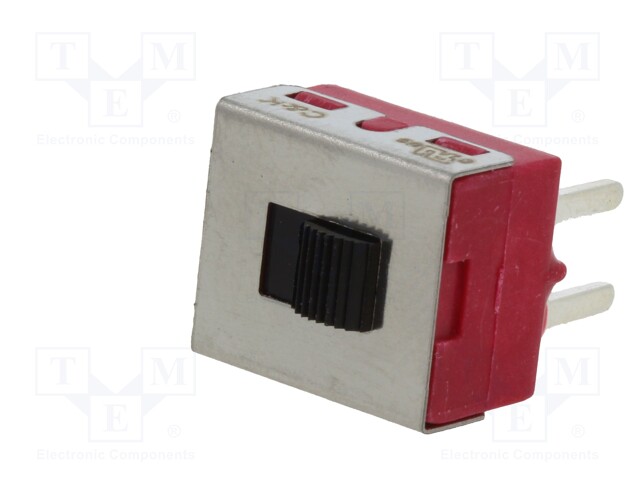

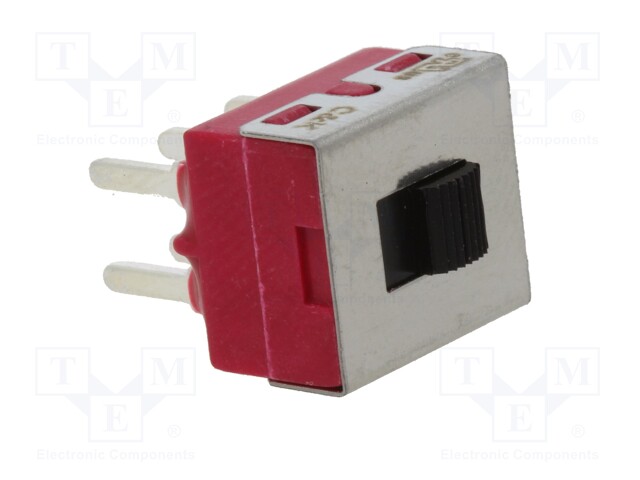

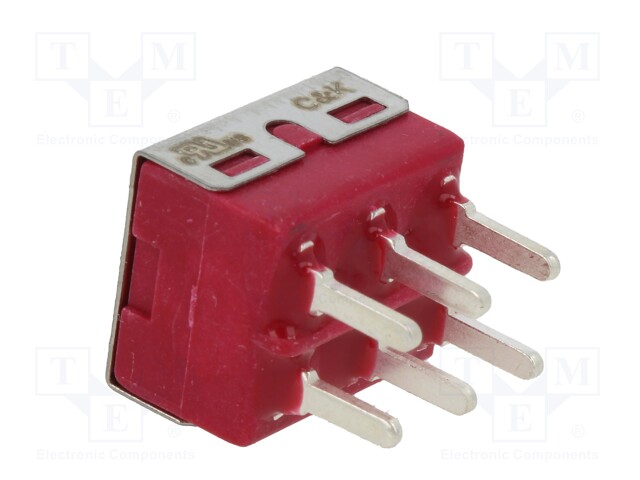

Switch: slide; Pos: 2; DPDT; 6A/120VAC; 6A/28VDC; ON-ON; -30÷65°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1201M2S1CQE2
    Manufacturer: C&K
    Manufacturer code: 1201M2S1CQE2
    • Mounting
    • Operating temperature
    • Type of switch
    • Colour
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Number of terminals
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number

    13.35 € 13.35 € (wo VAT) 13.35 EUR

    13.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; DPDT; 6A/120VAC; 6A/28VDC; ON-ON; -30÷65°C

    Mounting THT
    Operating temperature -30...65°C
    Type of switch slide
    Colour black
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material copper
    Max. contact resistance: 10mΩ
    Terminal pitch 4.7mm
    Body dimensions 12.7x11.43x7.62mm
    Number of terminals 6
    Min. insulation resistance 1GΩ
    Electrical life 40000cycles
    Contacts configuration DPDT
    DC contacts rating @R 6A / 28V DC
    AC contacts rating @R 6A / 120V AC
    Switching method ON-ON
    Stable positions number 2
