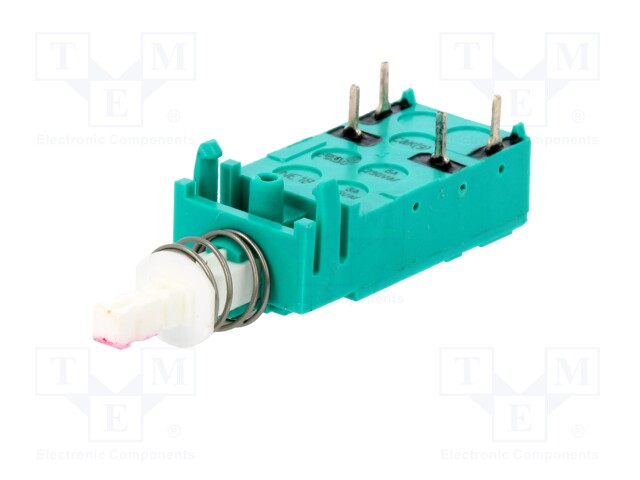

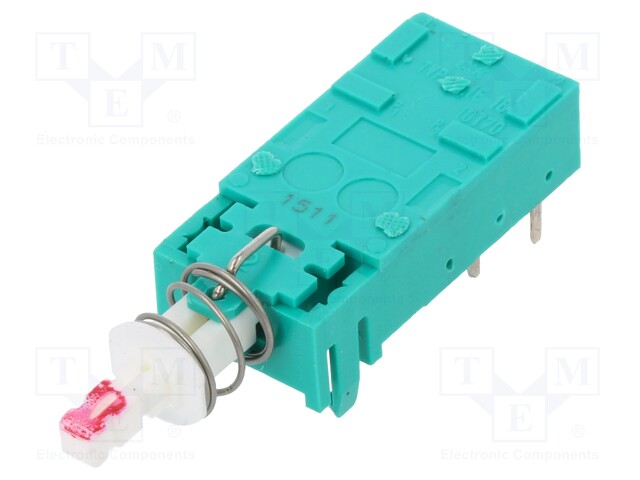

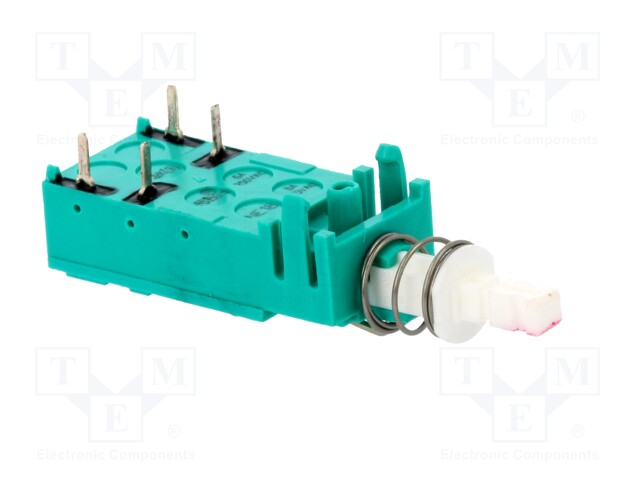

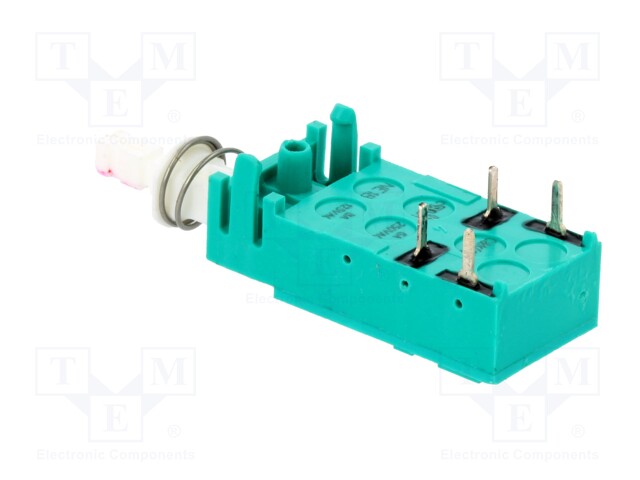

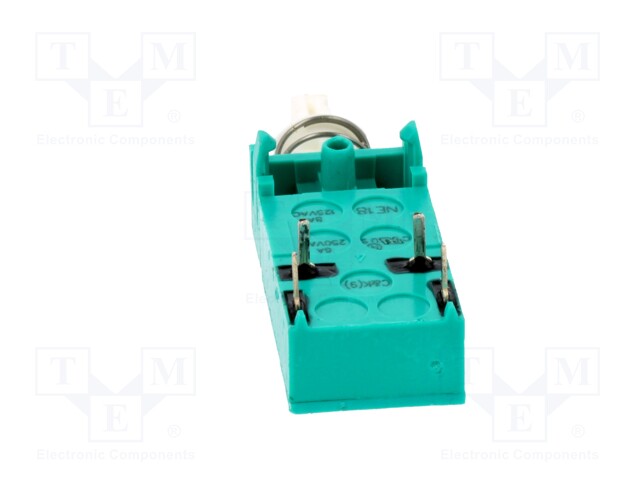

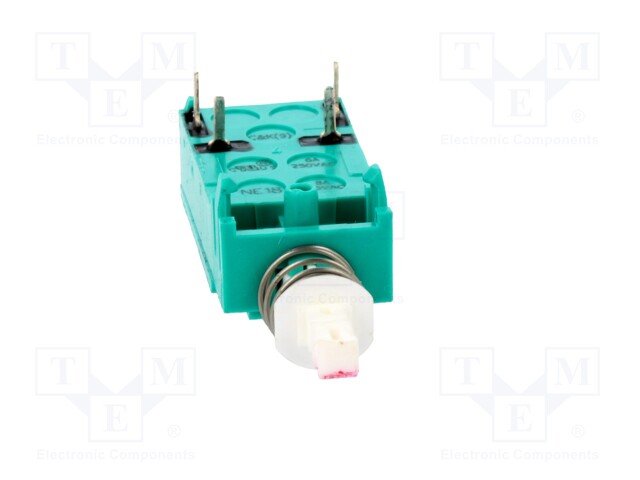

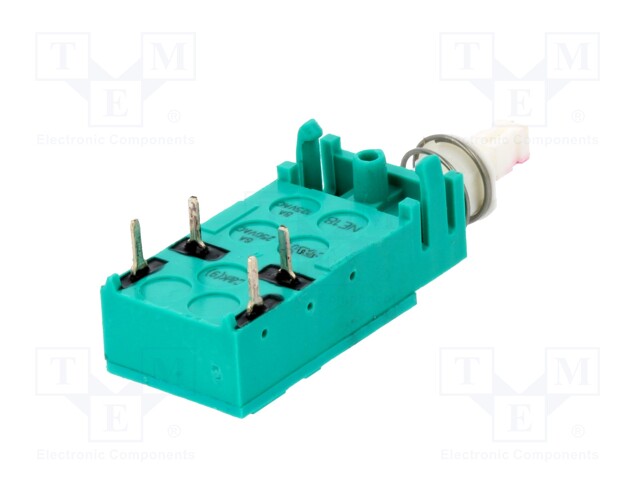

Switch: push-button; Pos: 2; DPST; 6A/250VAC; 0.5A/24VDC; none; 7N

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 104-0101-007
    Manufacturer: C&K
    Manufacturer code: 104-0101-007
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Body material
    • Body colour
    • Body dimensions
    • Quantity in package
    • Switched voltage
    • Switched voltage
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button height
    • Contact current max.

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; DPST; 6A/250VAC; 0.5A/24VDC; none; 7N

    Type of switch push-button
    Number of positions 2
    Leads for PCB, for soldering
    Max. contact resistance: 50mΩ
    Body material polyester
    Body colour green
    Body dimensions 14.8x31.5x8mm
    Quantity in package 50pcs.
    Switched voltage max. 100V DC, max. 250V AC
    Illumination none
    Min. insulation resistance 1TΩ
    Electrical life 10000cycles
    Contacts configuration DPST
    DC contacts rating @R 0.5A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Switching method OFF-ON
    Stable positions number 2
    Operating Force 7N
    Button shape round
    Button height 4.7mm
    Contact current max. 500mA
