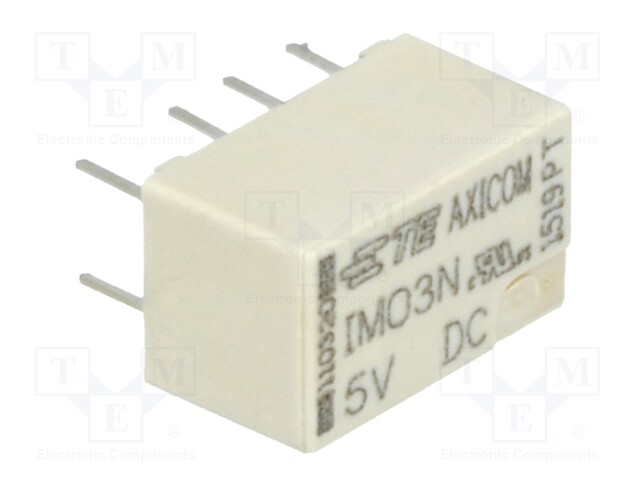

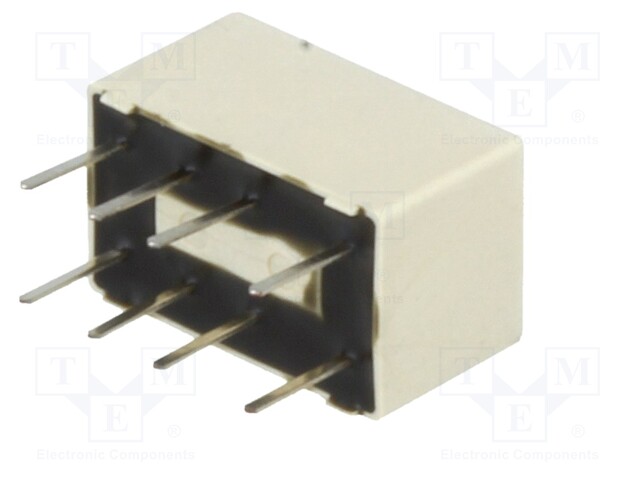

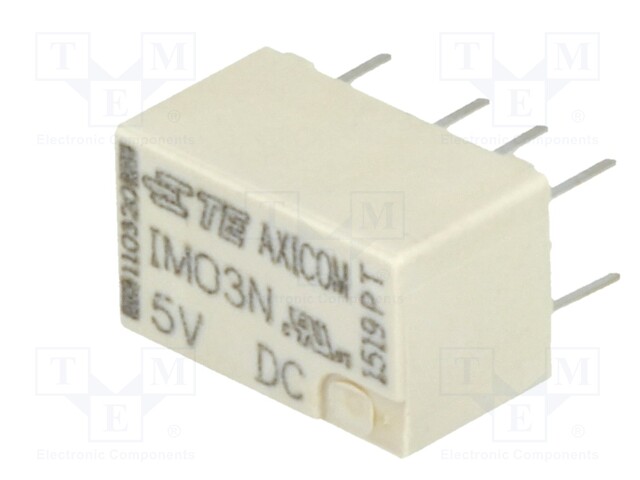

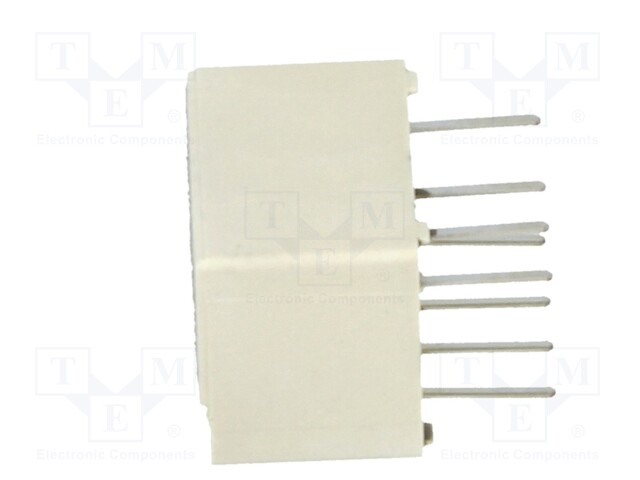

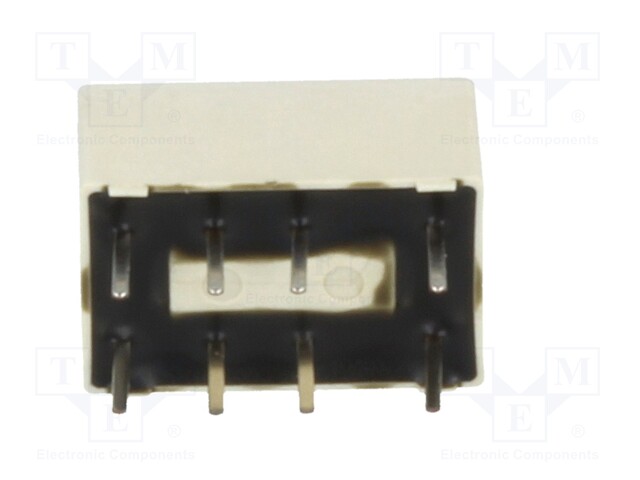

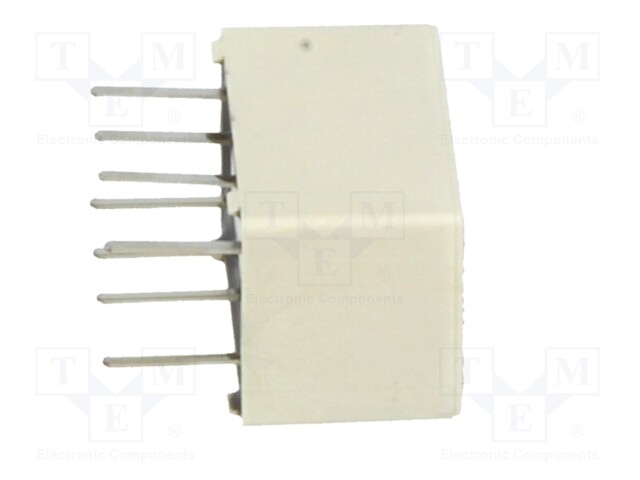

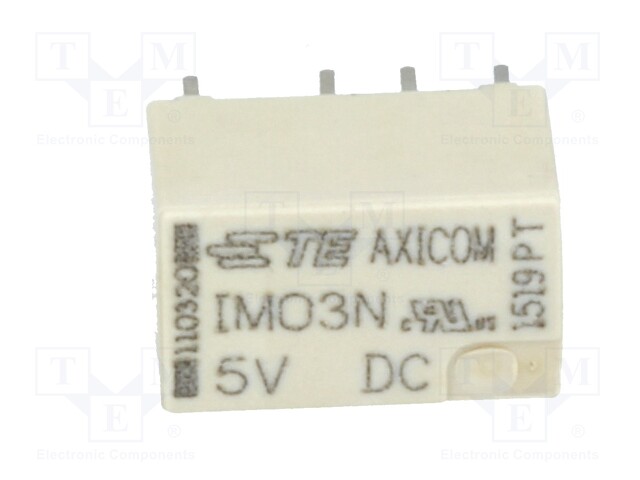

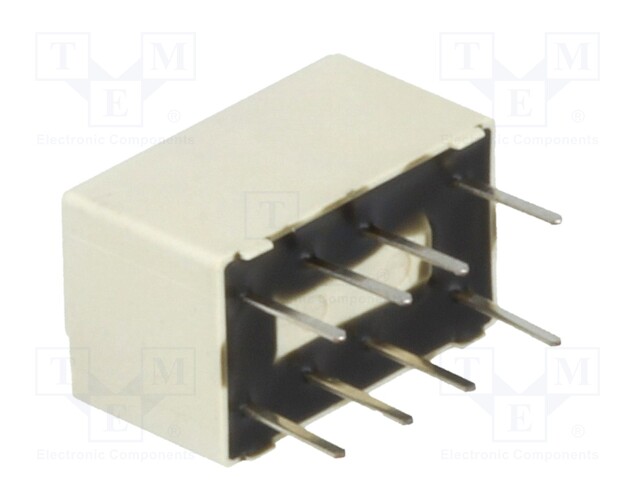

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1462038-3
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1462038-3
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    IP rating IP67
    Contact material PdRu + Au
    Terminal pitch 2.2mm
    Body dimensions 10x5.7x5.8mm
    Mechanical durability 100000000cycles
    Switched voltage max. 220V DC, max. 250V AC
    Switching capacity 60W, 62.5VA
    Coil resistance 178Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 140mW
    Relay series IM
