Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393788-1
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393788-1
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    2.88 € 2.88 € (wo VAT) 2.88 EUR

    2.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 2A/30VDC

    Mounting THT
    Operating temperature -40...85°C
    Terminal pitch 2.54mm

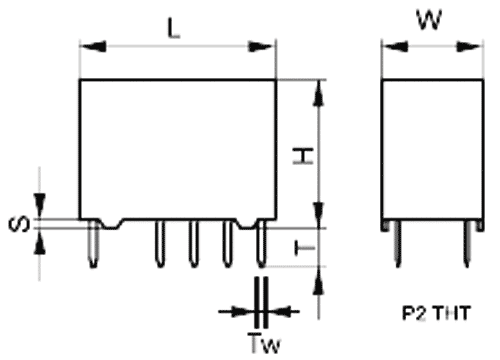

    Body dimensions 14.5x7.2x9.8mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 1029Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Coil voltage max. 26.15V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 140mW
    Relay series P2
