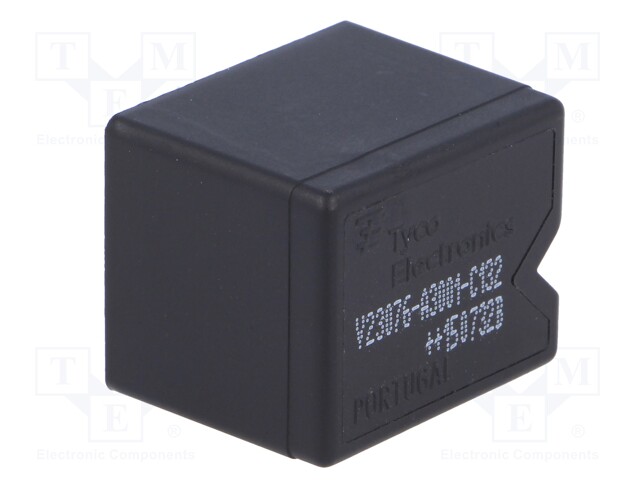

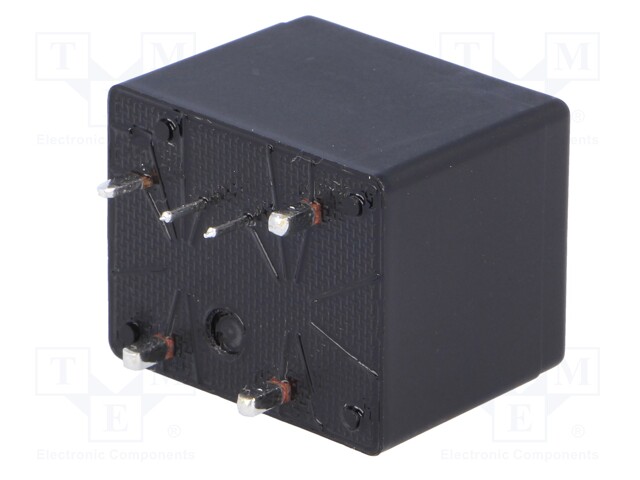

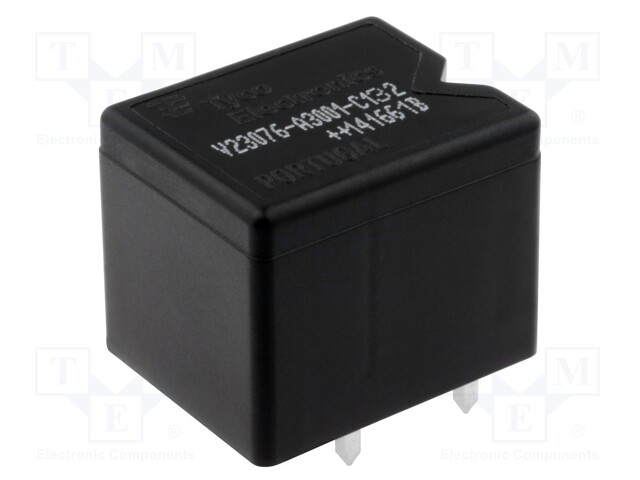

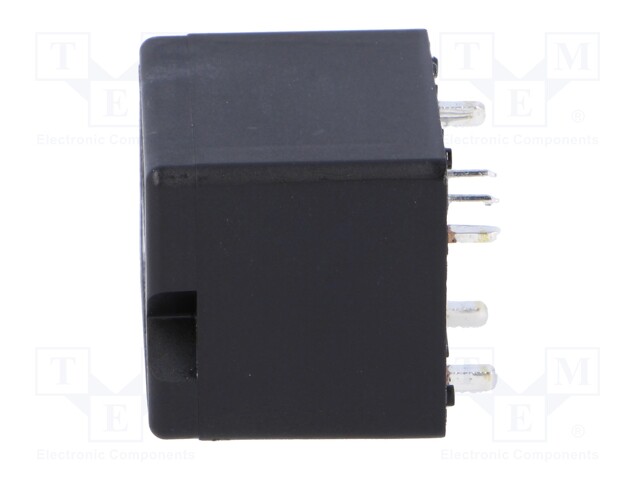

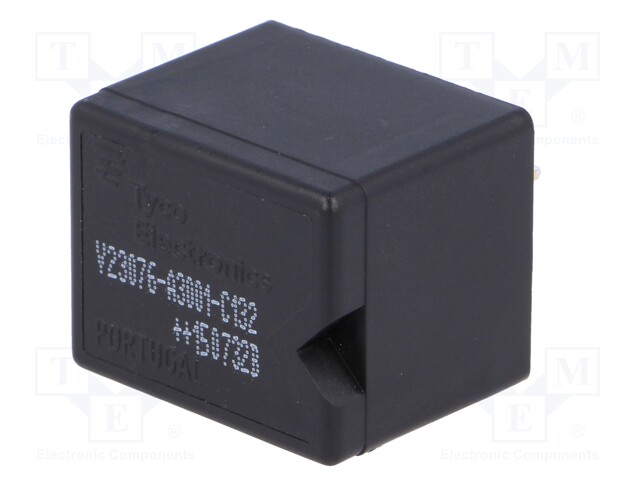

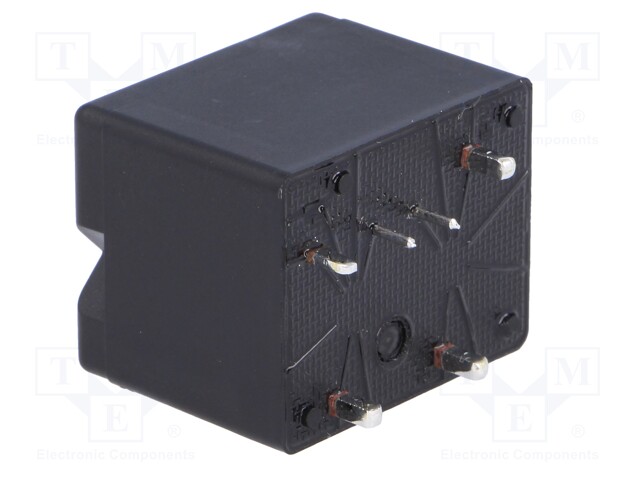

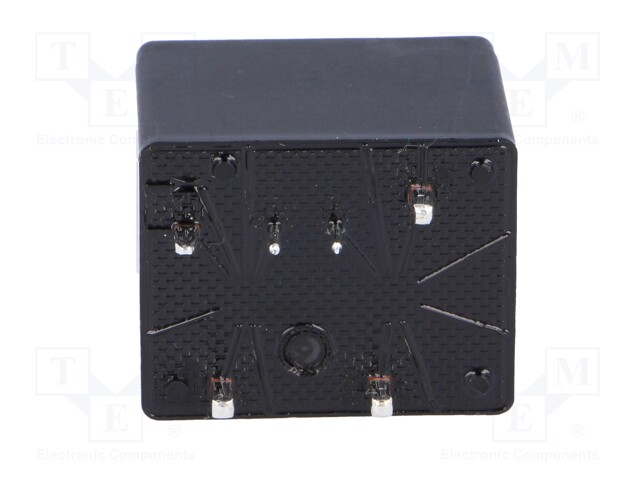

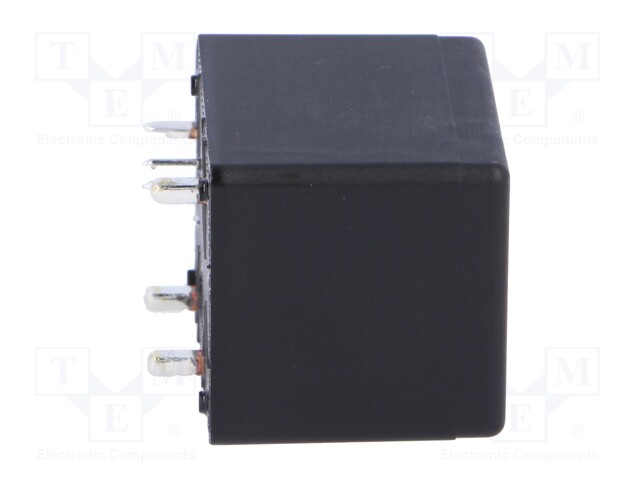

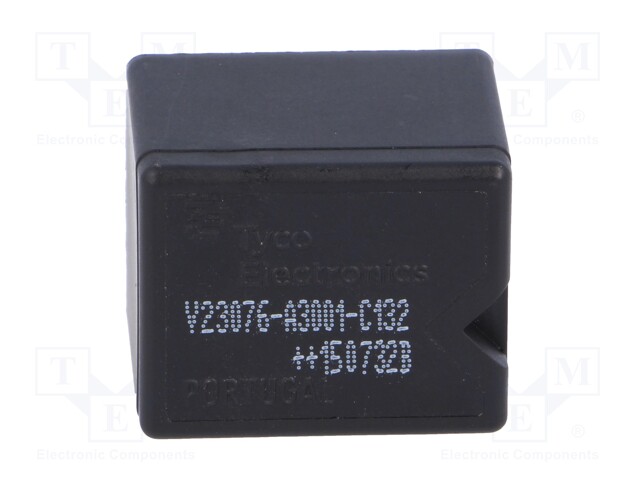

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 45A; automotive

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393277-4
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393277-4
    • Mounting
    • Operating temperature
    • Contact material
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Coil current

    7.32 € 7.32 € (wo VAT) 7.32 EUR

    7.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 45A; automotive

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgNi
    Height 21.2mm
    Body dimensions 26.1x21.2x21.1mm
    Mechanical durability 10000000cycles
    Switched voltage max. 150V AC, max. 150V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact current max. 45A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 6.9V DC
    Coil power consumption 1.6W
    Relay series K
    Coil current 133.3mA
