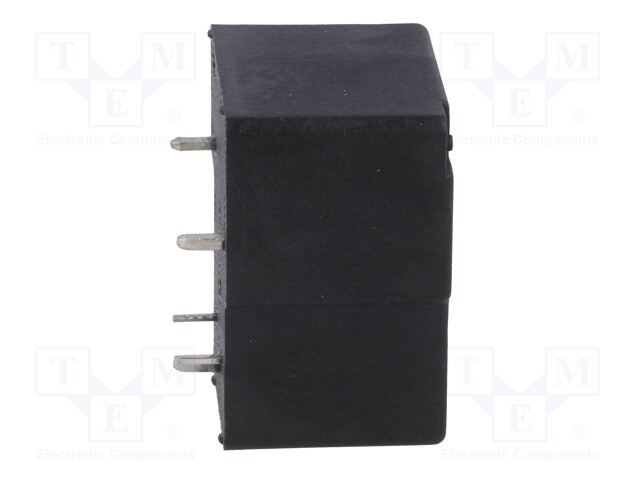

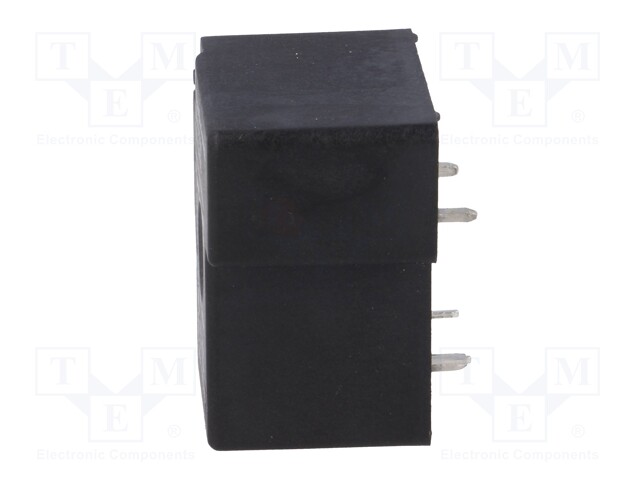

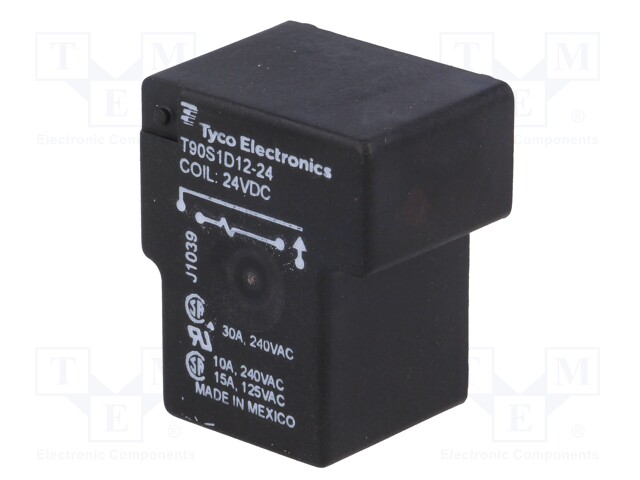

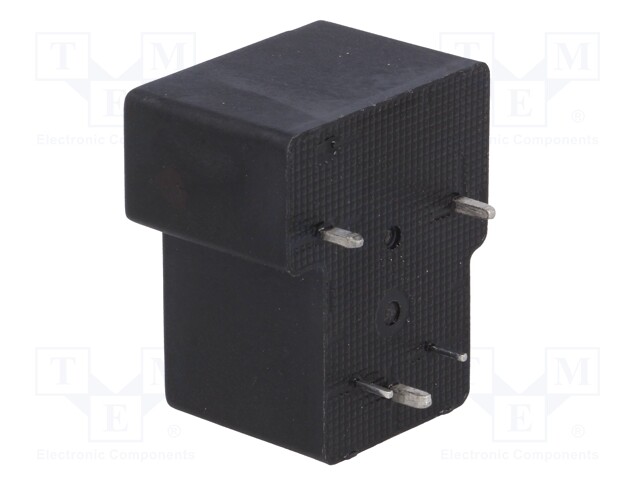

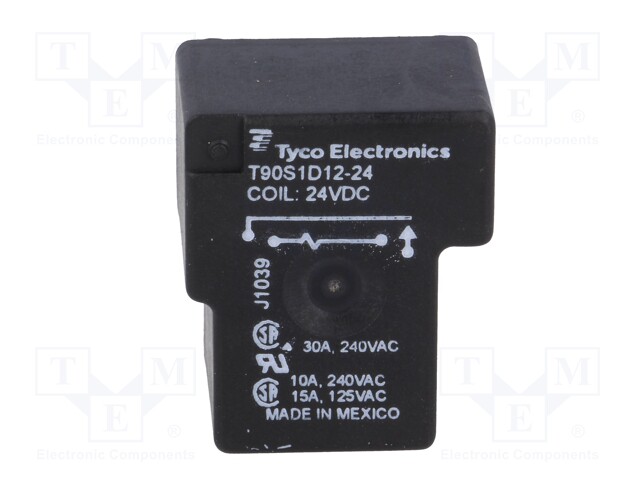

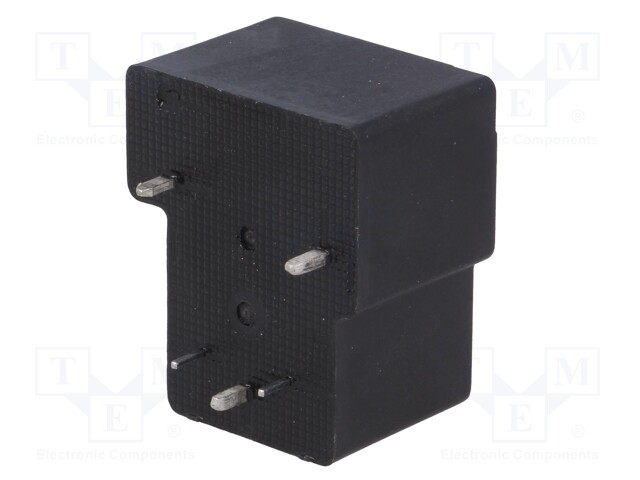

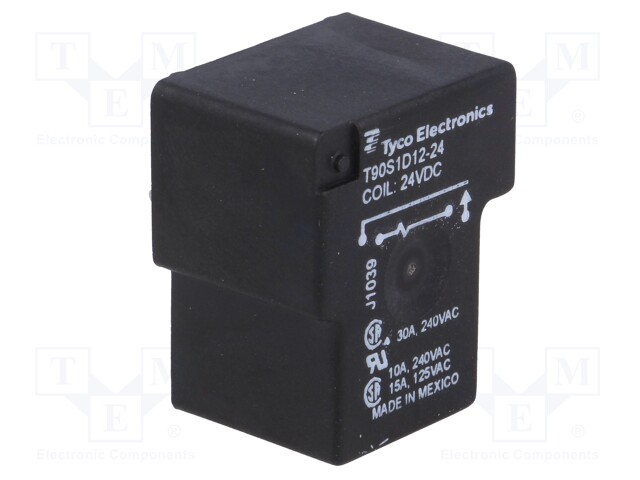

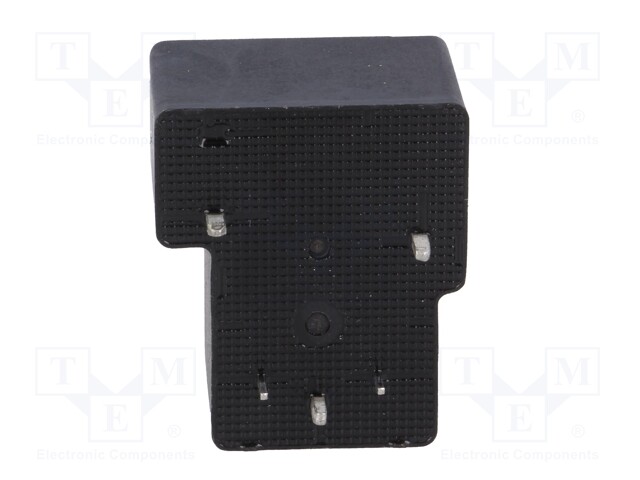

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; Series: T90

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393209-6
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393209-6
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 30A; Series: T90

    Mounting PCB
    Operating temperature -55...85°C
    Leads for PCB
    Contact material AgCdO
    Body dimensions 30.5x24.1x16.9mm
    Mechanical durability 10000000cycles
    Coil resistance 660Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 75mΩ
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 870mW
    Relay series T90
