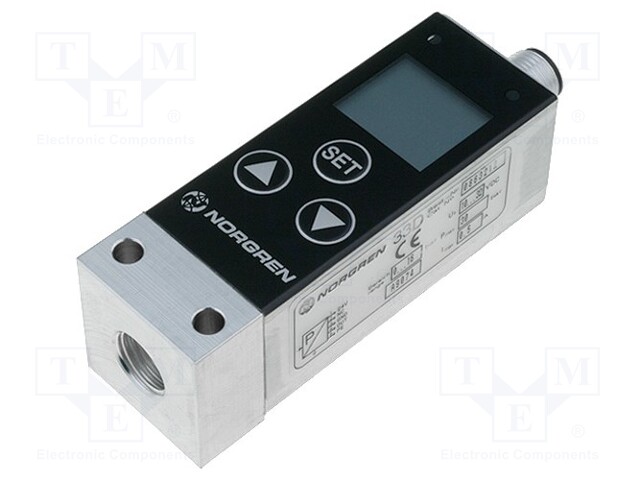

Module: transducer; pressure; 0÷16 bar; OUT: 1; OUT 1: PNP; 10÷32VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 0863212000000000
    Manufacturer: NORGREN HERION
    Manufacturer code: 0863212000000000
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Kind of display used
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Measurement accuracy
    • Number of outputs
    • Electrical connection
    • Electrical connection
    • Controlled parameter
    • Kind of output 1
    • The programming method
    • Regulation for output 1

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: transducer; pressure; 0÷16 bar; OUT: 1; OUT 1: PNP; 10÷32VDC

    Mounting G 1/4"
    Supply voltage 10...32V DC
    Operating temperature -10...60°C
    IP rating IP65
    Type of module transducer
    Series 33D
    Kind of display used LCD
    Additional functions designed for aggressive, neutral, non-flammable gases and water, LED status indicator, Programmable measurement units - bar, psi, MPa, switch ON and OFF thresholds are adjustable independently 0-100% of the range
    Measurement accuracy 0.2%
    Number of outputs 1
    Electrical connection 4pin, M12 x 1
    Controlled parameter pressure
    Kind of output 1 PNP
    The programming method foil keypad
    Regulation for output 1 ON-OFF
