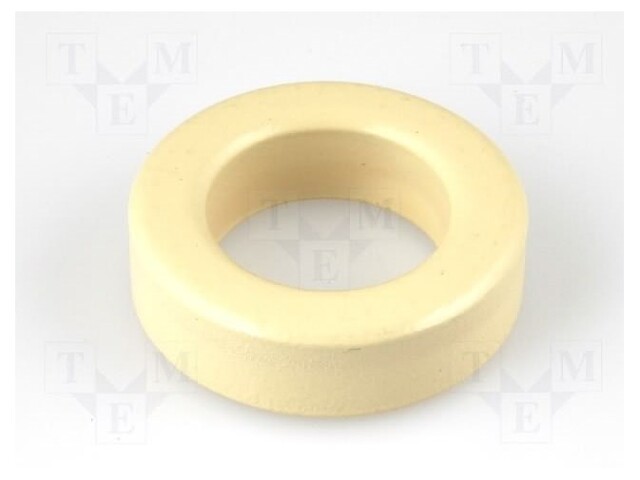

Ferrite: toroidal; L: 13mm; Øint: 25.9mm; Øout: 42.1mm; 6425nH
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TX42/26/13-3E25
Tootja: FERROXCUBE
Tootja tootekood: TX42/26/13-3E25
Product downloads
Spetsifikatsioon tootele Ferrite: toroidal; L: 13mm; Øint: 25.9mm; Øout: 42.1mm; 6425nH
Height | 13mm |
Internal diameter | 25.9mm |
Outside diameter | 42.1mm |
Type of ferrite | toroidal |
Ferrite application | impulse transformers, RFI filters, wideband transformers |
Core material | 3E25 |
Inductance factor Al | 6.425µH |
Ferrite features | rounded edges eliminate risk of wire damage |
Effective core volume (Ve) | 9860mm<sup>3</sup> |
Effective core cross-section (Ae) | 95.8mm<sup>2</sup> |
